90 Sun SPARC Enterprise T5140 and T5240 Servers Installation Guide • December 2010

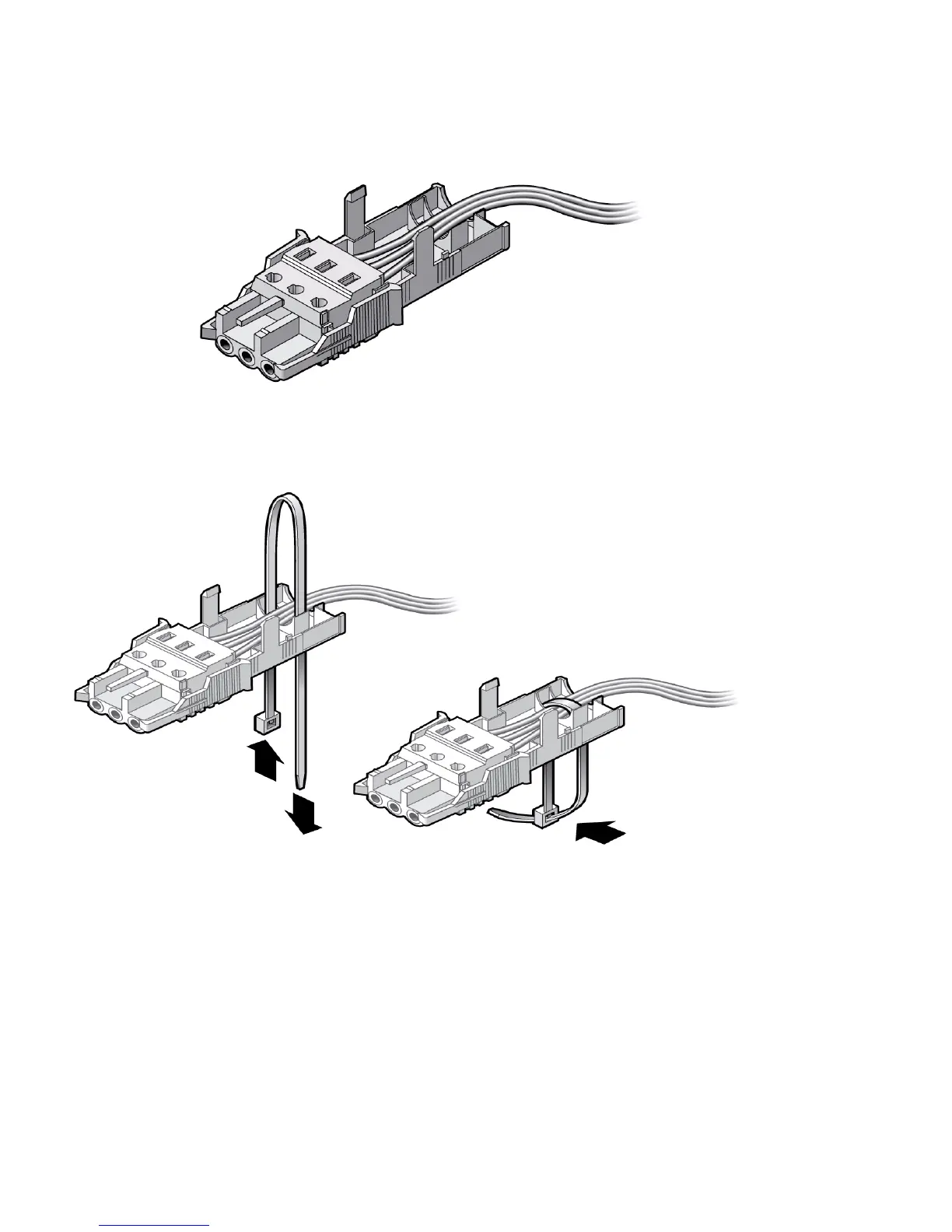

FIGURE: Routing the Wires Through the Strain Relief Housing
3. Insert a tie wrap into the bottom portion of the strain relief housing.
FIGURE: Securing the Wires to the Strain Relief Housing
4. Loop the tie wrap over the wires and back out of the strain relief housing, and
tightening the tie wrap to secure the wires to the strain relief housing.
5. Lower the top portion of the strain relief housing so that the three prongs on the
top portion insert into the openings in the DC input plug.
Push the top and bottom portions of the strain relief housing together until they
snap into place.
