36 Sun SPARC Enterprise T5140 and T5240 Servers Installation Guide • December 2010
● Connect a Category 5 cable from the NET MGT network management port to
your network switch or hub.

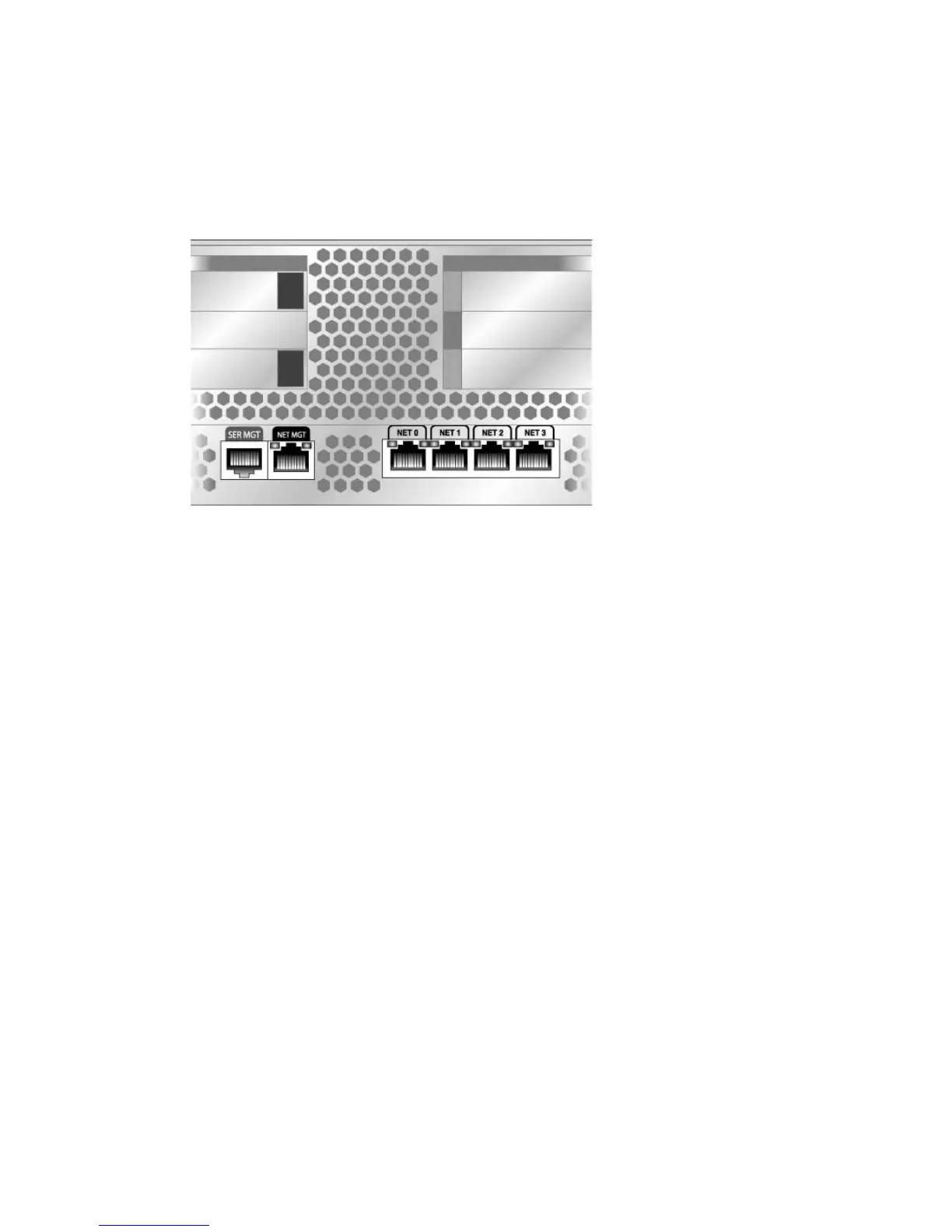

FIGURE: Service Processor Network Management Port – Rear Panel
Related Information
■ “Connect the Service Processor Serial Management Port” on page 35
■ “Connect the Ethernet Network Cables” on page 37
▼ Connect the Ethernet Network Cables
1. Connect a Category 5 cable from your network switch or hub to Ethernet Port 0
(NET0) on the rear of the chassis.
NET0 is the farthest left port in the 4-port network cluster.
2. Connect Category 5 cables from your network switch or hub to the remaining
Ethernet ports (NET1, NET2, NET3), as needed.
