Preparing for Installation 13

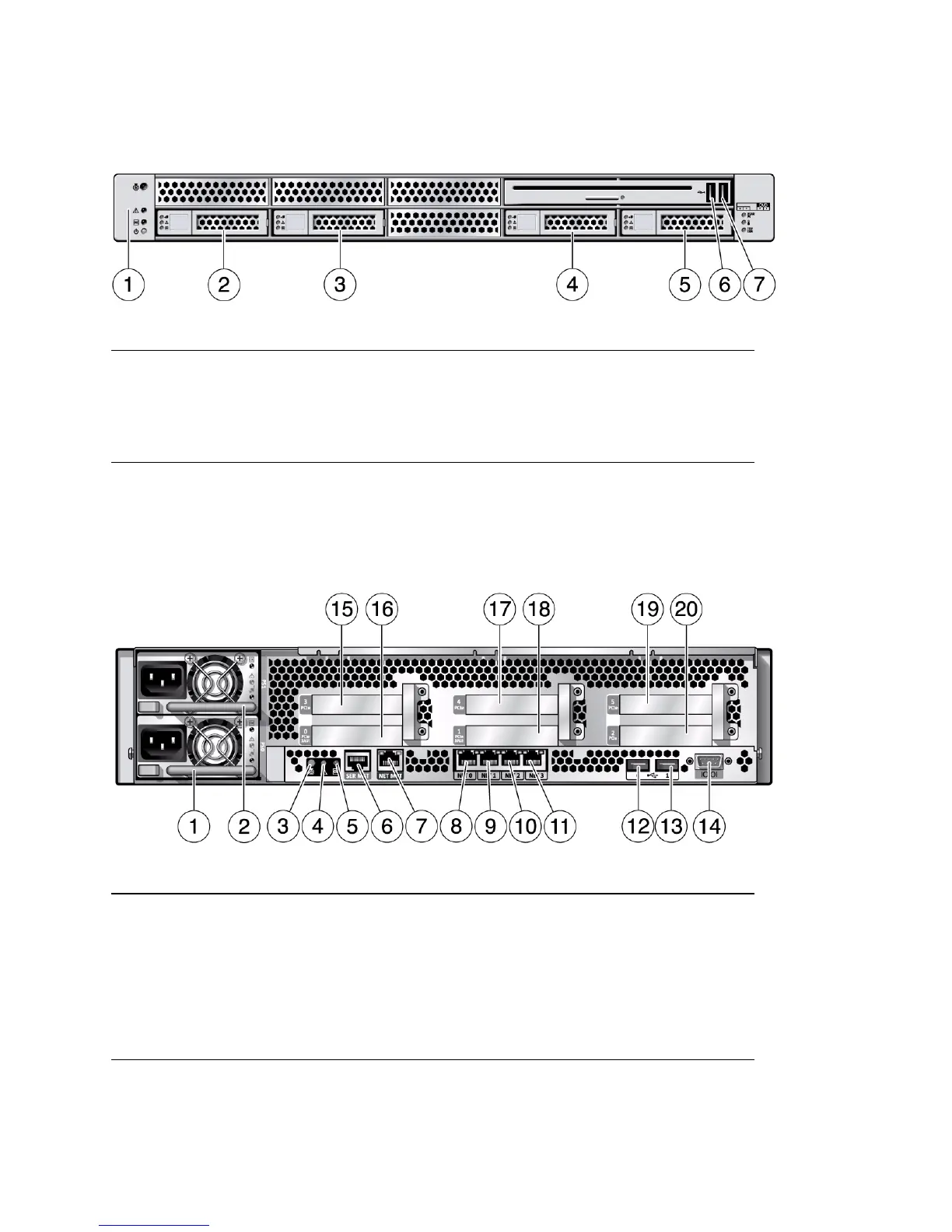

FIGURE: Front Panel USB Ports on the Sun SPARC Enterprise T5140 Server
See the figures below for the locations of the ports on the Sun SPARC Enterprise
T5240 server.
FIGURE: Rear Panel Cable Connectors and LEDs on the Sun SPARC Enterprise T5240 Server
Figure Legend
1 System status indicators: Top to bottom: Locator LED button, Service
Required LED, Power OK LED, and Power button
5 Hard drive HDD3
2 Hard drive HDD0 6 USB port 2
3 Hard drive HDD1 7 USB port 3
4 Hard drive HDD2
Figure Legend
1 Power supply 0 11 Gbit Enet port NET3
2 Power supply 1 12 USB port 0
3 Locator LED button 13 USB port 1
4 Service Required LED 14 TTYA serial port
5 PowerOKLED 15 PCIe slot 3
6 Service processor serial management port 16 PCIe or XAUI slot 0
7 Service processor network management port 17 PCIe slot 4
