20 Sun SPARC Enterprise T5140 and T5240 Servers Installation Guide • December 2010
Note – The rackmounting kit is the same for both 1U and 2U servers. It contains two
slide rail assemblies, which can be installed on either the right or left side of the rack.
■ “Install the Slide Rail Assemblies” on page 20
■ “Insert and Lock the Server in the Rack” on page 26
▼ Install the Slide Rail Assemblies
1. Pull both mounting brackets completely out of their respective slide rails.
a. Simultaneously press and hold the upper and lower lock buttons of the slide
rail lock.

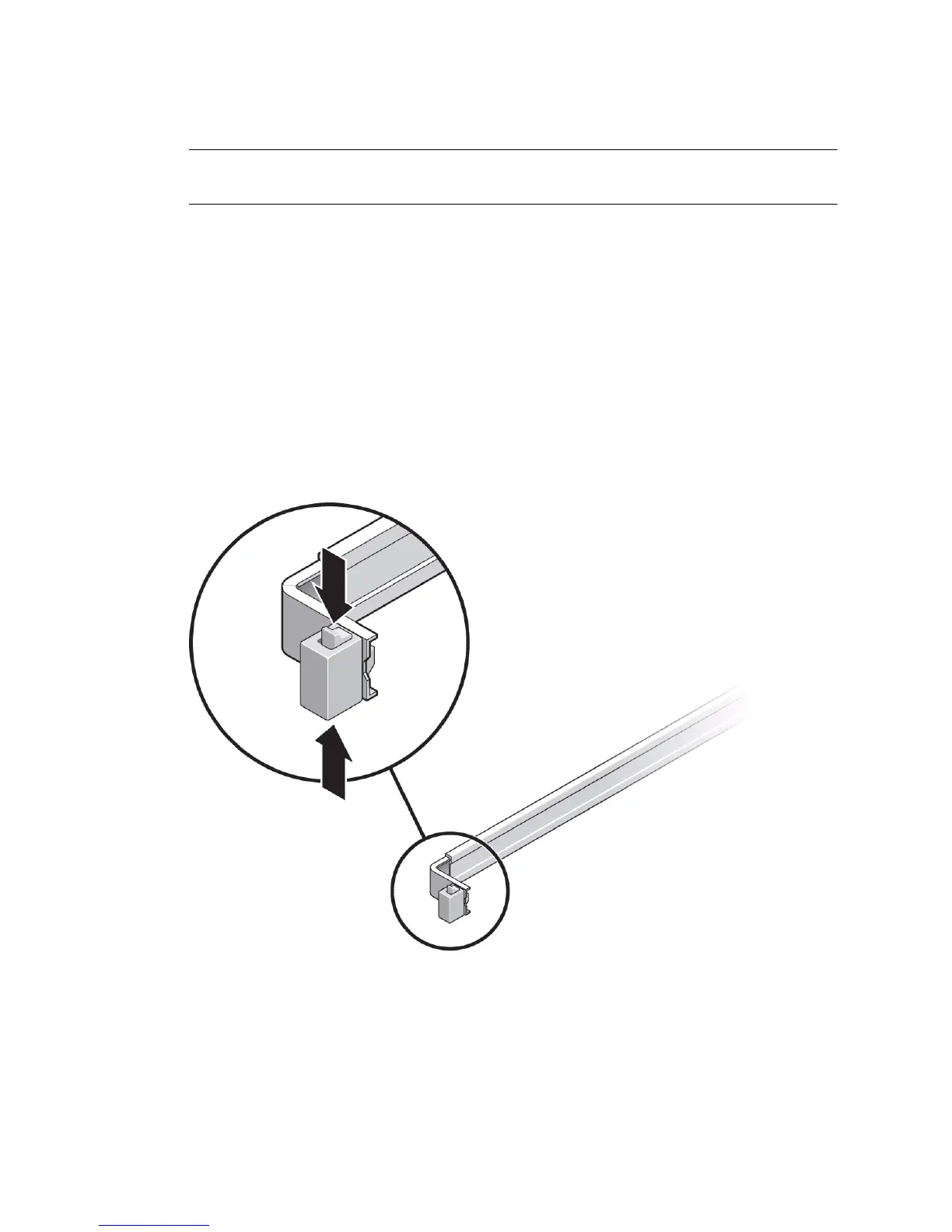

FIGURE: Unlocking the Slide Rail Assembly (Either Server)
b. Pull the mounting bracket out until it locks in the extended position.
c. Slide the mounting bracket release button, then slide the mounting bracket
out of the slide rail.
