22 Sun SPARC Enterprise T5140 and T5240 Servers Installation Guide • December 2010

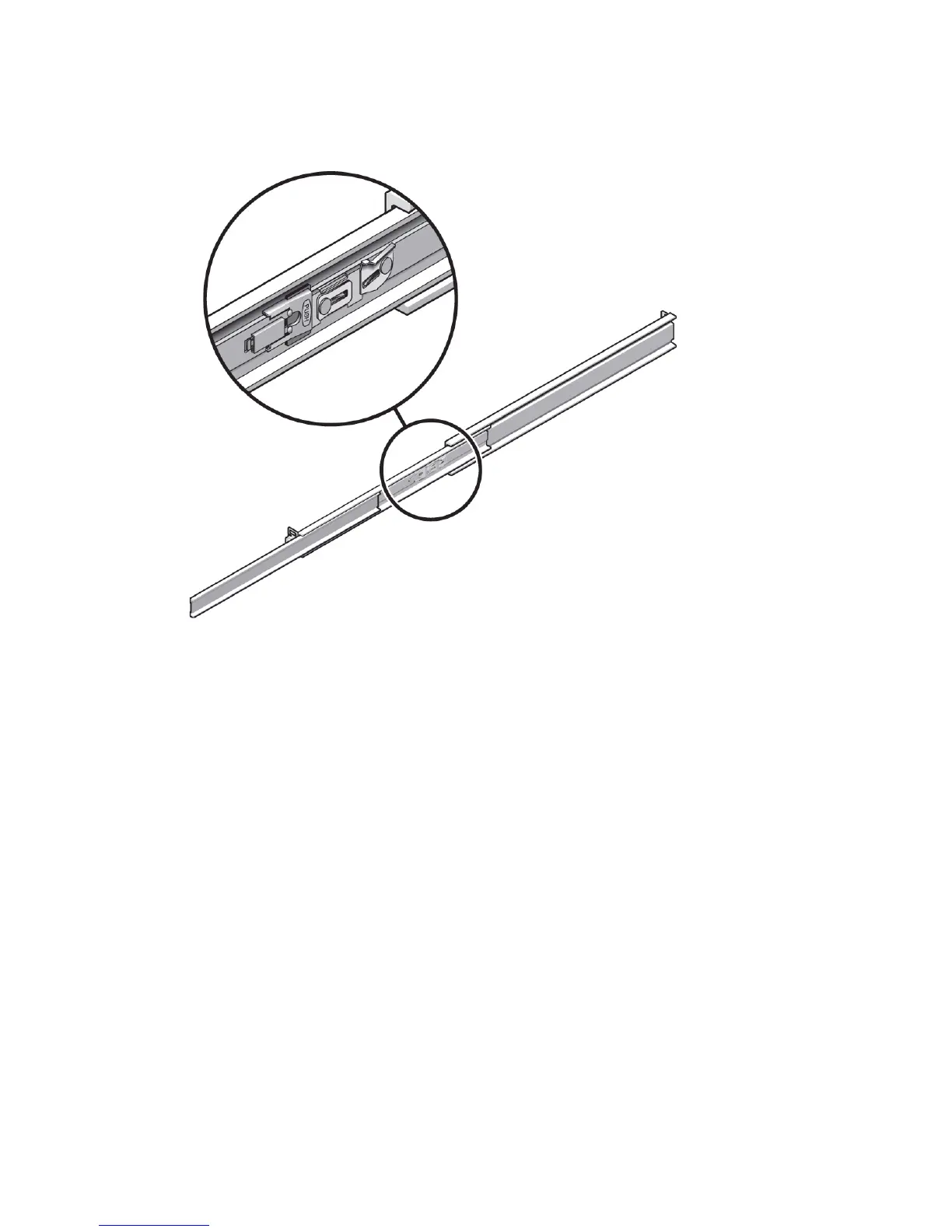

FIGURE: Unlocking the Slide Rail Middle Section (Either Server)
2. Attach a mounting bracket to the right side of the chassis.
a. Position the mounting bracket against the chassis. Ensure that the slide rail
lock is at the front and the three keyed openings on the mounting bracket are
aligned with the three locating pins on the side of the chassis.
