Member. This extension attaches to the right mounting bracket. The larger
extension is called the CMA Connector for Outer Member, and attaches to the
right sliding rail.

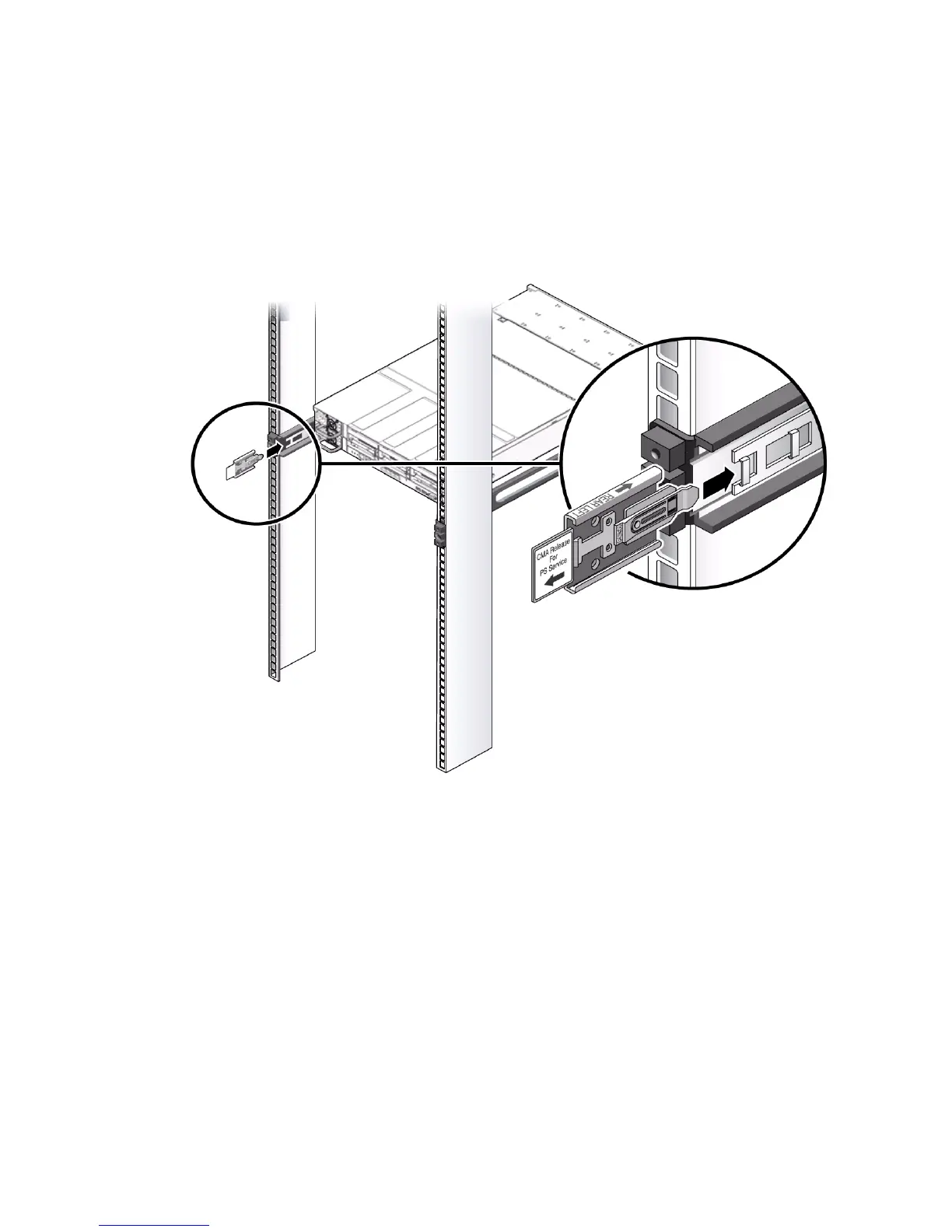

FIGURE: Inserting the CMA Rail Extension Into the Rear of the Left Slide Rail (Either
Server)
3. Insert the smaller extension into the clip located at the end of the mounting
bracket.
Slide the smaller extension into the square hole on the middle-in-width of the clip
that is located at the end of the mounting bracket.
