30 Sun SPARC Enterprise T5140 and T5240 Servers Installation Guide • December 2010

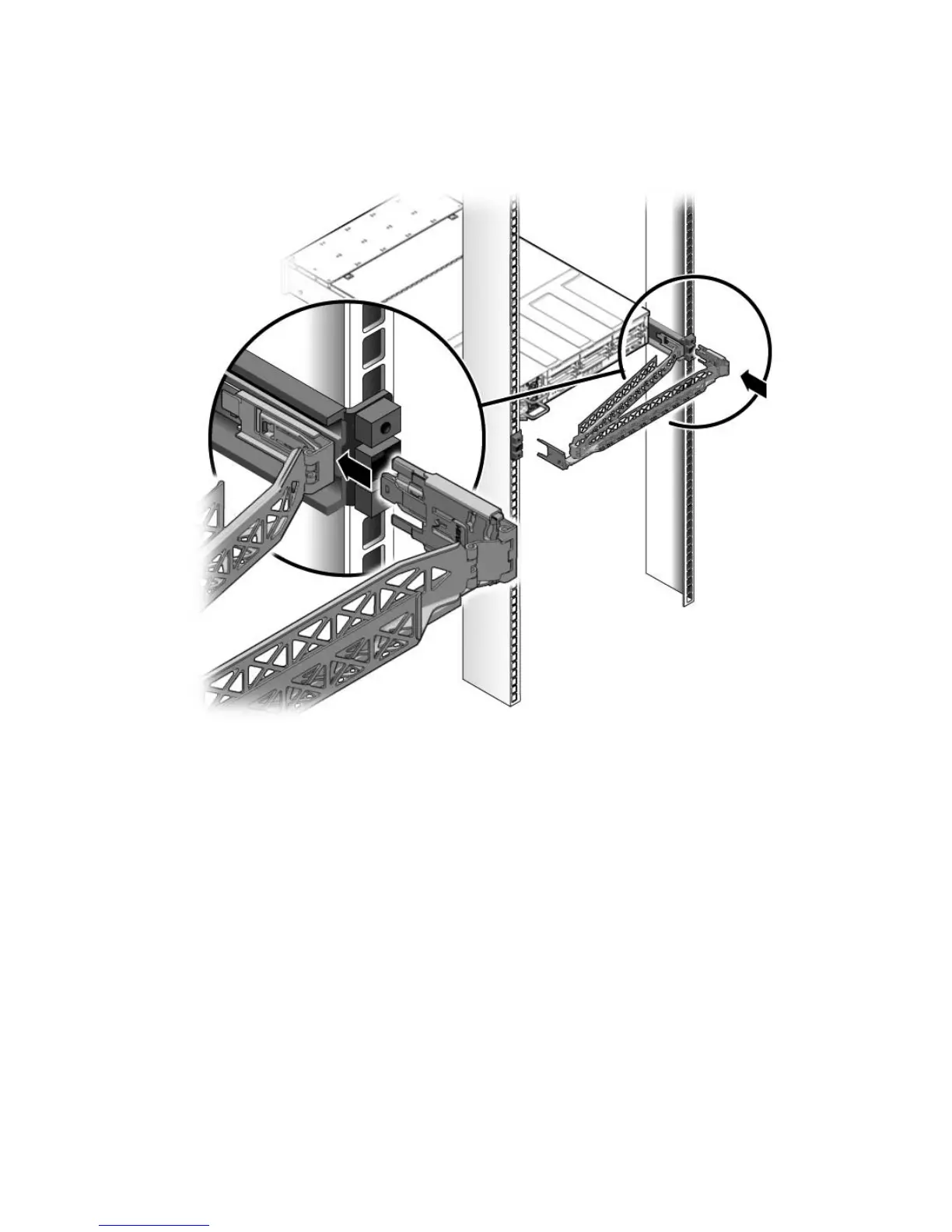

FIGURE: Attaching the Outer CMA Connector (Either Server)
5. Insert the hinged plastic connector at the left side of the CMA fully into the
CMA rail extension.
The plastic tab on the CMA rail extension locks the hinged plastic connector in
place.
