70 Sun SPARC Enterprise T5140 and T5240 Servers Installation Guide • December 2010
The express rail rackmounting kit has two slide rail assemblies. A slide rail assembly
can be installed on either the right or left side of the rack.
Each slide rail assembly consists of a three-section slide rail and a removable
mounting bracket.

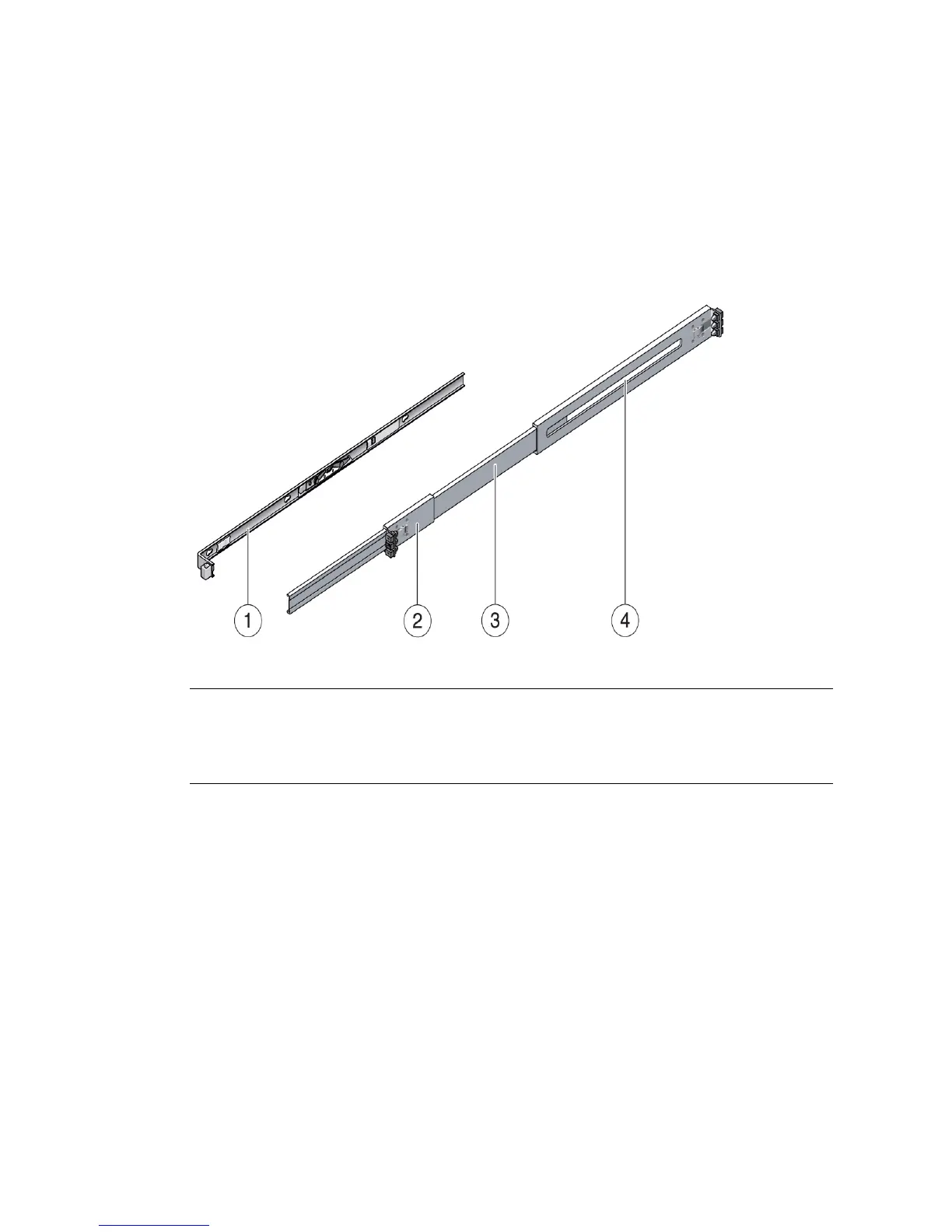

FIGURE: Sections of the Express Rail Slide Rail Assembly
■ The front, middle, and rear sections form the slide rail. The middle and rear sections
have holes for mounting and adjust to fit rack depths from 24 in. (61 cm) to 36.5 in.
(93 cm). The front section can be extended to allow movement of the server out of
the rack.
■ The removable mounting bracket slides 14.5 in. (37 cm) out of the slide rail, then
locks in place. If you unlock the mounting bracket at this point, it slides an
additional 14.5 in. (37 cm) before separating from the slide rail. You can then
mount the mounting bracket to the right or left side of the server chassis.
■ There are six locks in a slide rail assembly. Four are on the mounting bracket. Two
locks are on the slide rail.
Figure Legend
1 Mounting bracket
2 Front section
3 Middle section
4 Rear section
