Installing the Servers With the Express Rail Rackmounting Kit 73
c. Slide the mounting bracket release button to the left; then slide the mounting
bracket completely out of the slide rail.

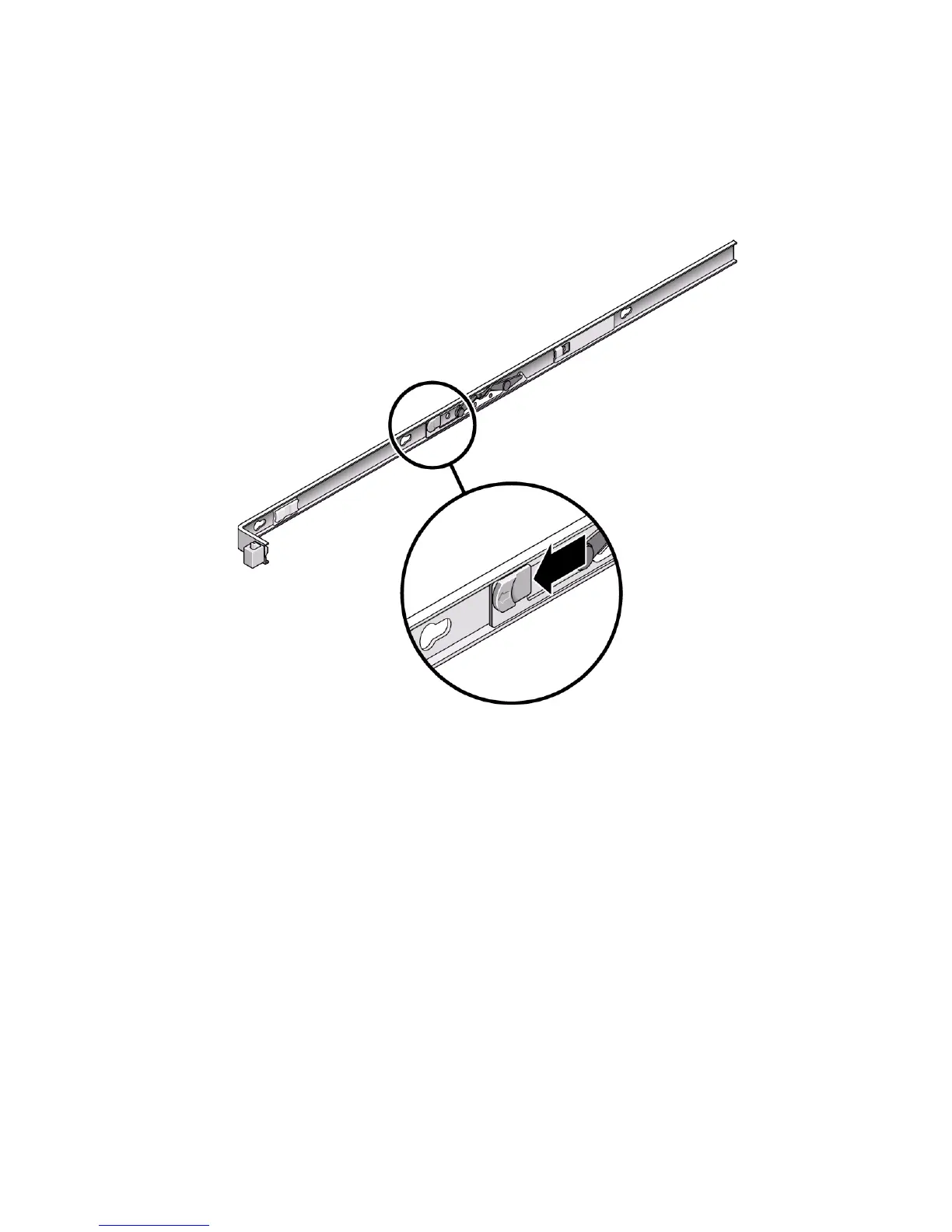

FIGURE: Express Rail Mounting Bracket Release Button
2. Attach a mounting bracket to the right side of the server chassis.
a. Position the mounting bracket against the chassis. Ensure that the slide rail
lock is at the front and the keyed openings on the mounting bracket are
aligned with the locating pins on the side of the chassis.
