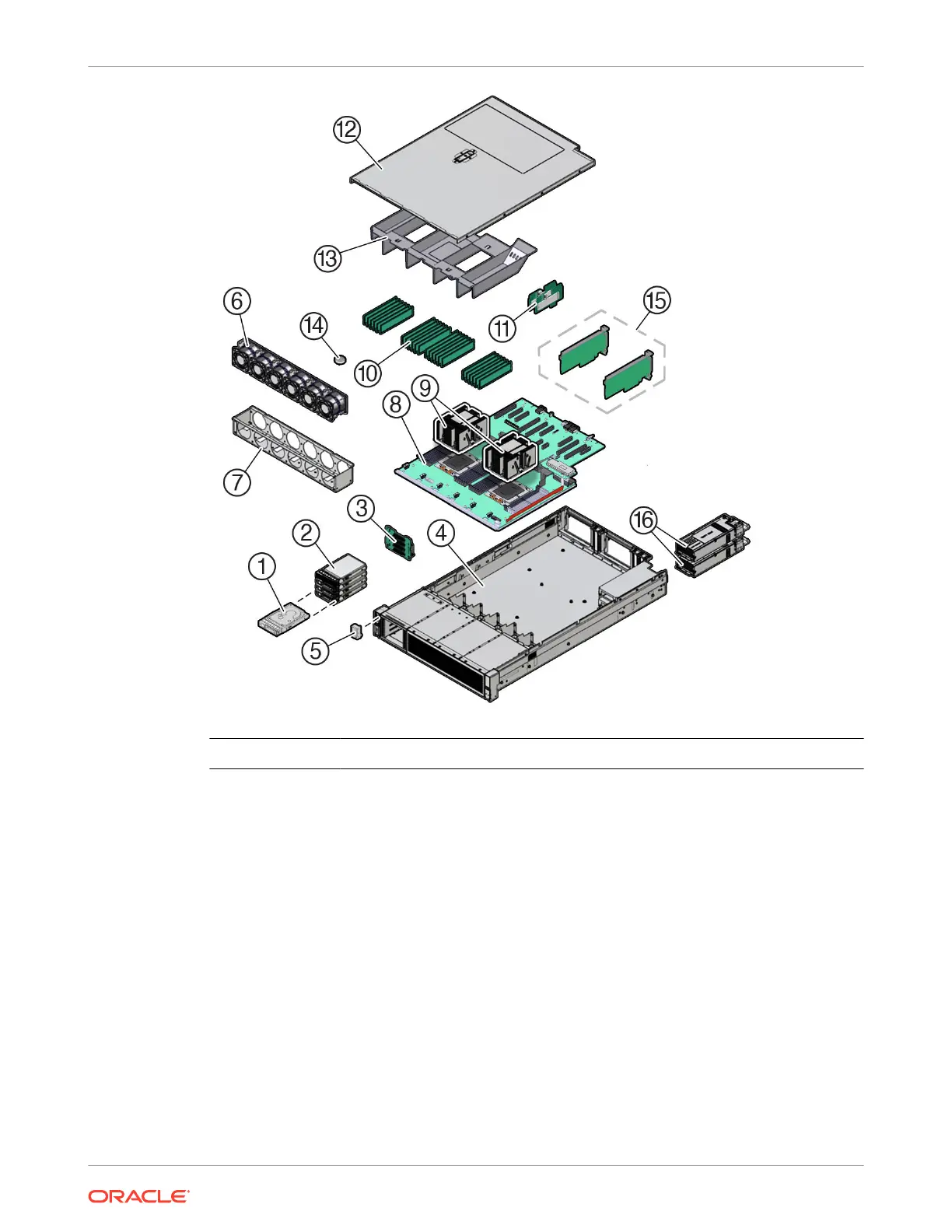

Callout Description
1 Storage drives – four 2.5-inch hot-pluggable PCIe-based NVMe SFF SSDs in 4-
Drive backplane
2 Storage drive bay cage
3 4-Drive backplane (DBP)
4 System chassis
5 Front LED indicator module (FIM)
6 Six fan modules (FM0-5)
7 Fan tray
8 Motherboard assembly (MB)
9 Processors (P0, P1) and heatsinks
10 24 DIMMs
11 Internal M.2 SSD memory with two internal M.2 Risers
12 Top cover
13 Air bae
14 System RTC battery
Chapter 4
Illustrated Parts Breakdown
4-2
