4. To prevent the rack from tipping, ensure all anti-tilt devices on the rack are extended.
5. Extend the storage controller approximately 13 cm (5 inches) out of the front of the rack.

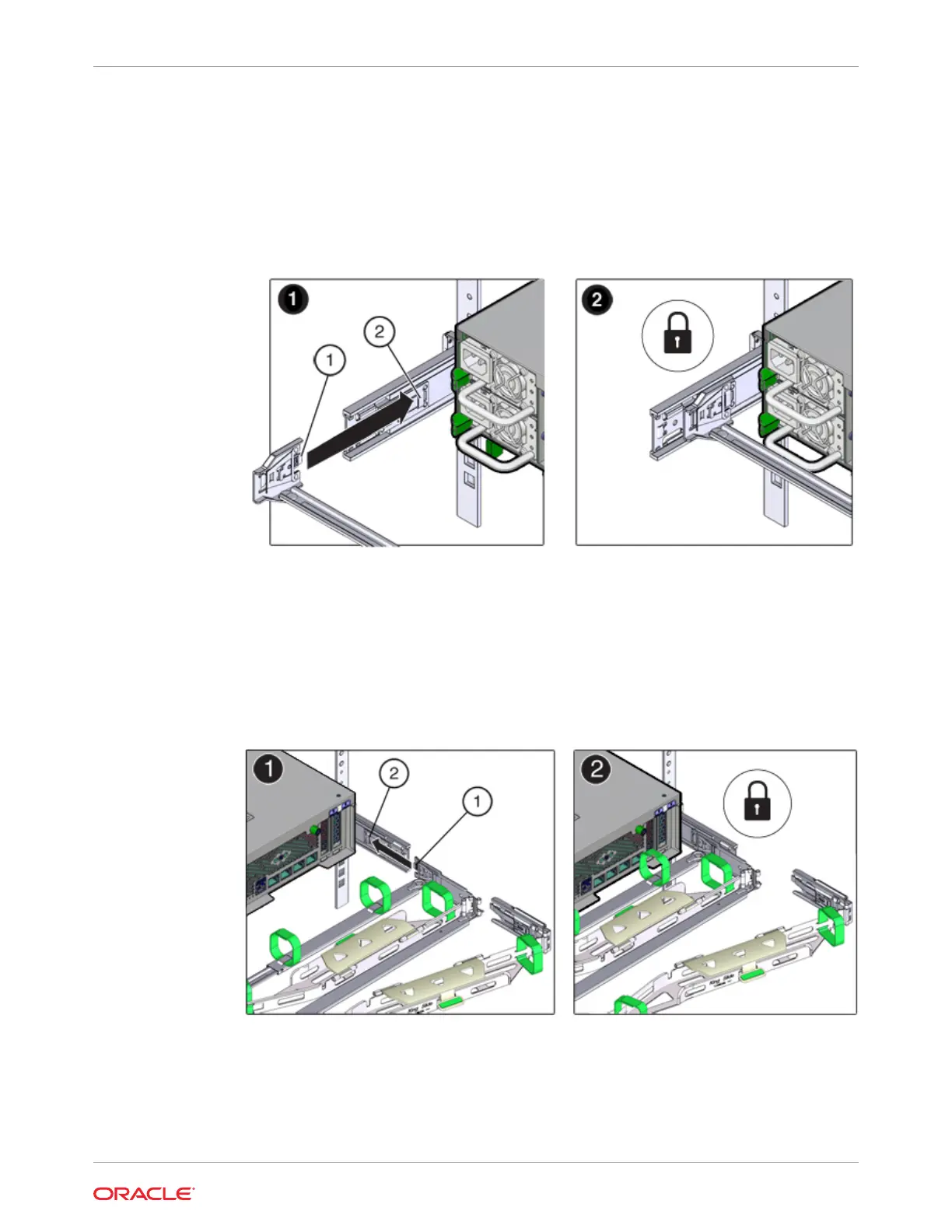

6. At the back of the rack, insert the CMA's connector A into the front slot on the left slide-
rail until it locks into place with an audible click (frames 1 and 2).
The connector A tab (1) goes into the slide-rail's front slot (2). Gently tug on the left side
of the front slide bar to verify that connector A is properly seated.
7. Support the CMA and do not allow it to hang under its own weight until it is secured at all
four attachment points.
8. Insert the CMA's connector B into the front slot on the right slide-rail until it locks into
place with an audible click (frames 1 and 2).
The connector B tab (1) goes into the slide-rail front slot (2). Gently tug on the right side
of the front slide bar to verify that connector B is properly seated.
9. To install the CMA's connector C into the right slide-rail, perform the following steps:
a. Align connector C with the slide-rail so that the locking spring (1) is positioned inside
(server side) of the right slide-rail (frame 1).
Chapter 7
Installing an Oracle ZFS Storage ZS5-2 Cable Management Arm
7-7
