3. If your rack is a threaded universal 19-inch cabinet:
a. Use the T20 Torx driver to remove the rail location pegs from the front and rear
of the rails.
b. Use the supplied wrench to insert two pins into each end of the rails, in the
same location where the location pegs were removed.
c. Position the front of the rails inside the cabinet, with the rail flange inside of the
cabinet flange, and the rail label facing the inside of the cabinet.
The pins should be fully located within the rack holes.
d. Insert and tighten one screw through the front of the rack and into the top hole
in the rails.

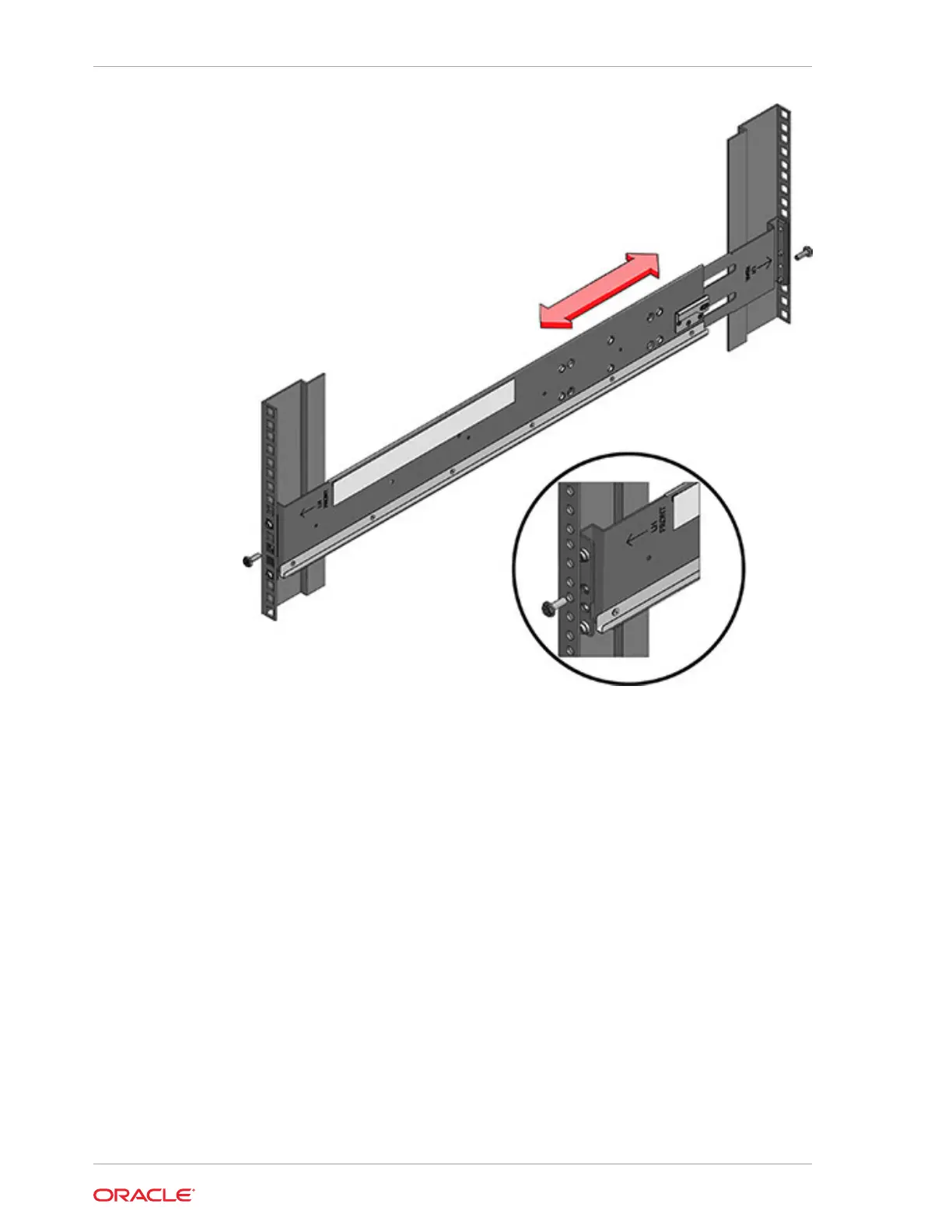

e. Adjust the rail lengths to fit, and locate the rear pins inside the corresponding
rear rack holes.
f. Insert and tighten one screw through the back of the rack and into the back of
the rails.
Chapter 3
Installing an Oracle Storage Drive Enclosure DE2-24P Disk Shelf
3-10
