How to Install a 7x20 onto the Rack Slide Rails
Example 3
Installing a 7120/7320 onto the Rack Slide Rails

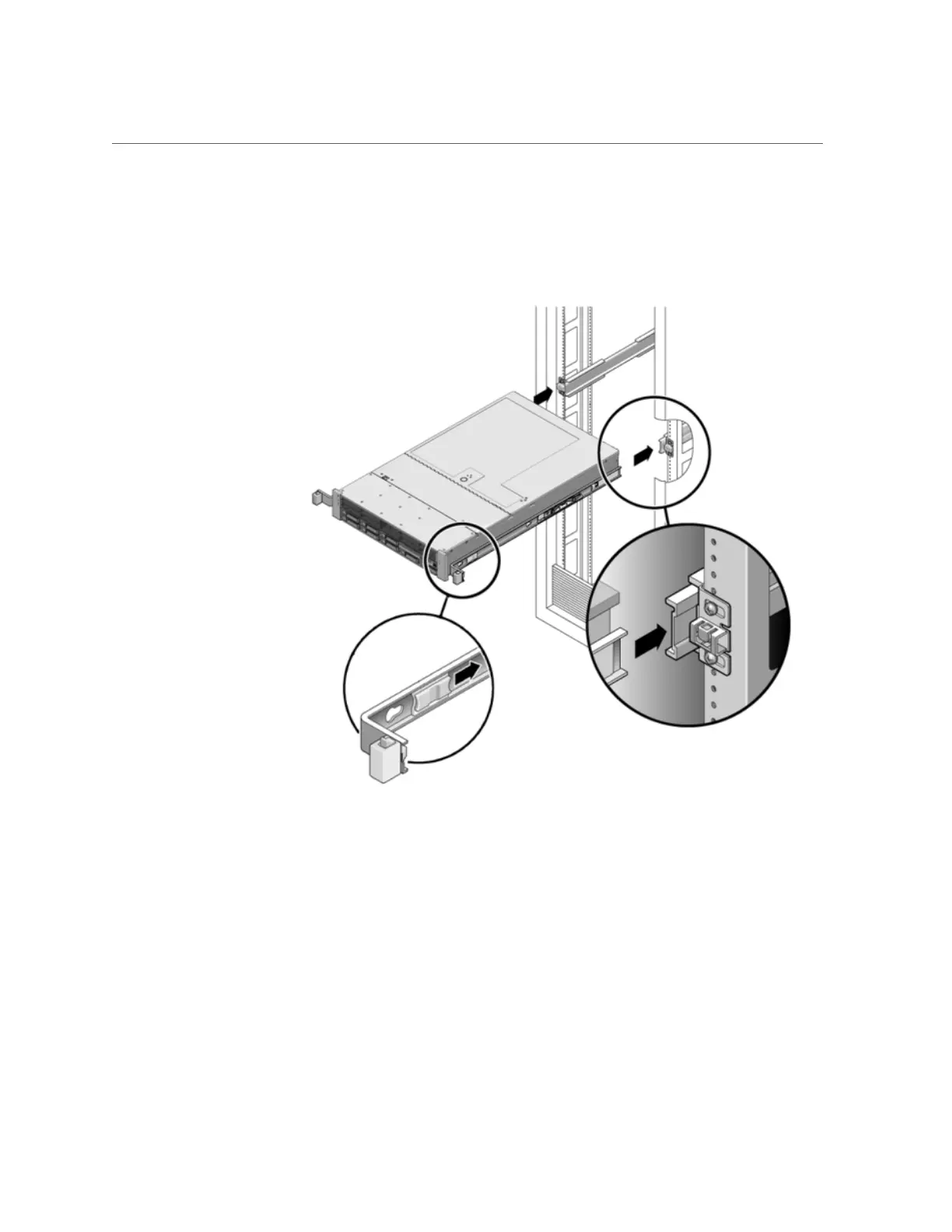

The following graphic illustrates the 7120/7320 chassis insertion and slide rail locks usage.
Example 4
Installing a 7420 onto the Rack Slide Rails
The following graphic illustrates 7420 chassis insertion.
Installing a 7x20 Controller 107
