Oracle ZS4-4 User Manual

How to Connect Disk Shelf and Controller Cables
Example 5
Cluster Cabling Example

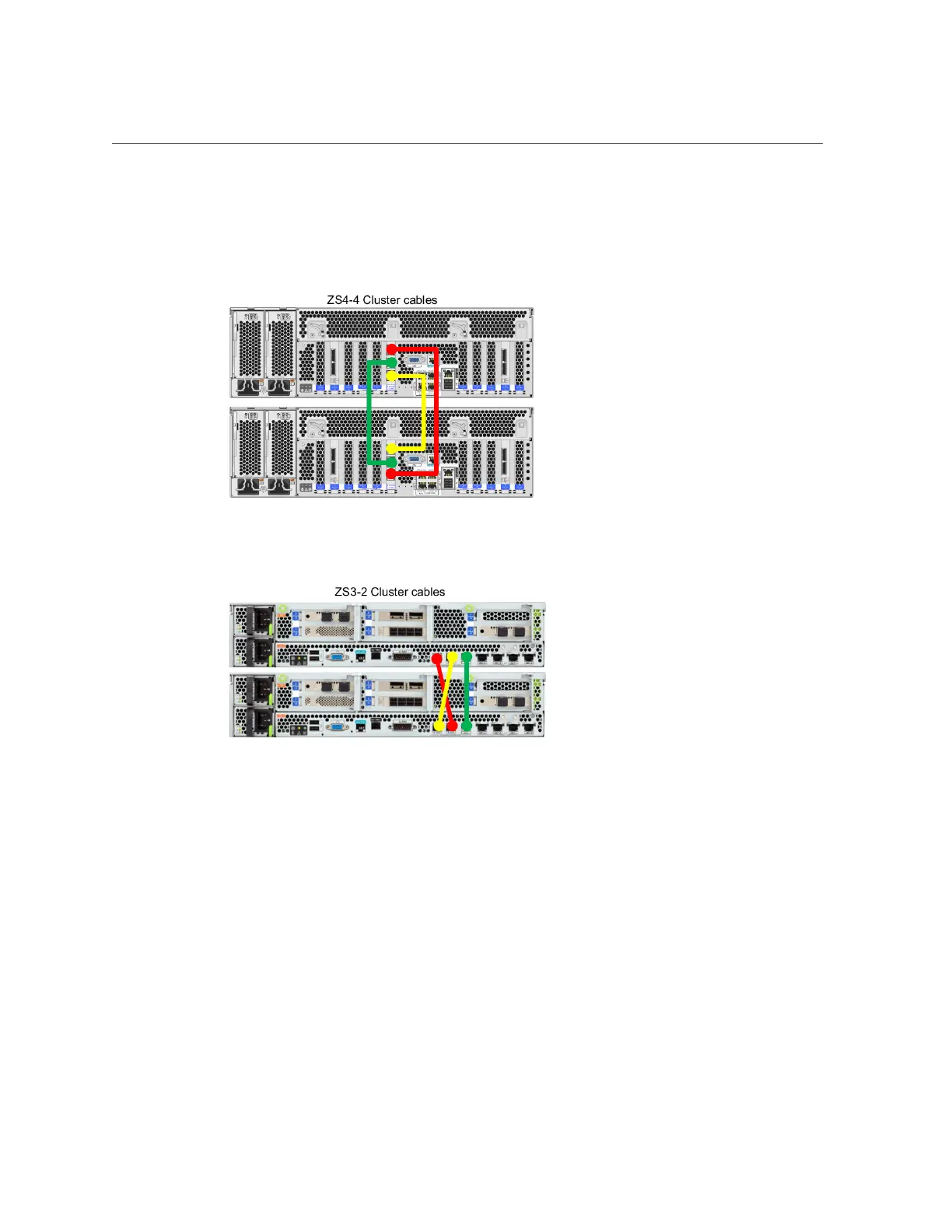

The following illustration shows the cluster cable connections between two clustered Oracle
ZFS Storage ZS4-4 controllers.
The following illustration shows the cluster cable connections between two clustered Oracle
ZFS Storage ZS3-2 controllers.
Example 6
Disk Shelf Cabling Example
The following illustration shows the cable connections for two clustered Oracle ZFS Storage
ZS4-4 controllers and eight DE2-24C disk shelves. “RU nn” represents the rack unit number
within the cabinet. The colored letters and numbers (A1, B1, and so on) mark either end of each
SAS cable connection between the controllers and the disk shelf chains. The controllers, as
recommended, are located in the middle of the cabinet.
Cabling the Appliance 117
