Hardware Overviews
FIGURE 10

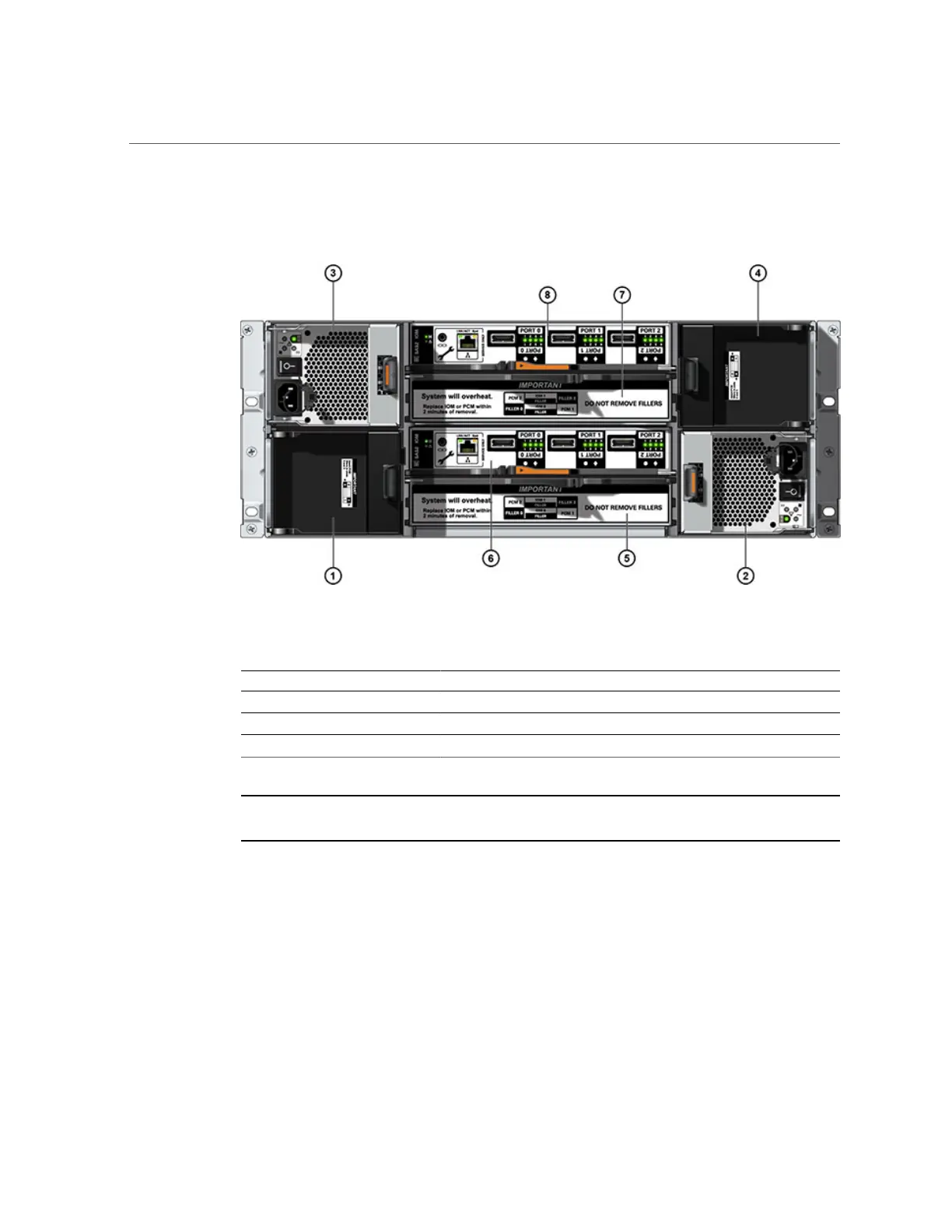

Oracle Storage Drive Enclosure DE2-24C Rear Panel
Figure Legend
1 Power Supply Filler Panel, Slot 0 2 Power Supply with Fan Module 1 3 Power Supply with Fan Module 2
4 Power Supply Filler Panel, Slot 3 5 I/O Module Filler Panel 6 I/O Module 0
7 I/O Module Filler Panel 8 I/O Module 1
Note - It is especially important that power supplies and their filler panels are in the correct
slots.
26 Oracle ZFS Storage Appliance Installation Guide • February 2016
