Hardware Overviews
Figure Legend
1 Fault / Locate indicator 2 Power / OK indicator 3 SAS-2 Port 0
4 SAS-2 Port 1 5 SAS-2 Port 2 6 Host port activity indicators
7 For Oracle service only 8 For Oracle service only
SIM Board Indicators

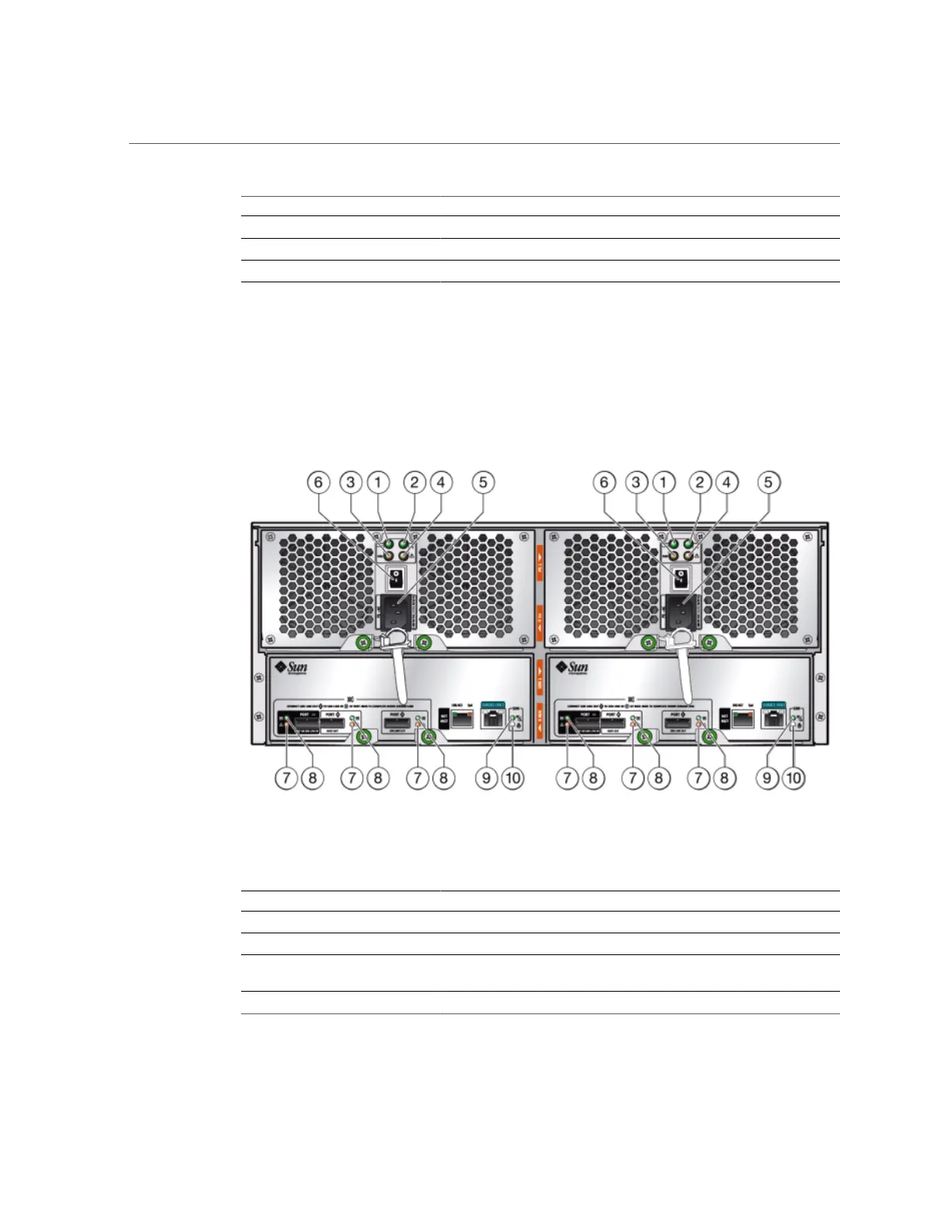

The following figure shows the SIM board indicators for the Sun Disk Shelf.
FIGURE 13
Sun Disk Shelf SIM Board Indicators
Figure Legend
1 AC power indicator 2 DC power indicator 3 Fan fault indicator
4 Power supply fault indicator 5 Universal power connector 6 Power switch
7 Port fault indicator 8 Port OK indicator 9 SIM board OK indicator (green)/
SIM board fault indicator (amber)
10 SIM locator indicator
28 Oracle ZFS Storage Appliance Installation Guide • February 2016
