How to Install a Sun Disk Shelf
6.
Using a mechanical lift or two people, one at each side of the shelf or controller,

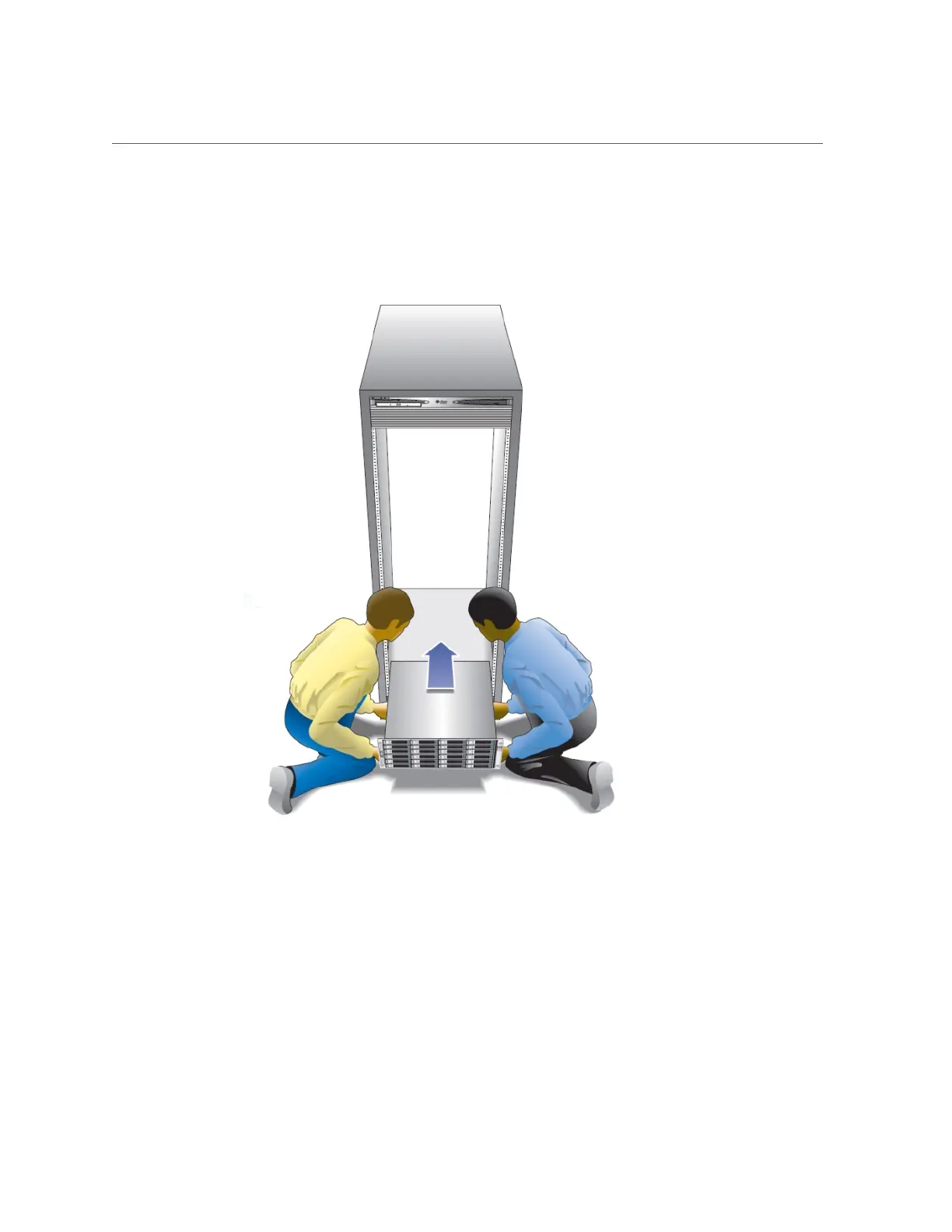

carefully lift and rest the shelf on the bottom ledge of the left and right rails. The
following graphic illustrates the chassis insertion.
7.
Carefully slide the shelf into the cabinet until the front flanges of the shelf touch
the vertical face of the rack.
8.
Tighten the captive screws on each side of the front of the shelf to secure the
shelf to the rack.
9.
At the back of the disk shelf, slide a system locking clip onto each lower corner
of the chassis.
Installing Disk Shelves 71

Oracle ZS4-4 Specifications

General

Model	ZS4-4
Category	Storage
Architecture	Scale-up
Controller Type	Active/Active
Drive Types	SSD, HDD
RAID Support	Yes
Data Reduction Features	Deduplication, Compression
Operating System	Oracle Solaris
Processors	4
Processor	Intel Xeon processors
Controller	Two
Cache Memory	Up to 1.5 TB
Network Ports	12 x 10 GbE
Connectivity	InfiniBand
Protocols Supported	NFS, SMB, iSCSI, FC
RAID Levels	0, 1, 5, 6, 10
Expansion Slots	Up to 8 slots
Redundancy	Dual controllers, dual power supplies, dual fans
Power Supply	Redundant power supplies
