How to Install the Slide Rails into the Rack for a ZS4-4 or ZS3-4

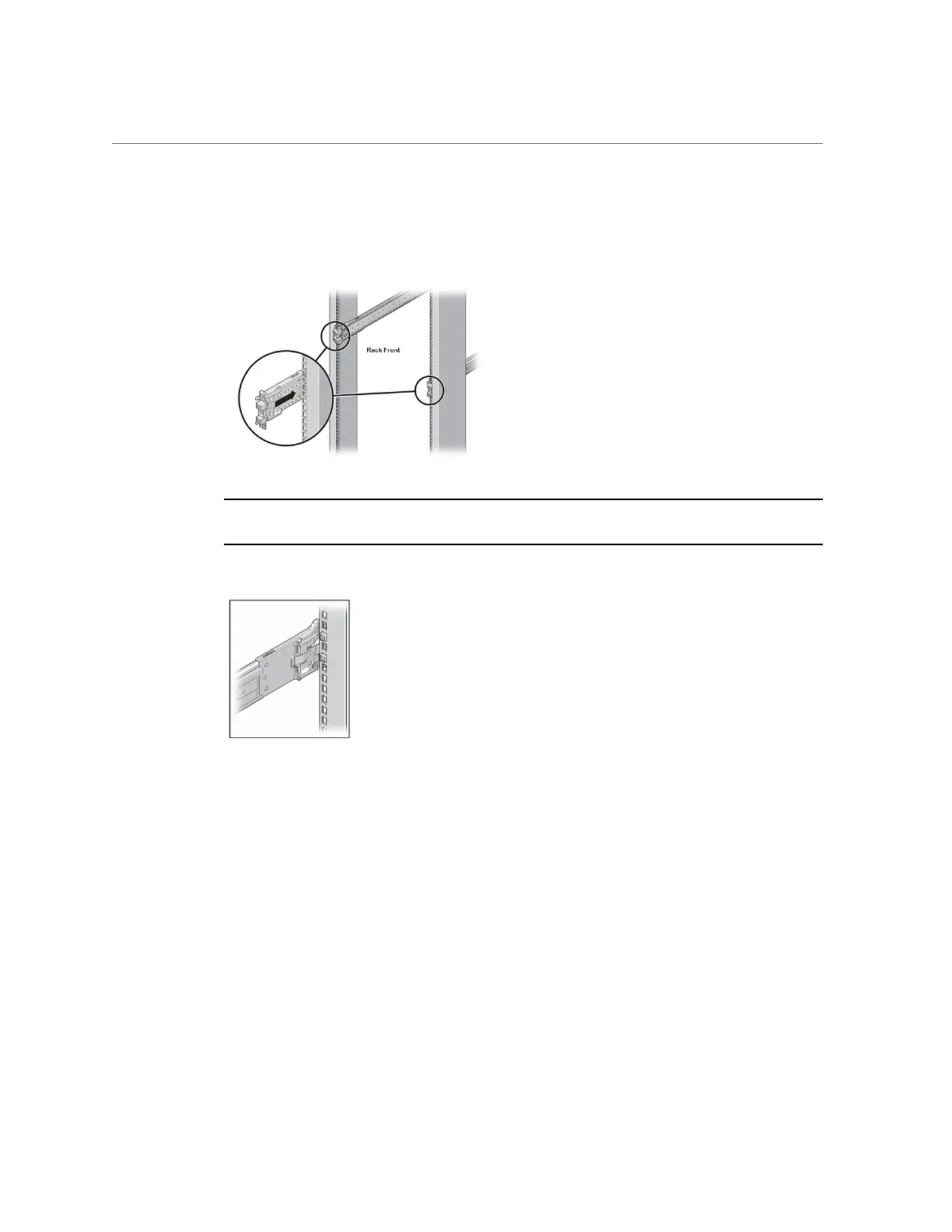

toward the rear of the rack until the mounting pins engage the rack with an
audible click.
Note - The slide assembly mounting pins accommodate 9.5-mm square mounting holes. No
other mounting hole sizes are supported.
3.
(Optional) If installing the assembly with cage nuts and mounting screws, insert
the cage nuts into the front and rear rack posts in the desired positions. Then
Installing a ZS4-4 or ZS3-4 Controller 75
