How to Install a ZS4-4 or ZS3-4 onto the Rack Slide Rails
2.
Lower the rack stabilization feet if you have not already done so.
3.
Push the slide rails into the slide-rail assemblies in the rack as far as possible.
4.

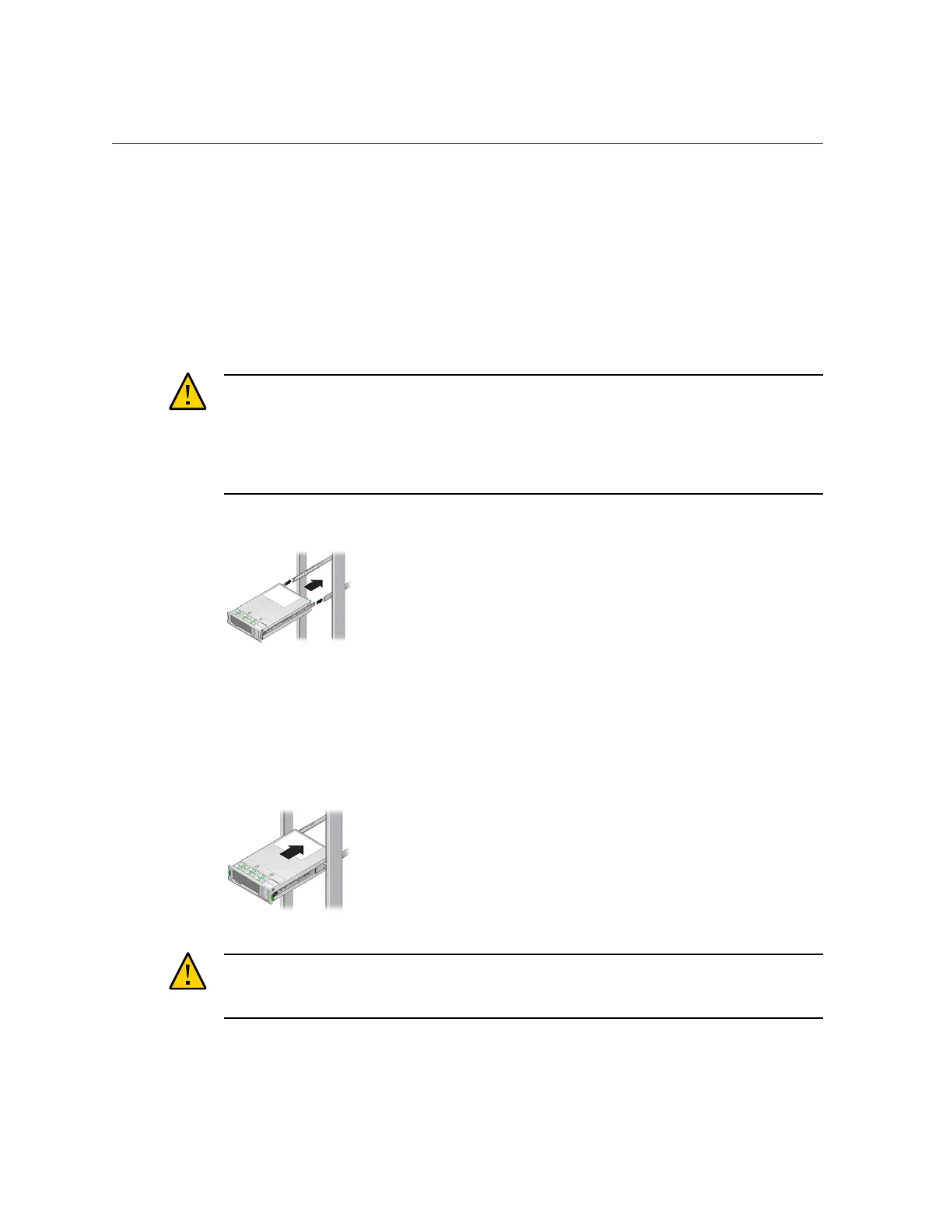

Raise the chassis so that the back ends of the mounting brackets are aligned
with the slide rail and insert the chassis into the slide rails, pushing the chassis
slowly, until the mounting brackets meet the slide-rail stops (approximately 12
inches, or 30 cm).
Caution - When inserting the controller into the slide rail, ensure that both the top and bottom
mounting lips of the mounting brackets are inserted into the slide rail. The controller should
slide forward and backward easily if correctly installed. If the unit does not slide easily, ensure
that each mounting lip is inserted properly. If the mounting brackets are not inserted properly,
the unit may fall when removing it from the rack, causing equipment damage and possibly
personal injury.
5.
Simultaneously push and hold the green slide-rail release buttons on each
mounting bracket while you push the controller into the rack. Continue pushing
until the slide-rail locks (on the front of the mounting brackets) engage the slide-
rail assemblies with an audible click.
Caution - Verify that the controller is securely mounted in the rack and that the slide-rail locks
are engaged with the mounting brackets before continuing, or equipment damage and possibly
personal injury could occur.
Installing a ZS4-4 or ZS3-4 Controller 77
