How to Install a ZS4-4 or ZS3-4 Cable Management Arm
3.
Insert the left CMA slide-rail connector into the left slide-rail assembly until the
connector locks into place with an audible click.
4.
Install and route cables to the controller, as required.
5.
If required, attach the cable hook and loop straps to the CMA, and press them
into place to secure the cables.
Note - Cable hooks and loop straps are preinstalled on the CMA. Perform this step if you need
to reinstall cable hooks and straps.
6.

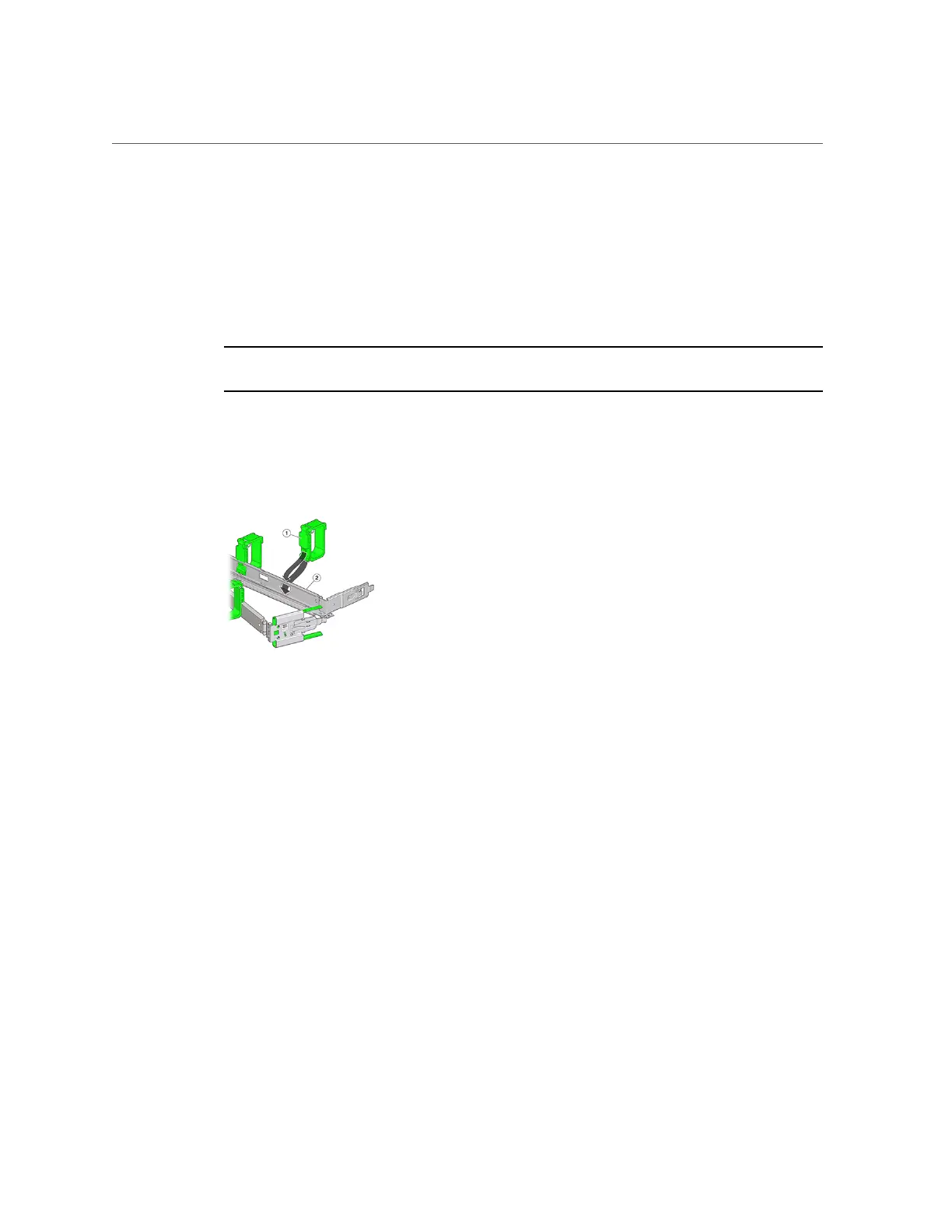

For best results, place three cable straps (1), evenly spaced, on the rear-facing
side of the CMA arm (2), and three cable straps on the side of the CMA nearest
the controller.
Installing a ZS4-4 or ZS3-4 Controller 79
