How to Install a ZS3-2 Cable Management Arm
3.
Ensure that the six Velcro straps are threaded into the CMA.
4.
To prevent the rack from tipping, ensure all anti-tilt devices on the rack are
extended.
5.
Extend the storage controller approximately 13 cm (5 inches) out of the front of
the rack.
6.

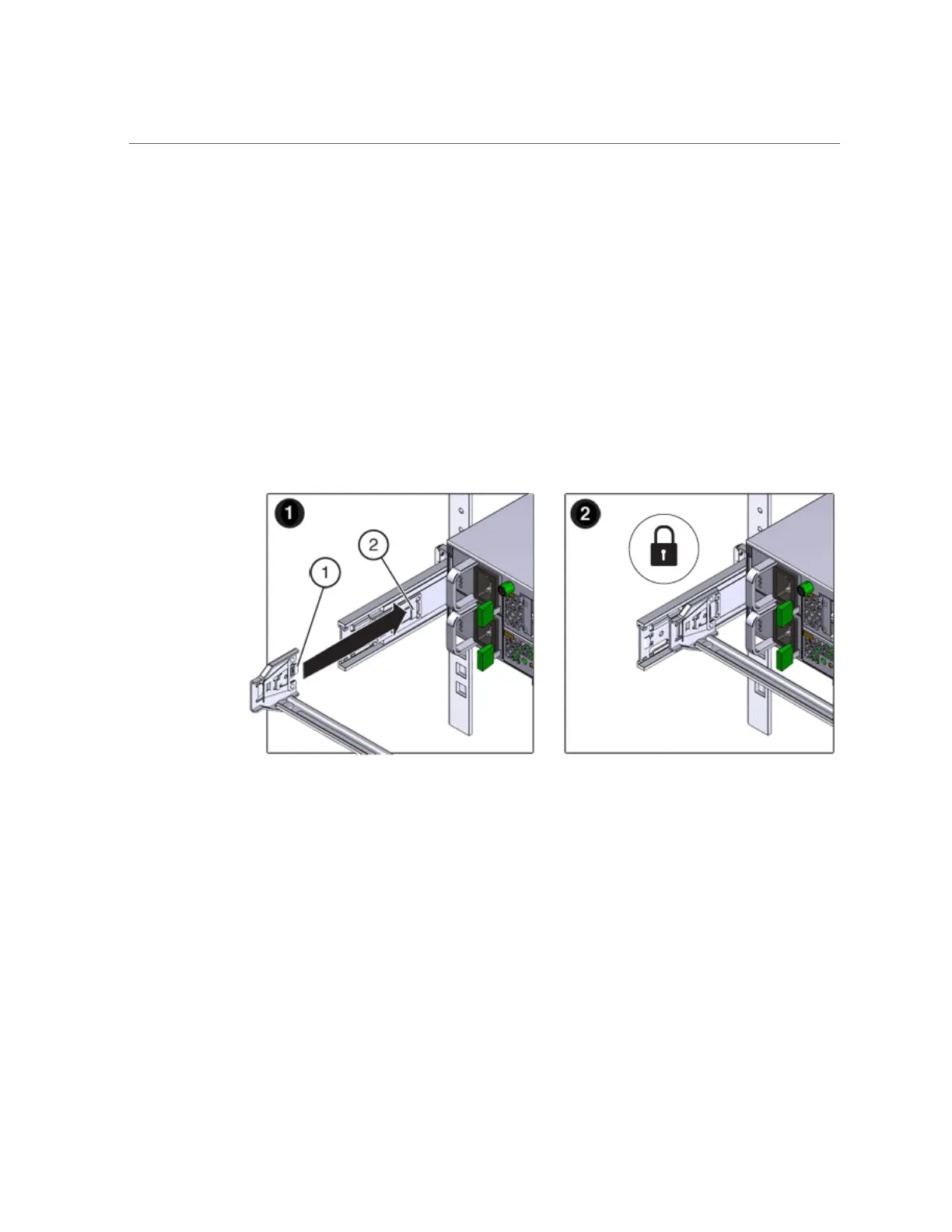

At the back of the rack, insert the CMA's connector A into the front slot on the
left slide-rail until it locks into place with an audible click (frames 1 and 2).
The connector A tab (1) goes into the slide-rail's front slot (2). Gently tug on the left side of the
front slide bar to verify that connector A is properly seated.
7.
Support the CMA and do not allow it to hang under its own weight until it is
secured at all four attachment points.
8.
Insert the CMA's connector B into the front slot on the right slide-rail until it
locks into place with an audible click (frames 1 and 2).
90 Oracle ZFS Storage Appliance Installation Guide • February 2016
