How to Install a ZS3-2 Cable Management Arm

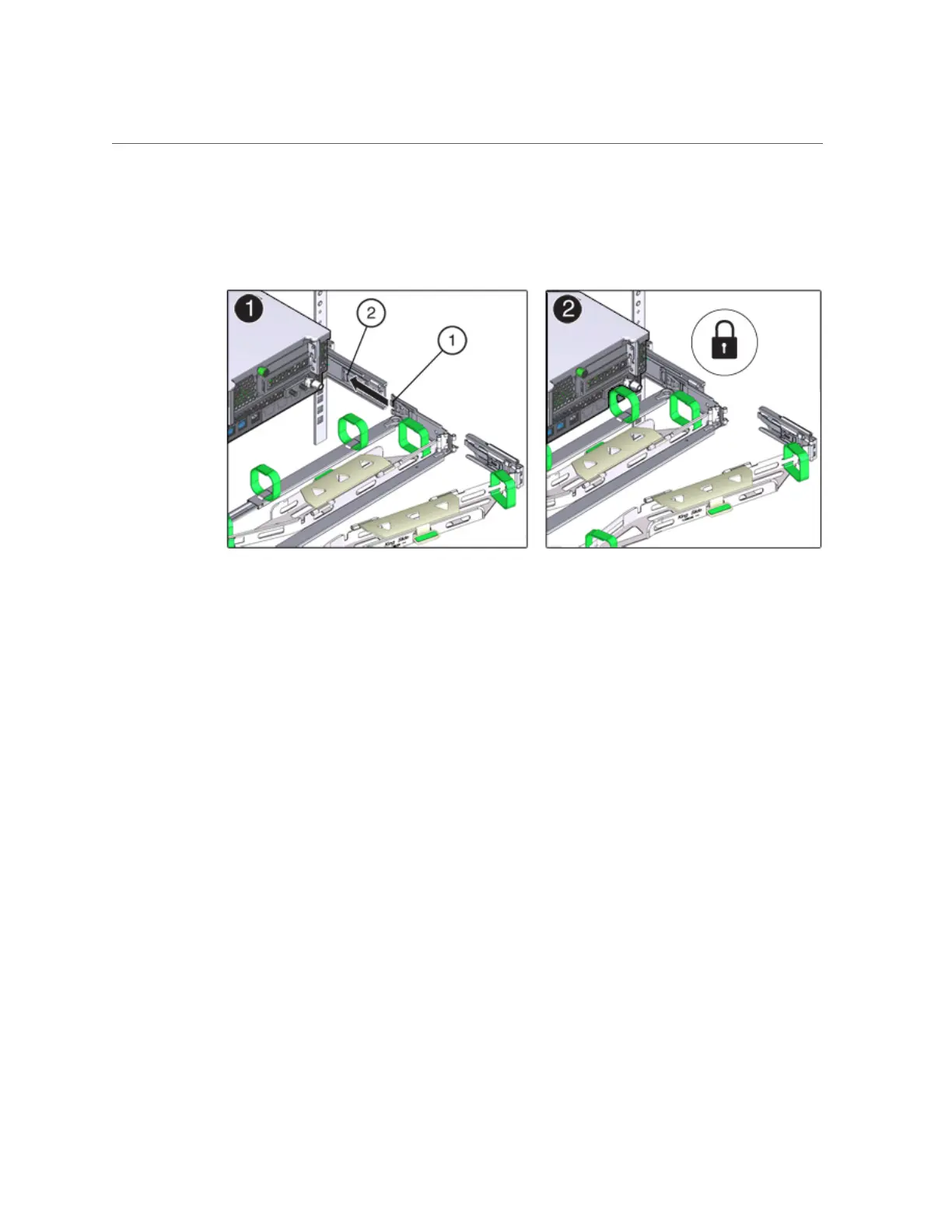

The connector B tab (1) goes into the slide-rail front slot (2). Gently tug on the right side of the

front slide bar to verify that connector B is properly seated.

To install the CMA's connector C into the right slide-rail, perform the following

steps:

Align connector C with the slide-rail so that the locking spring (1) is

positioned inside (server side) of the right slide-rail (frame 1).

Insert connector C into the right side-rail until it locks into place with an

audible click (frames 2 and 3).

Installing a ZS3-2 Controller 91
