System RF Layout System Description
2-2 Ocean TRx™ 4500 Installation and Operations Manual
2.1 System RF Layout

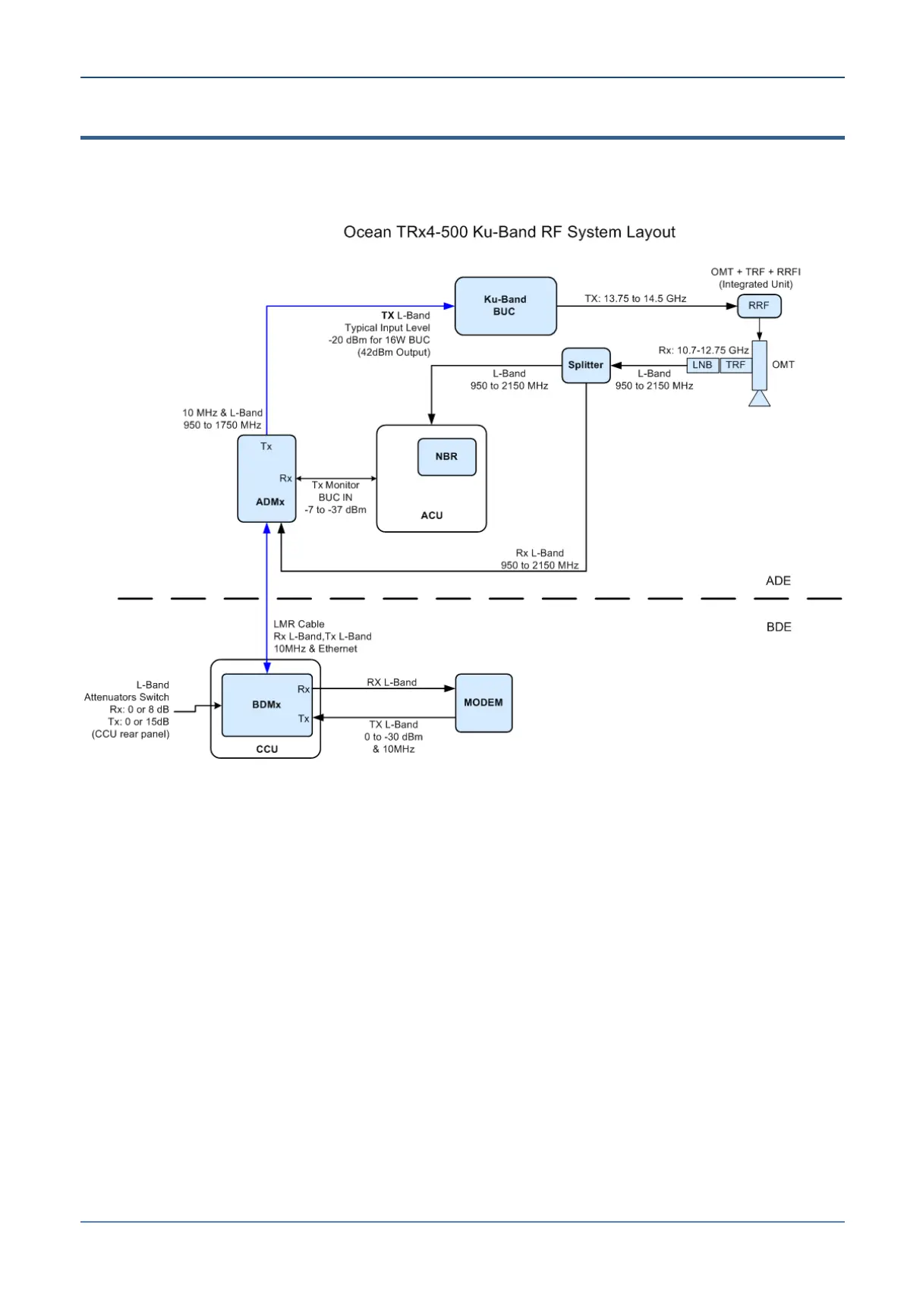

The following figure shows the frequencies and RF measurements at various points in the
system.
Figure 2-1: OceanTRx
TM
4-500 RF Layout
