Orbit OCEANTRX4-500 - Example of Mast Design

Pre-Installation Requirements Radome Support (Mast) Requirements
OceanTRx
TM
4-500 Installation and Operations Manual 3-7
3.4.2 Example of Mast Design

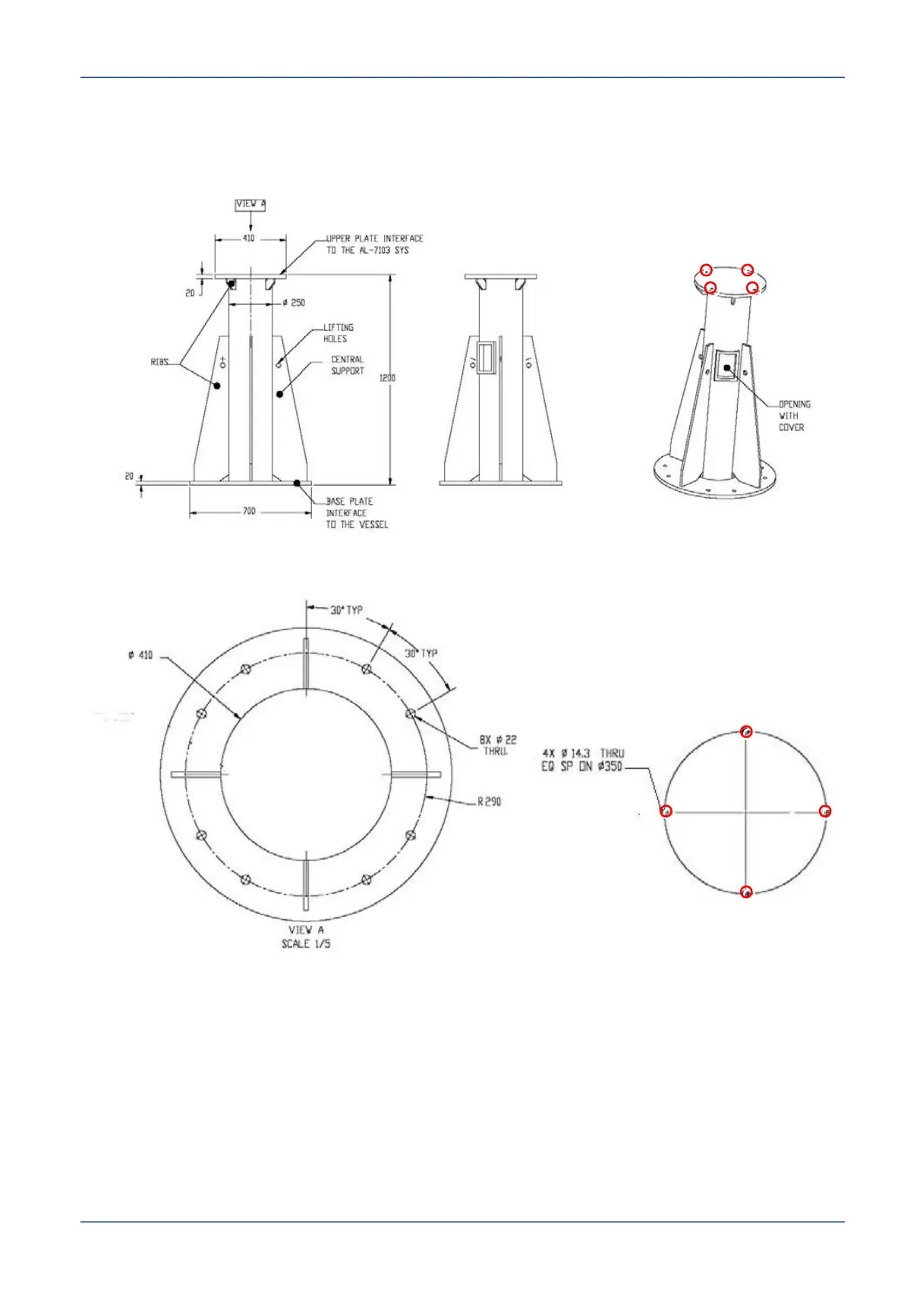

The following figures provide a suggested mast design.
Figure 3-4: Mast Design
Figure 3-5: Base Plate Interface (left) and Upper Plate Interface (right)
