Installation Procedure BDE Installation Procedure
OceanTRx
TM
4-500 Installation and Operations Manual 5-11
4. For DSS to CCU with 10MHz reference signal - connect the Modem as follows:
DSS Tx to CCU AUX-IF2
DSS Rx port to Modem Rx
DSS AUX-IF1 port Modem Tx

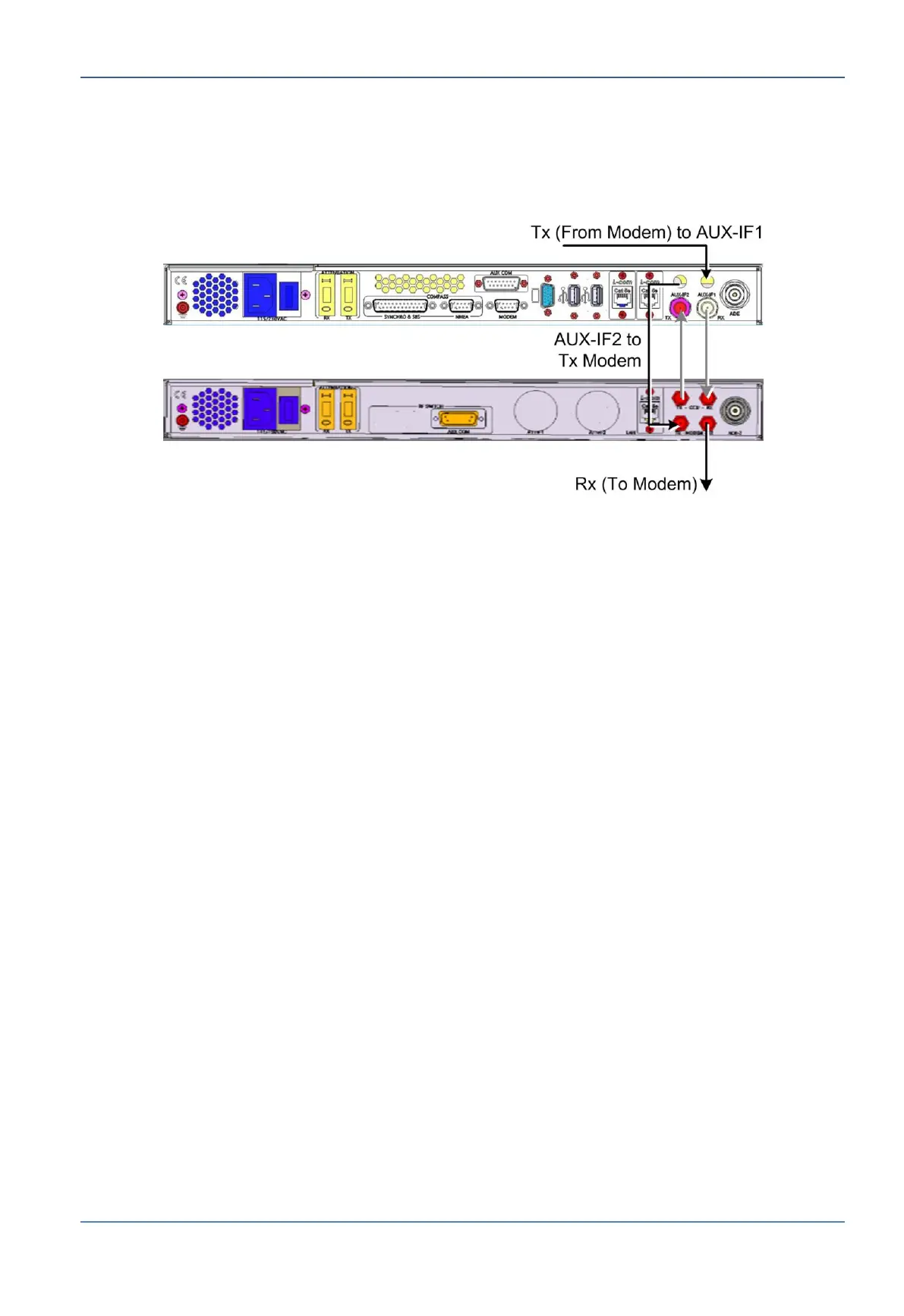

Figure 5-15: DSS to CCU with 10 MHz Tx/Rx Modem Connections
To Next Page
