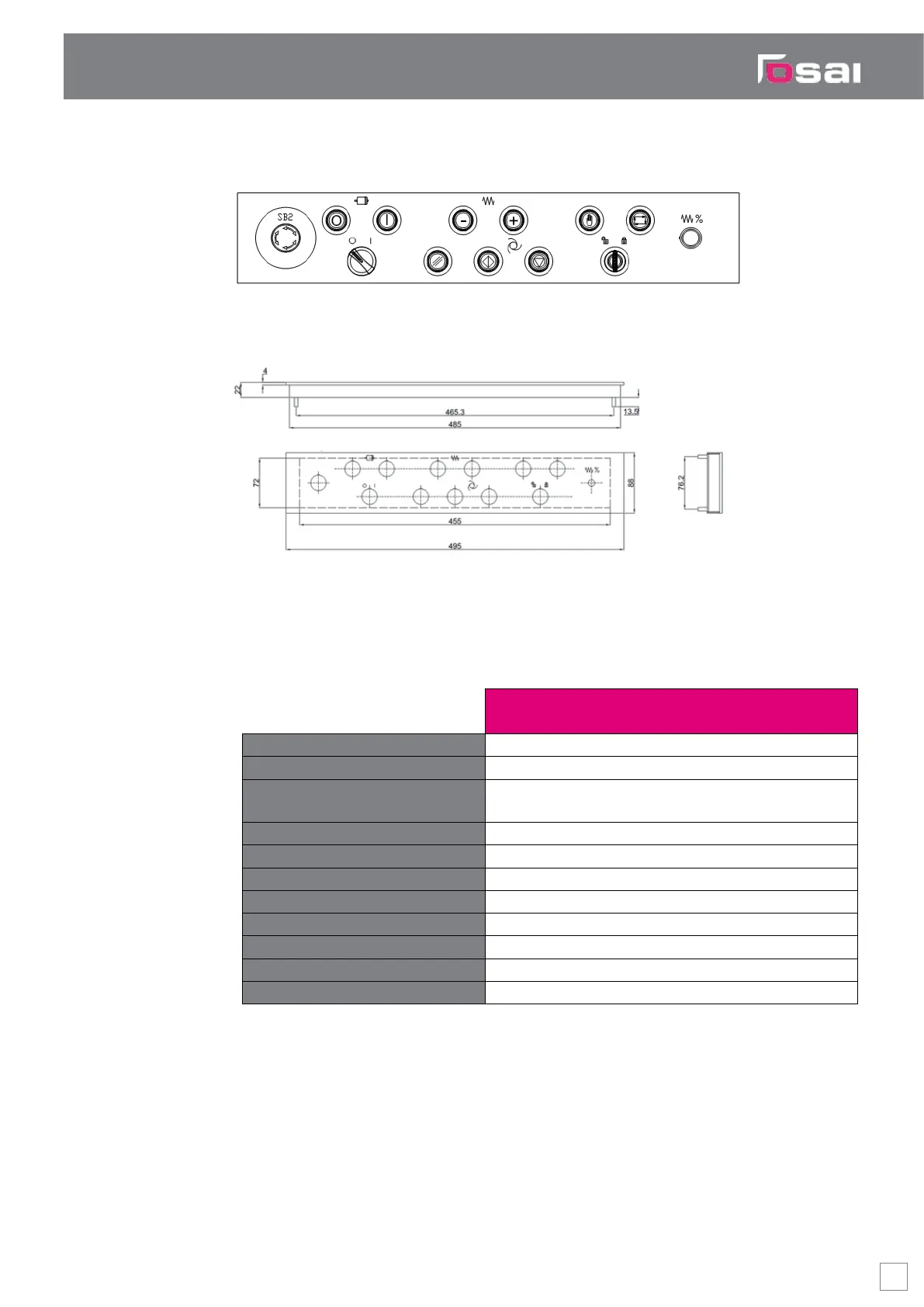

OPENconsole, OEM Control Panel module - front view.
OPENconsole OEM Control Panel module dimensions.
OPENconsole
Control Panel Module
Part Number 2SMPM6019/0C
Eemrgency Stop YES
Push buttons Drives ON/OFF, CNC Power ON/OFF, Cycle Start, Cycle
Stop (Hold), Reset, JOG+ / JOG-, Auto and Manual Mode
Selectors CNC Power ON/OFF, Mode Lock key
Rotary Selectors Feedrate (congurable)
OEM custom keys On additional module
Connection to CNC EtherCAT bus
Power Supply 24Vin 24 VDC 1A
Power Supply 24Ve (Drive ON/OFF) 24 VDC 0.6A
Operating Temperature 0°C to +50°C
Relative humidity 10 to 90 % no condensation
