OSAI OPENcontrol - Openrio E901 - PWM Module for Laser

Hardware
OPENrio E901 - PWM module for Laser
OPENrio E901 is a congurable module specically designed for
laser sources management. The module, supplied in combination
with a Bus Coupler based on the EtherCAT protocol, constitutes a
dedicated laser control unit.
E901 includes:

4 Digital Input, with status LED

4 Digital Output, with status LED. 2 signals configurable
either as digital out or PWM with internal configurable PWM
generator.

1 Analog Output for laser output power regulation

1 Analog Input for laser power feedback
The module allows to generate and manage the signals normally required by laser
sources: PWM (2 channels), Beam ON and Shutter ON, power of the laser. Digital input
are provided to monitor laser source feedback. Activation delay can be congured for the
digital output to synchronize the signals with the PWM generator. Being fully congurable,
the module can be easily adapted to the laser source specications.
The laser interface modules are characterized by ease of use at all levels, from the
automatic detection of the conguration by the CNC, wiring via spring contacts and
removable connectors.

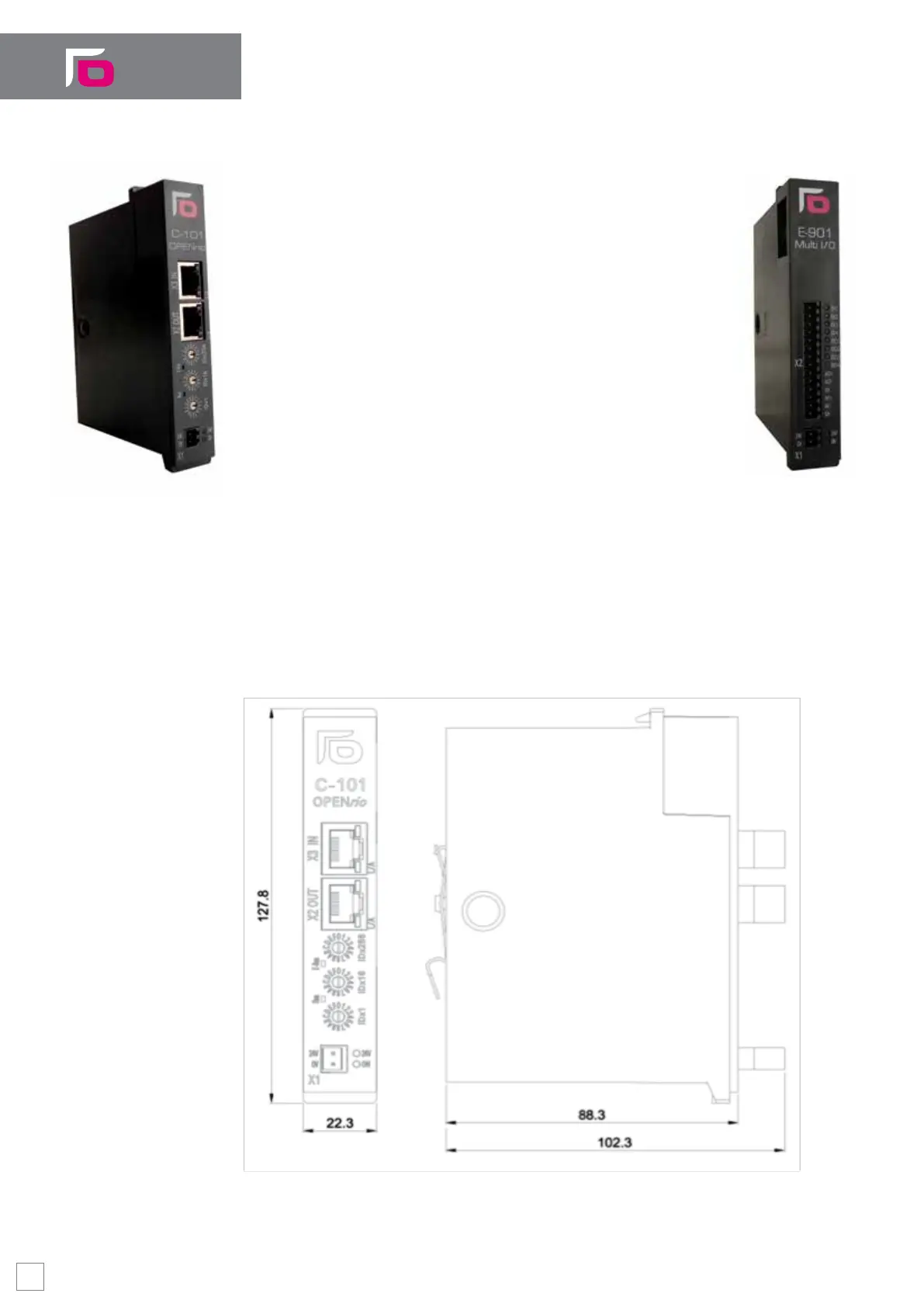

OPENrio Bus Coupler dimensions - front and side view
