OPENrio SL I/O modules
OPENrio SL is an I/O modular system extremely compact, controlled by EtherCAT bus, to
be installed on a standard 35 mm DIN rail. The system is composed of a wide range of
modules allowing the use in several application elds:
EtherCAT Bus coupler
Digital and analog I/O modules
Temperature sensor
module
2 Amp or relay output
module
PWM output module
Encoder input module
Power module

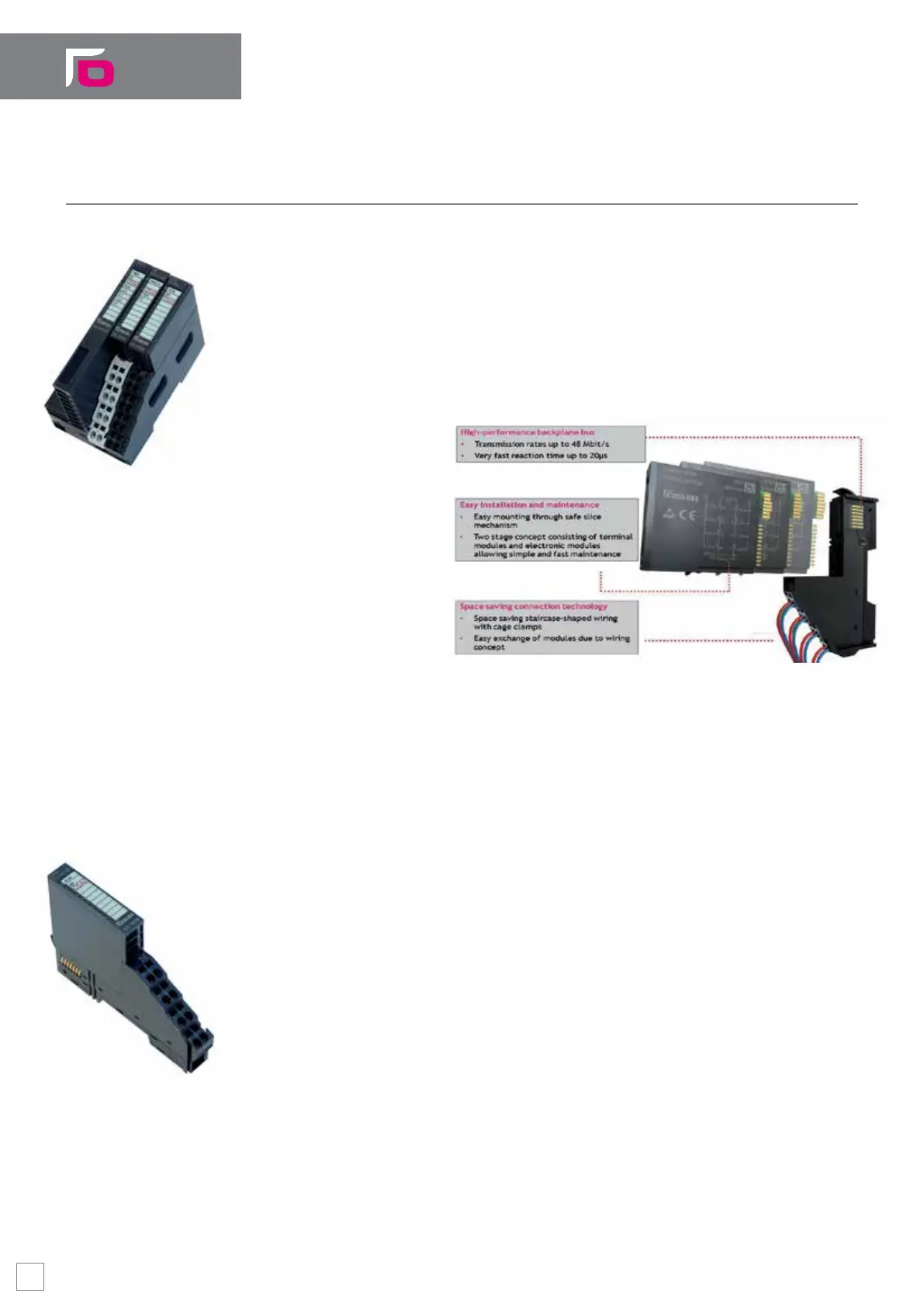

Each system element is
composed by a terminal
and by an electronic
module installed on the terminal through a safe slide mechanism. Terminal module
includes clamps, socket for the electronic module and sliding bus connector.
In case of maintenance, it is sufcient to replace the electronic module simply pulling it
out, while wiring and assembly on the DIN rail remain unchanged.
Main features and advantages
Bus coupler module including power supply with easily replaceable power supply
module
Output modules powered by the Bus Coupler simplify the connections
Possibility to separate the modules into groups with different electric potential
inserting auxiliary Power Modules
Modules provided with LED for diagnostics (cumulative for digital IOs) and module
status for each channel
Modules provided with removable customizable label for each channel, besides
functional and wiring diagrams
Coupling of the terminal socket with the 35 mm DIN rail through a simple system,
safe and resistant, which does not require any tool
Easy cables wiring on the terminal base made through spring contacts
Wiring on inclined base with a considerable space-saving for the cables
