Hardware

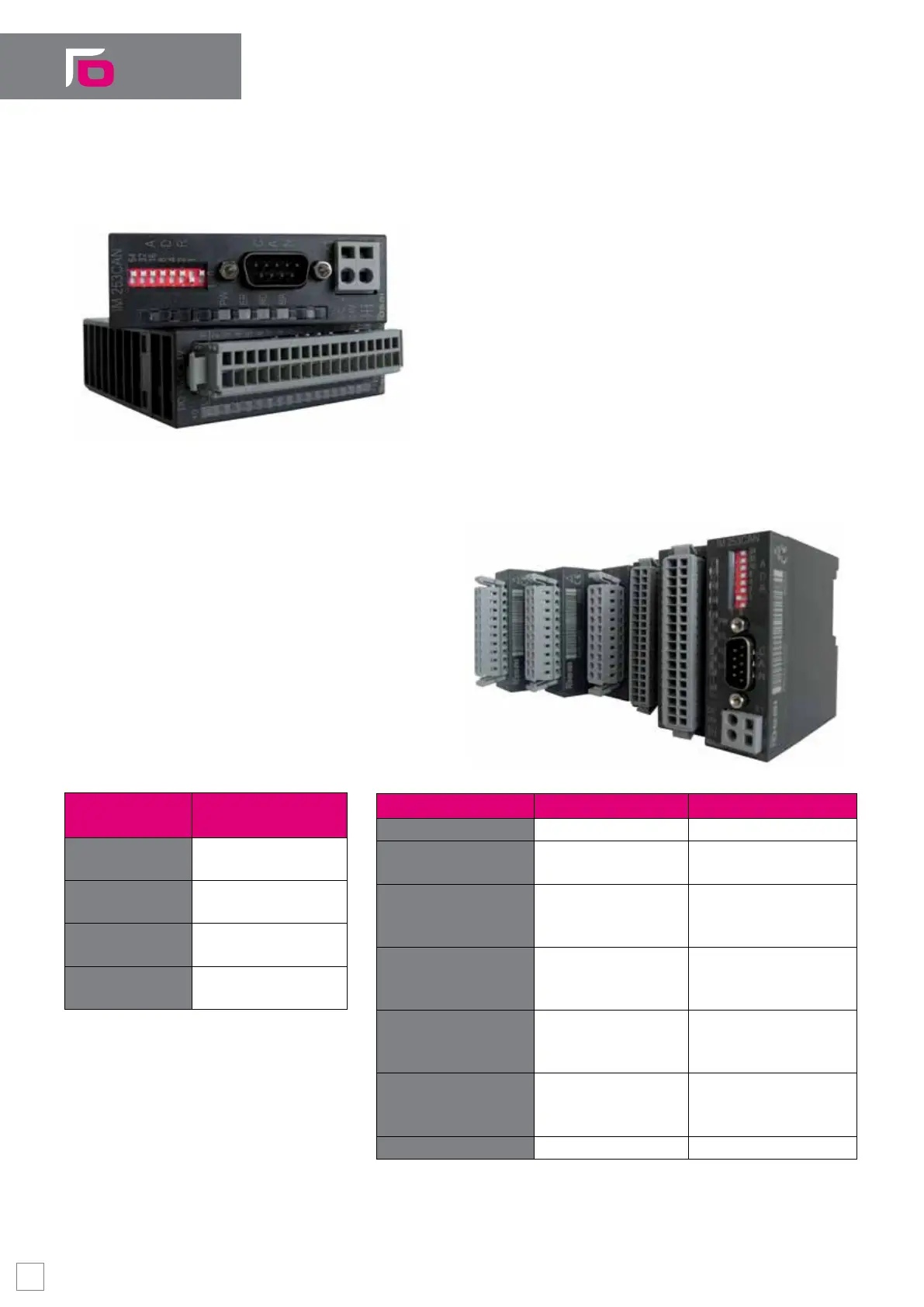

OPENrio V-200 - Bus coupler and modules
OPENrio V-200 is a compact and modular remote I/O product
line to control sensors and actuators through CANopen eldbus.
The modular structure of each RIO block guarantees a high
level of exibility, reducing the installation and maintenance
costs: in fact, in case of a malfunction, each block can be
easily replaced without disconnecting the cables. Moreover,
the status of all Inputs and Outputs is indicated by LED and the
connection of external cables is done by a cage clamps.
Each CANopen bus coupler handles up to 8 modules. The
individual module can interface digital or analogue signals.
The assembly is extremely simple. The RIO system modules are
snapped on the bus connector which is securely fastened on a
35 mm standard rail.
A wide range of modules is
available for acquisition of
digital and analog signals
and for the connection of
sensors and actuators.
The CANopen bus coupler
provides the 24Vdc to the
electronic of the peripheral
modules that are connected
through a bus connector.
Technical Data
Bus Coupler
CANopen
8SMPM253-1CA30
Power supply
(rated value)
24VDC
Reverse polarity
protection
Yes
Transmission
speed, min.
10Kbit/s
Transmission
speed, max.
1Mbit/s
Analog Modules 8SMPM231-1BD30 8SMPM234-1BD50
Number of I/O 4 Inp 2 Inp + 2 Out
Cable length
shielded
200m 200m
Input voltage
ranges
-10V….+10V
+1V…...+5V
0V……..+10V
-10V….+10V
Input current
ranges
-
+4mA…...+20mA
0mA….....+20mA
-20mA.…+20mA
Output voltage
ranges
-
-10V….+10V
+1V…...+5V
0V……..+10V
Output current
ranges
-
+4mA…...+20mA
0mA….....+20mA
-20mA.…+20mA
Resolution 12bit 16bit Inp – 12bit Out
58
