Hardware
CNC Turnkey solution

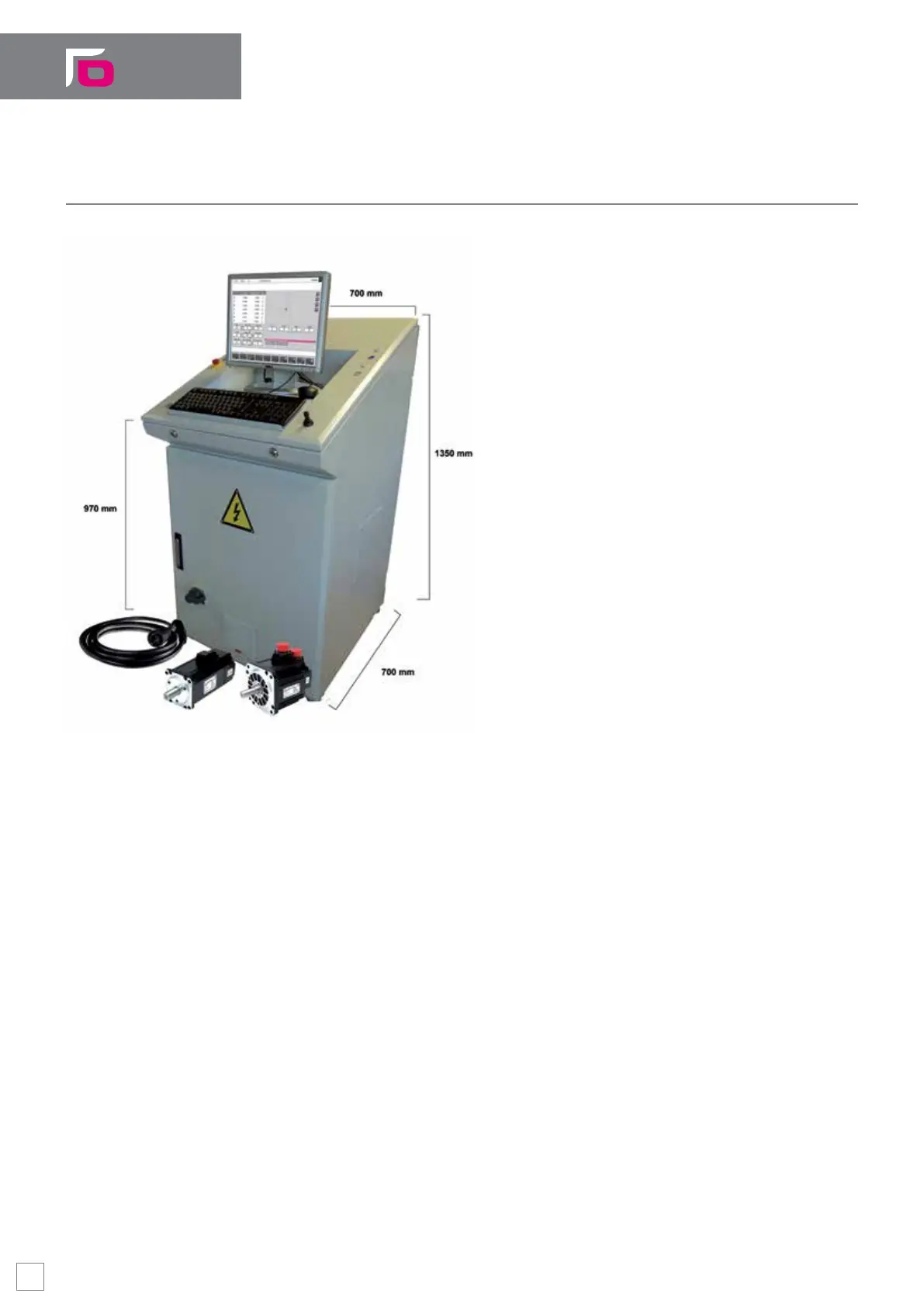

The OSAI CNC Turnkey is a complete system including
CNC, HMI, I/O and servo-drive, installed and pre-
wired in a compact electrical cabinet which can
be set according to specic requirements of the
customer. Designed to be installed both on new
machines and for NC machine retrots, Turnkey is an
ideal solution for OEMs and System Integrators using
laser/plasma/oxy cutting, metalworking centers
and machining centers.
Hardware
Turnkey devices (CNC, servo-drives, I/Os and control
panel) are connected via EtherCAT eldbus at 100
MBaud and the basic package provides three axes
that can be increased up to a maximum of 8 axes or
4 axes and a spindle inverter.
The standard operator interface is the OPENconsole
COMPACT, a 15” LCD compact panel with touch
Screen, keyboard, touch-pad and integrated
operator pushbuttons, but it is also possible to
host a commercial PC (PC, Monitor, Keyboard and
mouse) through a mechanical kit that guarantees
the ergonomics in applications.The CNC Turnkey can
also be supplied with the remote interface TOP5, a portable terminal including a 6.5”
touch screen LCD display, electronic handwheel, operator pushbuttons, emergency push-
button and USB port for program loading.
The Windows based front-end allows the operator the typical exibility of the PC
environment, together with the reliability of an industrial CNC. The ODM (OSAI Device
Manager) used in this environment is a graphical system for machine tuning including the
AMP (Adjustable Machine Parameters) allowing the integrator to manage the entire basic
conguration, the geometry and the machine kinematics.
Software
The OSAI CNC Turnkey is ready to use not only regarding the hardware; in fact, it is
offered with a complete preset machine logic program (active on the SoftPLC integrated
in the CNC), which allows rapid commissioning and considerably reducing the time to
market of the machine.
