Hardware
Technical Data
OPENconsole COMPACT
Part Number 2SMPM6222/0C
Power Supply 24 VDC
Monitor Section
Display size 15''
Backlight LED
Resolution (pixels) 1024 x 768
Connection VGA / DVI
Display ratio 4/3
Touch Screen Resistive
Control Panel Section
Emergency Stop Optional
Mechanical push buttons 2 general purpose (optional)
CNC Mode selector Cycle Start, Cycle Stop (Hold), Reset,
Mode selector: MDI, Auto, Block by block, Jog, Incremental Jog,
Homing, Return to prole, Handwheel (all congurable)
Rotary selectors Feedrate (congurable)
Spindle speed rate (congurable)
OEM Custom keys 6 free keys + 8 (mode selector keys)
Connection EtehrCAT bus
Keyboard Section
Layout US
Pointing device Touchpad
Technology Bubble keys with metal dome
Operating temperature 0°C to +50°C
Relative humidity 10% - 90% no condensation

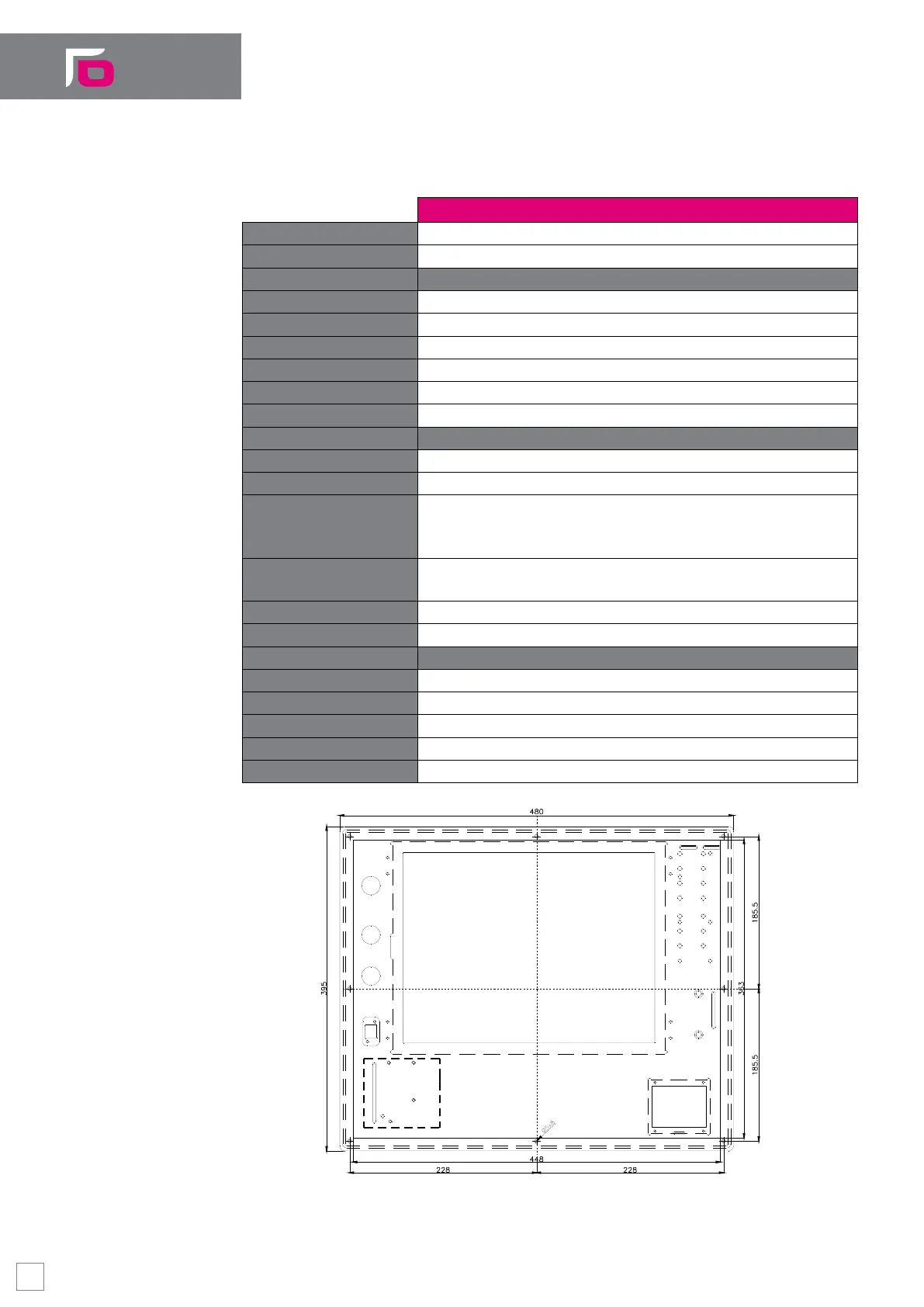

OPENconsole COMPACT dimensions - front and side view
