Outback MATE User Manual

19

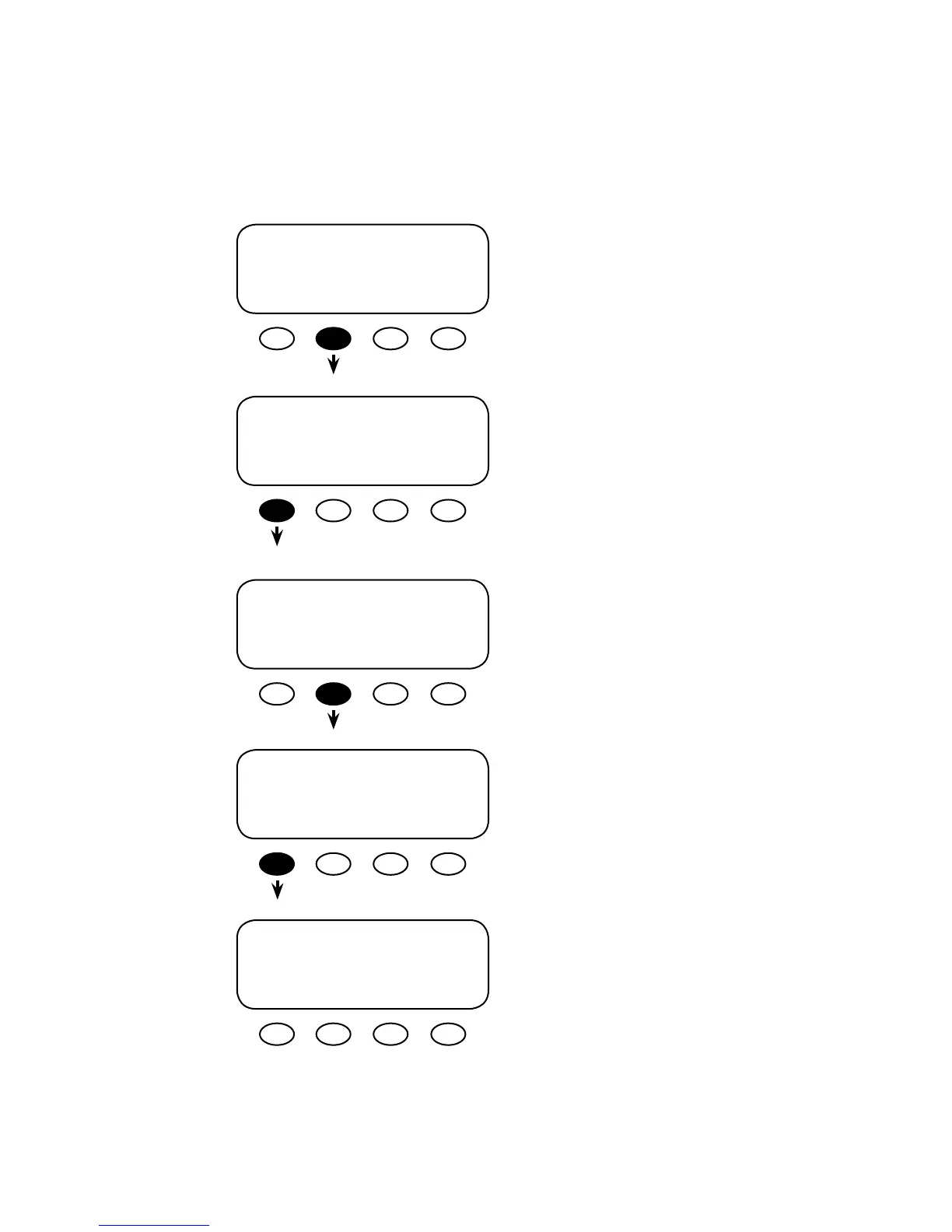

Although the OutBack MATE menu display screens vary depending on the unit’s soware
version, the menu structures and navigation are the same for all versions. e MATE uses a
branching menu structure to display various OutBack products’ operation modes and statuses.
e menus are divided by product type and are categorized by either type of settings or the
information being displayed as shown in the following example.
MAIN---------------------------------
12:17:04P
SUM STATUS SETUP ADV
STATUS SCREEN------------------
choose device:
FX CC DC MAIN
STATUS/FX/PAGE 1----------------
choose category:
MODES METER BATT PG2
P00
inv kw zer kw
chg kw buys kw
DOWN STATUS PORT
STATUS/FX/METER–----------P00
output vac
voltage
DOWN UP TOP PORT
All the screens showing the FX’s AC meters are
grouped together in one menu branch allowing
the user to nd the required meter with a mini-
mum of key presses.

Outback MATE Specifications

General

Display	LCD
Operating Temperature Range	-20°C to 60°C
Mounting	Wall Mount
Type	System Display and Controller
Communication	RS232
Communication Ports	RS232
