Outback MATE User Manual

101
e menu system displayed on the MATE will vary depending on the soware version the
MATE was programmed with at the time of manufacturing or during its last soware upgrade.
e OutBack MATE uses a branching menu structure which:
• Shows various OutBack products’ operation modes and status
• Displays by product type
• Categorizes by the type of settings or information being displayed
e following menus show an example of this menu structure. In this example, all the screens
that show FX connected batteries are grouped together in one menu tree allowing the user to
nd the required meter with a minimum of button presses.

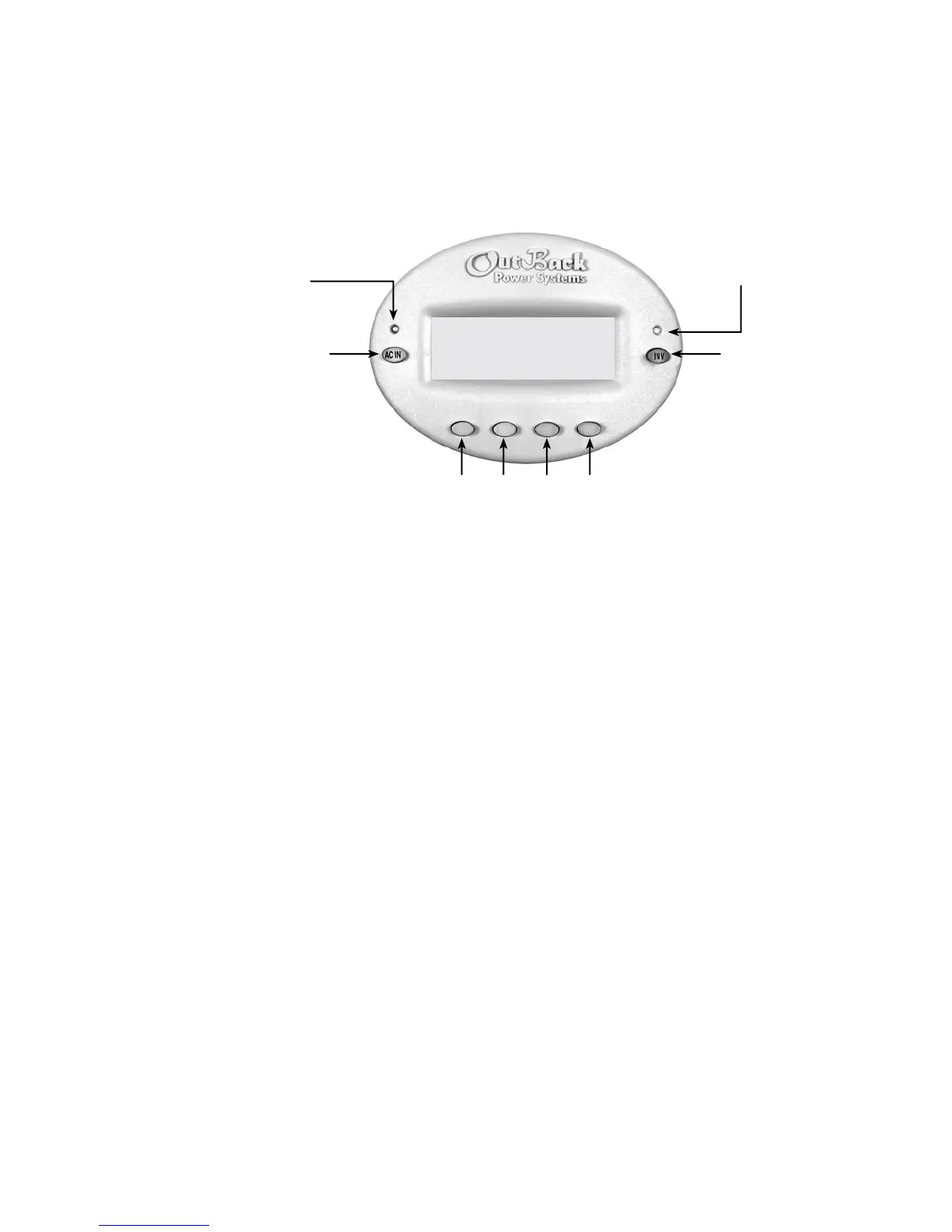

Dedicated Inverter
Control “Hot Key”
Menu Structure
Yellow Status Indicator,
AC Input LED
Green Status Indicator,
Inverter LED
Inverter “Hot Key”
Four “Soft Keys”
MAIN---------------------------
1:35:04p
SUM STATUS SETUP ADV

Outback MATE Specifications

General

Display	LCD
Operating Temperature Range	-20°C to 60°C
Mounting	Wall Mount
Type	System Display and Controller
Communication	RS232
Communication Ports	RS232
