ADV/MATE/AGS------------------------
Choose category:
QUIET VOLT
SETUP TIME START PG2
ADV/MATE/AGS/VSTART-----------
volt start 24.4 vdc
24 hr setting
DOWN AGS INC DEC
ADV/MATE/AGS/VSTART------------
volt start 23.6 vdc
2 hr setting
DOWN UP INC DEC
ere are three voltage start set points in AGS Mode that the user can adjust. Aer a generator
is started due to a Voltage Start setting, it will be stopped when the FX completes the absorb
charge or based on the VDC Genstop setting in the AGS Setup menu previously explained.
Voltage Start
NOTE: If the DC Genset is set to YES, the generator will only stop aer the battery voltage has
reached the VDC Genstop voltage for 15 minutes.
24-Hour Voltage Set Point
2-Hour Voltage Set Point

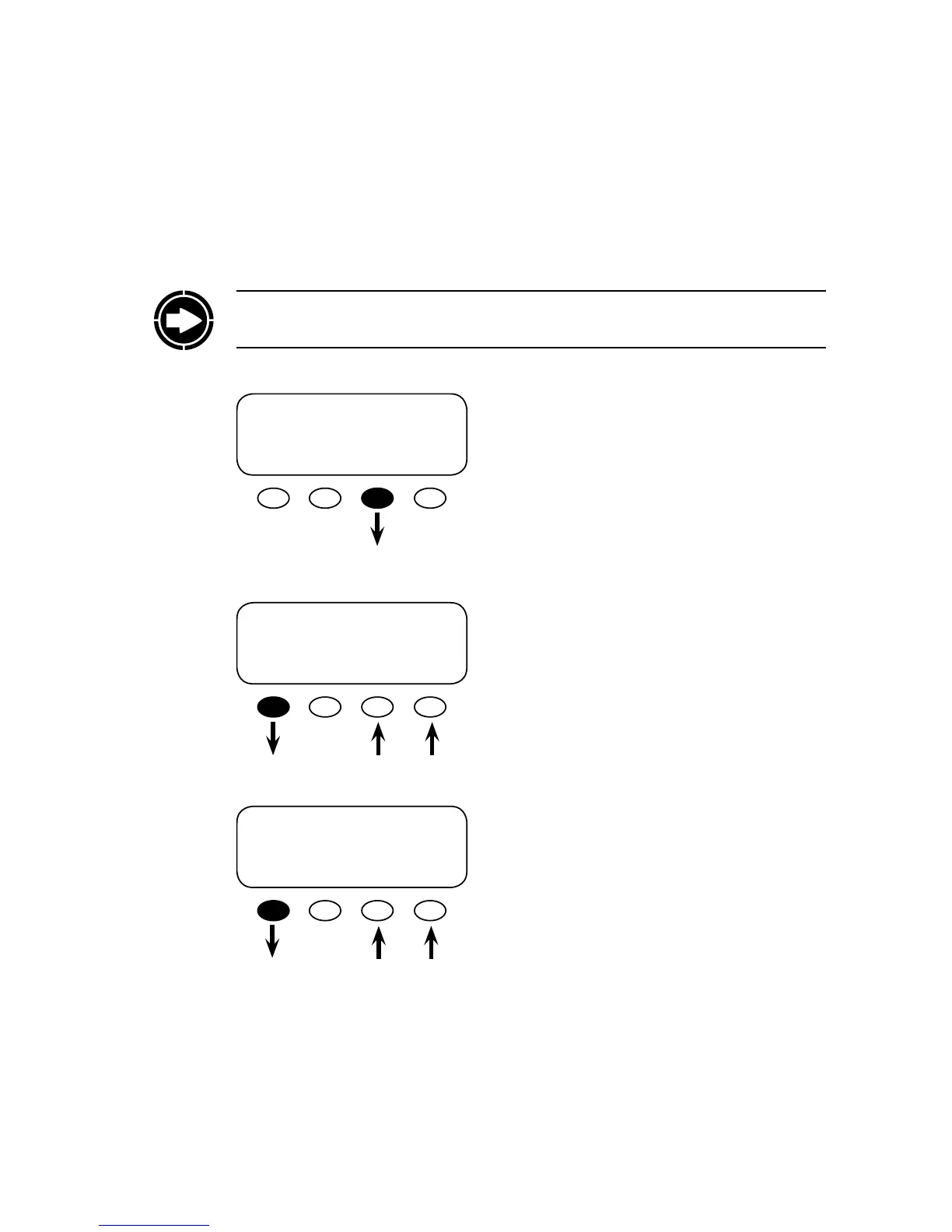

To get to the Voltage Start screen, press the
<VOLT START> so key on the ADV/MATE/
AGS screen.
If the battery voltage falls below this set point, a 24
hour timer starts counting down. Upon reaching
zero, a start command is sent to the generator
unless it is currently Quiet Time. To change the
default settings, use the <INC> and <DEC> so
keys. When nished, press the <DOWN> so key
to go to the volt start 2 hr setting screen.
If the battery voltage falls below this set point, a 2
hour timer starts to count down. Aer reaching
zero, a start command is sent to the generator
unless it is currently Quiet Time. To change the
default settings, use the <INC> and <DEC> so
keys. When nished, press the <DOWN> so key
to go to the volt start 2 min setting screen.
