5.Front Panel Operation

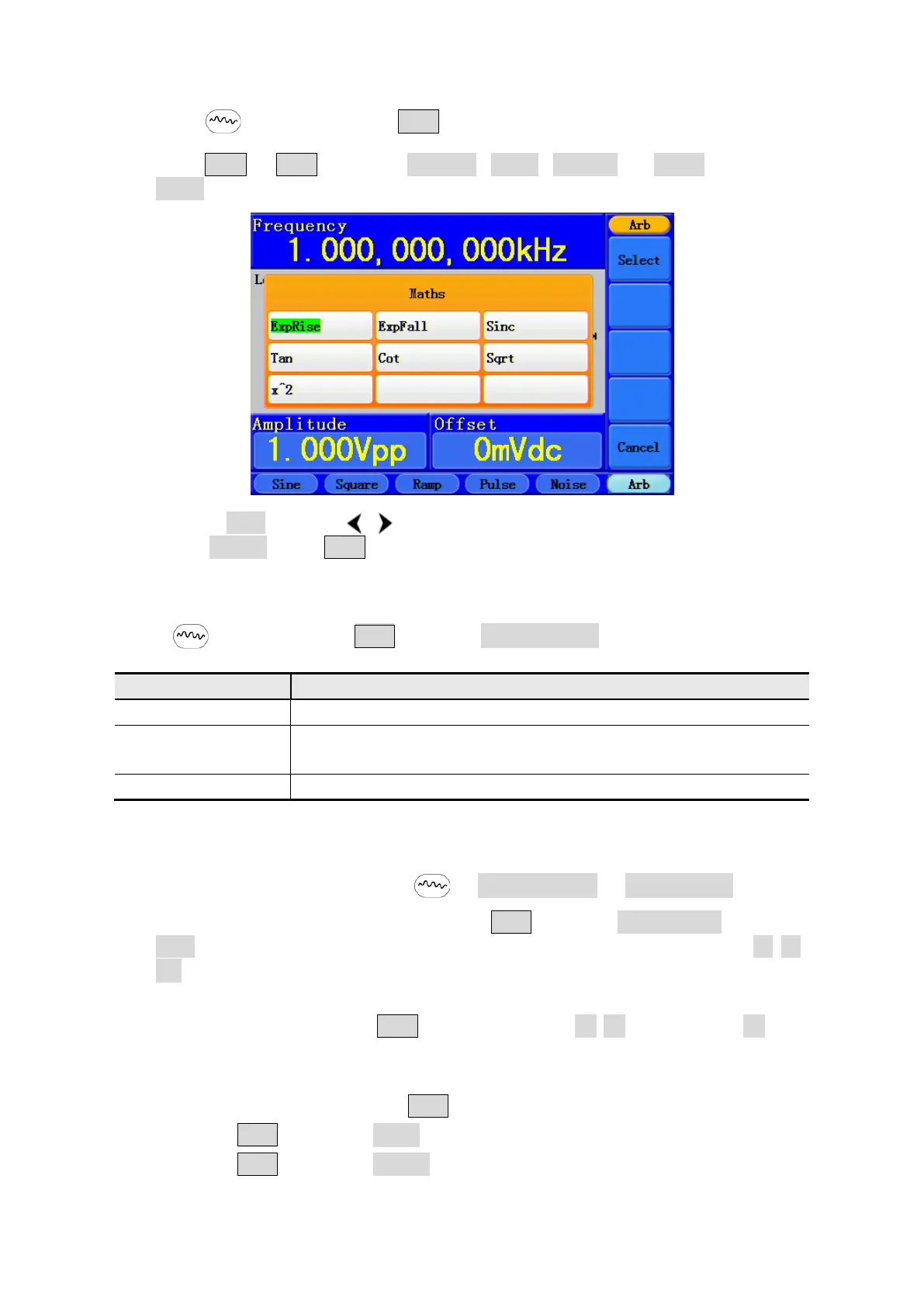

(1) Press button, then press F4 to enter the Built-in Wform menu.

(2) Press F1 ~ F4 to select Common, Maths, Window or Others. E.g. select

Maths to enter the following interface.

(3) Turn the knob or press / direction key to choose the desired waveform. E.g.

select ExpRise. Press F1 to output the Exponential Rise waveform.

The User-Definable Waveform

Press button and press F5 to select "Editable Wform".

Menu item

Instruction

Create Wform

Create a new waveform.

Select Wform

Select the waveform stored in internal storage (FLASH) or U disk

(USBDEVICE).

Edit Wform

Edit the stored waveform.

How to Create a New Waveform

(1) Enter the operation menu: Press →Editable Wform →Create Wform.

(2) Set the number of waveform points: Press F1 to select "Wform Points", turn the

knob or press the number keys to input the desired value and choose the unit. X1, XK,

XM respectively represent 1, 1000, 1000,000. The waveform points range is 2～

1000,000.

(3) Set the interpolation: Press F2 to switch between On/Off. If you choose On, the

points will be connected with beelines; otherwise, the voltages between two

consecutive points will not change, and the waveform looks like a step-up one.

(4) Edit the waveform points: Press F3 to enter the operation menu.

 Press F1 to choose "Points", input the number of the point to be edited.

 Press F2 to choose "Voltage", input the voltage for the current point.

 Repeat the step above, set all the points to your needs.

Owon AG4101 User Manual
