Owon DGE2000 Series User Manual

5.Panel Operation
7
11
Amplitude / high level, depending on the right highlighted
menu item
12
Frequency/Period, depending on the highlighted menu item on
the right
13
Display current waveform
5. Panel Operation
Channel Setting
Select the channel for configuration
Before configuring waveform parameters, you must first select the channel you
want to configure. Press CH1 /CH2 to switch to the desired channel, and the
user interface displays channel information.
To Display/Edit Both Channels
Press Both button to display the parameters of both channels.
To switch channel: Press CH1/2 to switch the editable channel.
To select waveform: Press Waveform selection buttons to select waveform
of current channel.
To select parameter: Press Menu selection keys to choose the Parameter 1
to Parameter 4（Corresponding keys 2-4）; Press it again to switch the
current parameter such as Frequency/Period.
To edit parameter: Turn the knob to change the value of cursor position.
Press / direction key to move the cursor. (The number keys can not be
used to input.)
Parameter 1
Parameter 2
Parameter 3
Parameter 4
Waveform
CH1
Waveform
CH2
Parameter 1
Parameter 2
Parameter 3
Parameter 4

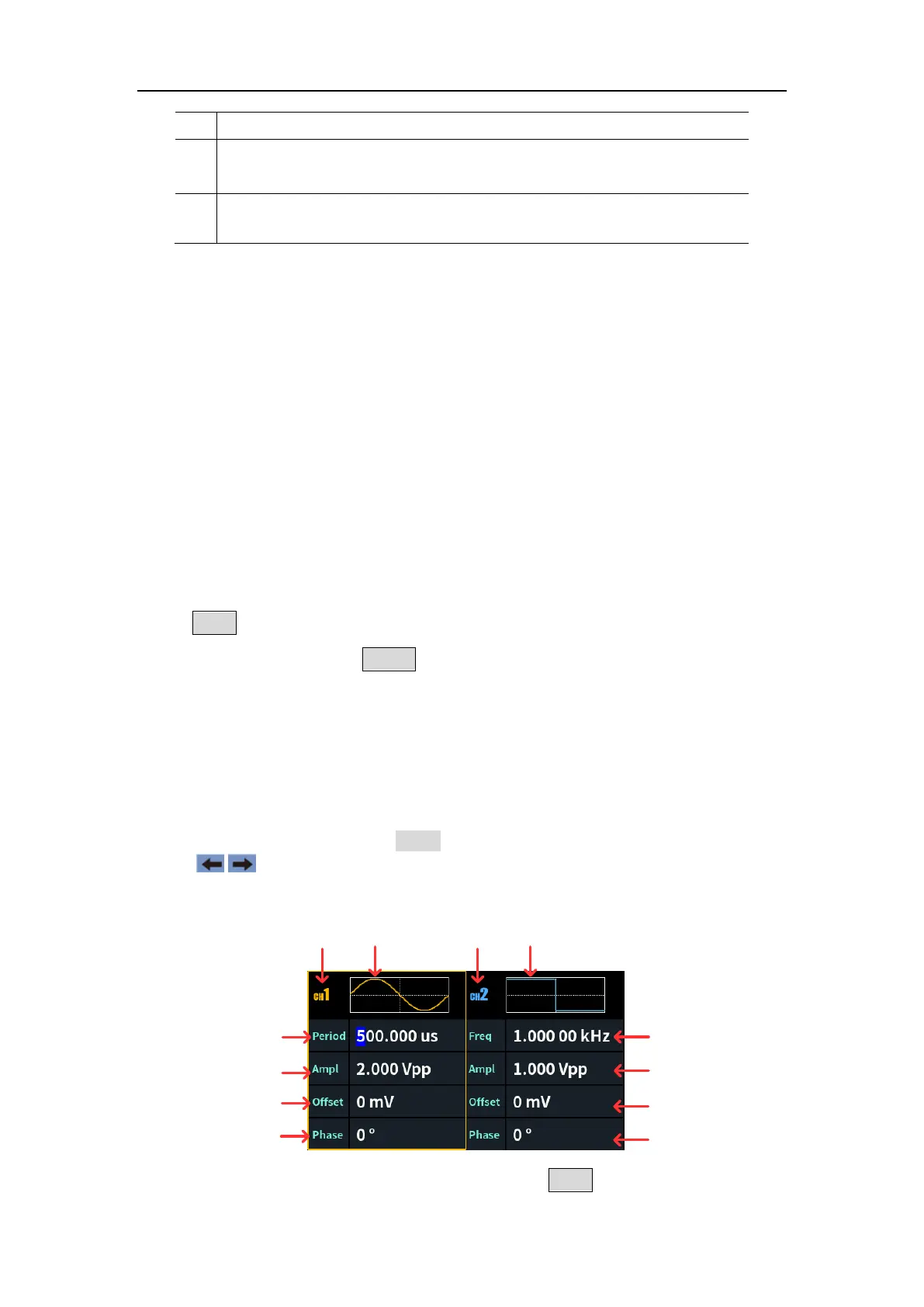

Figure 5-1: The User Interface of Both button
