5.Panel Operation
11
Load
Output
switch
Parameter 1
Parameter 2
Parameter 3
Parameter 4
Square
Period
High low - level
Channel
Current
signal
Setting menu of
Square signal

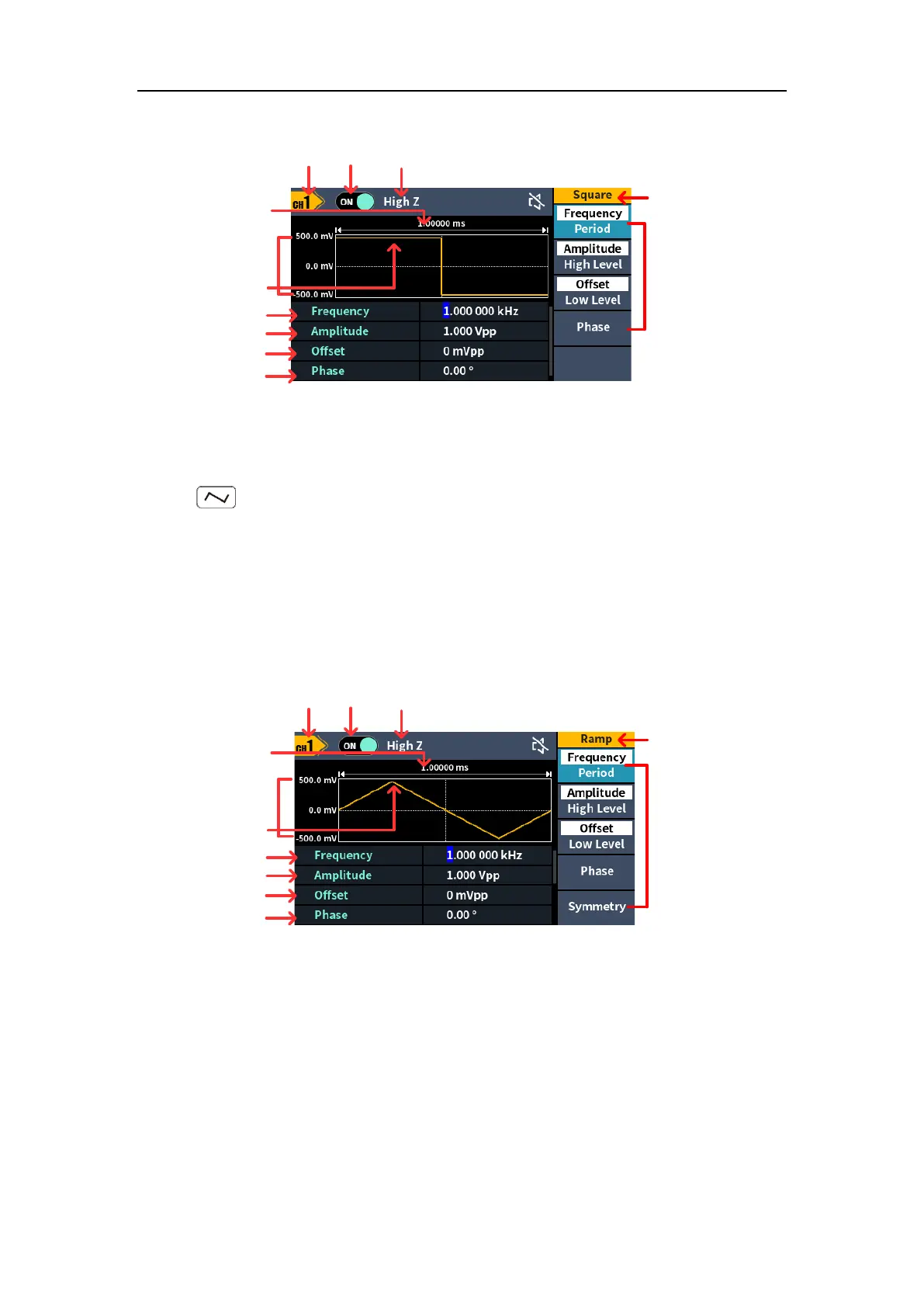

Figure 5-4: Square wave user interface
Output Ramp Wave
Press , the screen displays the user interface of the ramp wave. The
Ramp waveform parameters can be set by operating the Ramp setting menu
on the right.
The ramp menu includes: Frequency/Period, Amplitude/High Level,
Offset/Low Level, Phase, and Symmetry.
To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, Phase,
please refer to Output Sine Wave on page 8.
Load
Output
switch
Parameter 1
Parameter 2
Parameter 3
Parameter 4
Ramp
Period
High low - level
Channel
Current
signal
Setting menu of
Ramp signal
