Owon DGE2000 Series User Manual

4.Quick Start
4
4. Quick Start

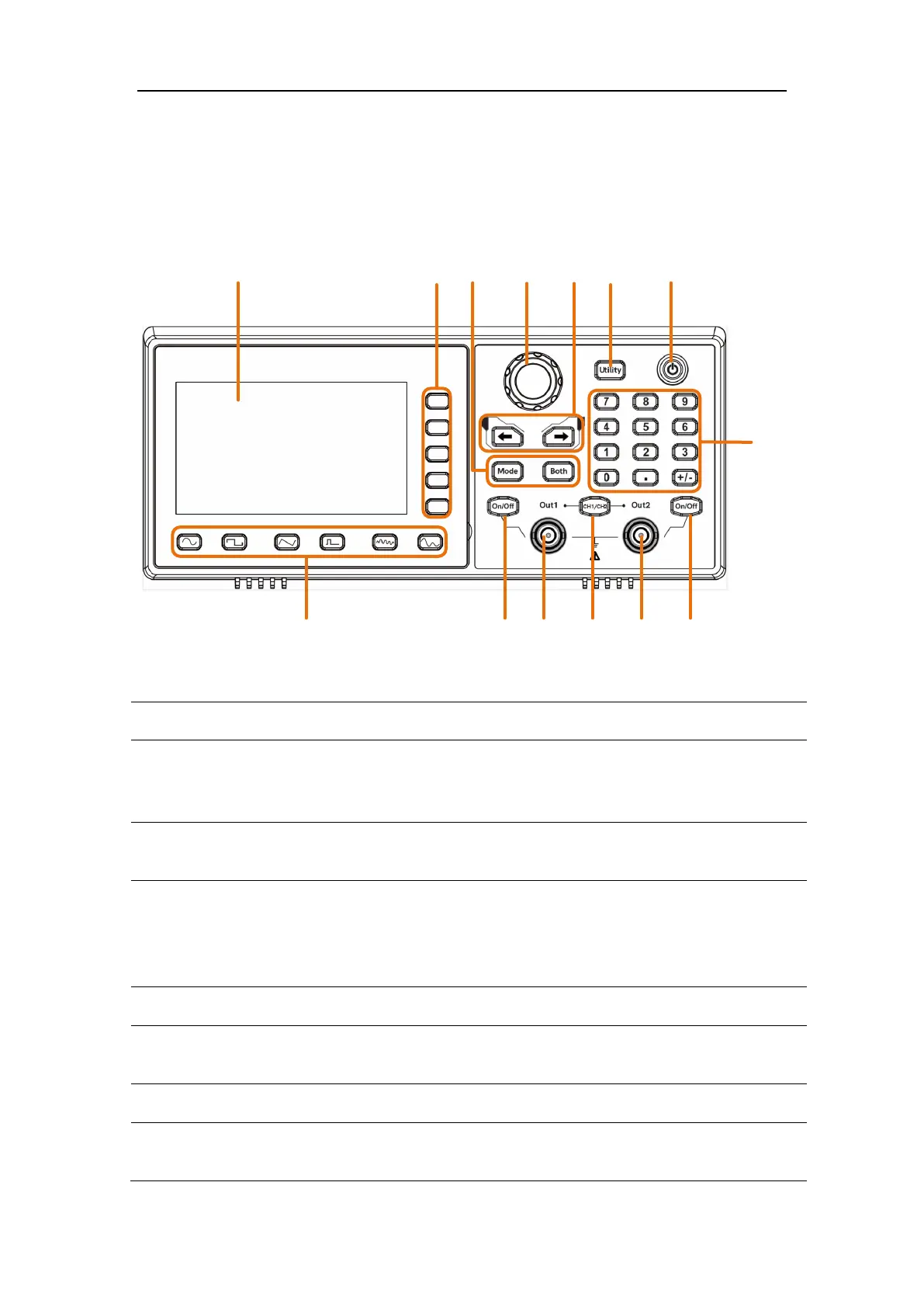

Front Panel Overview
1
2
4
6
7
5
911 1013
3
1214
8
Figure 4-1: Front Panel Overview
1
LCD
Display the user interface
2
Menu
selection
keys
Includes 5 keys to activate the corresponding menu
3
Operation
keys
Mode：output the modulated waveform
Both：Display the editable parameters of both channels.
4
Knob
Change the currently selected value, also used to select
the arbitrary waveform types and arb data file name.
When in the sweep manual mode, press this konb to
trigger manually.
5
Direction key
Move the cursor of the selected parameter
6
Operation
key
Utility：set the utility function
7
Power button
Turn on/off the waveform generator.
8
Number
keypad
Input the parameter
