Palm Pre 2 - Get to Know Your Phone

12 Chapter 2 : Basics
Get to know your phone

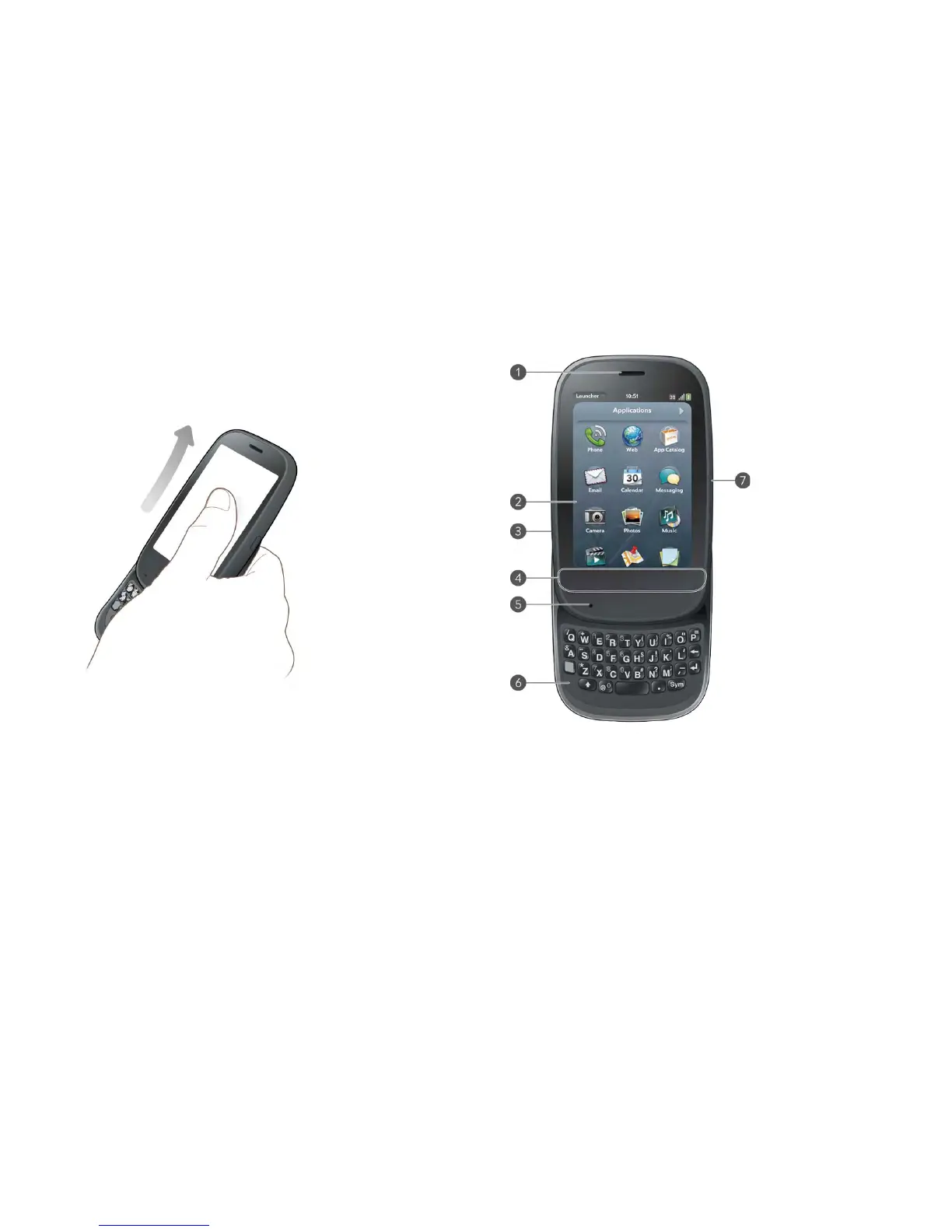

Slide out the keyboard
• Hold the phone as shown below and gently push up.
Front view
1 Earpiece
2 Touchscreen: Tap and make other gestures directly on the screen. See To u c h s c r e e n .
3 Volume
4 Gesture area: Make the back gesture and begin other gestures here. See Use gestures: tap,
swipe, drag, flick, pinch.
5 Microphone
6 Keyboard: See Use the keyboard.
7 Charger/microUSB connector
