Panasonic 140 - Electric Specifications; Operating Limits

13

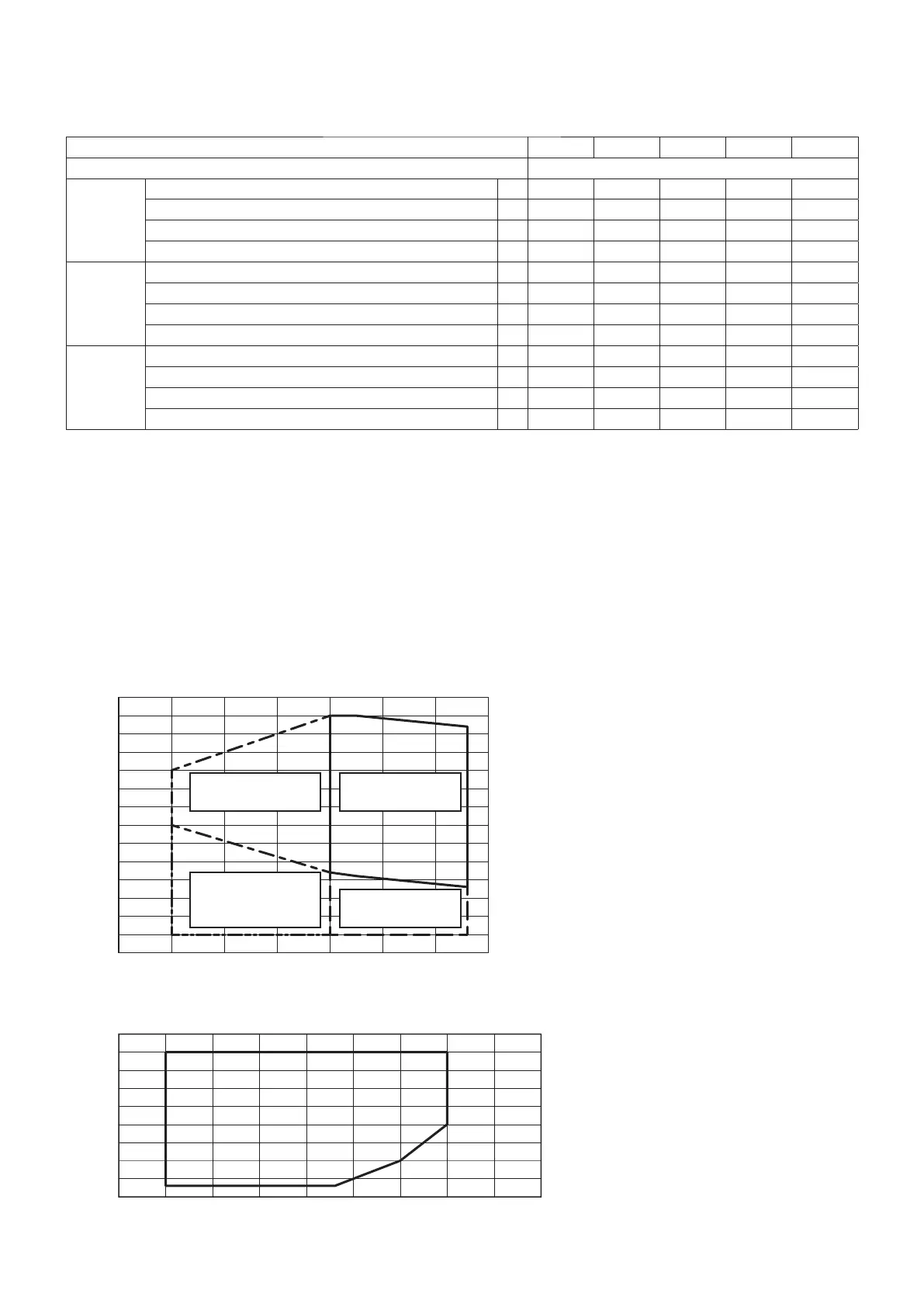

8.3. Electric specifi cations
140 150 170 190 210
Power supply 400V / 3~ N / 50Hz
Without
pump
Maximum current A 108 119 136 153 170
Fuse rating aM A 125 125 160 160 200
Total starting current (without Soft starter) A 251 262 324 341 396
Total starting current (with Soft starter) A 130 141 161 178 201
With
Standard
pump
Maximum current A 115 125 142 159 176
Fuse rating aM A 125 160 160 200 200
Total starting current (without Soft starter) A 257 268 331 347 403
Total starting current (with Soft starter) A 136 147 168 184 208
With High
pressure
pump
Maximum current A 119 130 146 163 180
Fuse rating aM A 125 160 160 200 200
Total starting current (without Soft starter) A 262 272 335 352 407
Total starting current (with Soft starter) A 141 151 172 189 212
IMPORTANT
* This data is given for guidance only. Values must be checked and verifi ed at commissioning according to prevailing
standards. They depend on the installation and the cables used.
It is mandatory to supply a main fuse or suitable circuit breaking device on the power supply.
• Fuses not supplied
• Cables not supplied
8.4. Operating limits
8.4.1. Cooling mode
55
50
45
40
35
30
25
20
15
10
5
0
-5
-10
-15
25
20
15
10
5
0
-5
-10
-15
-20
-15 -10 -5 0 5 10 15 20
15 20 25 30 35 40 45 50 55 60
Air temperature (°C)Air temperature (°C)
Leaving water temperature (°C)
Leaving water temperature (°C)
BRINES or WATER +
GLYCOL
BRINES or WATER +
GLYCOL +
Fan speed controller
WATER
WATER +
Fan speed controller
8.4.2. Heating mode*
* 55°C can be achieved with periodic operation.
Please contact your local Panasonic sales or
service representative for full details.
