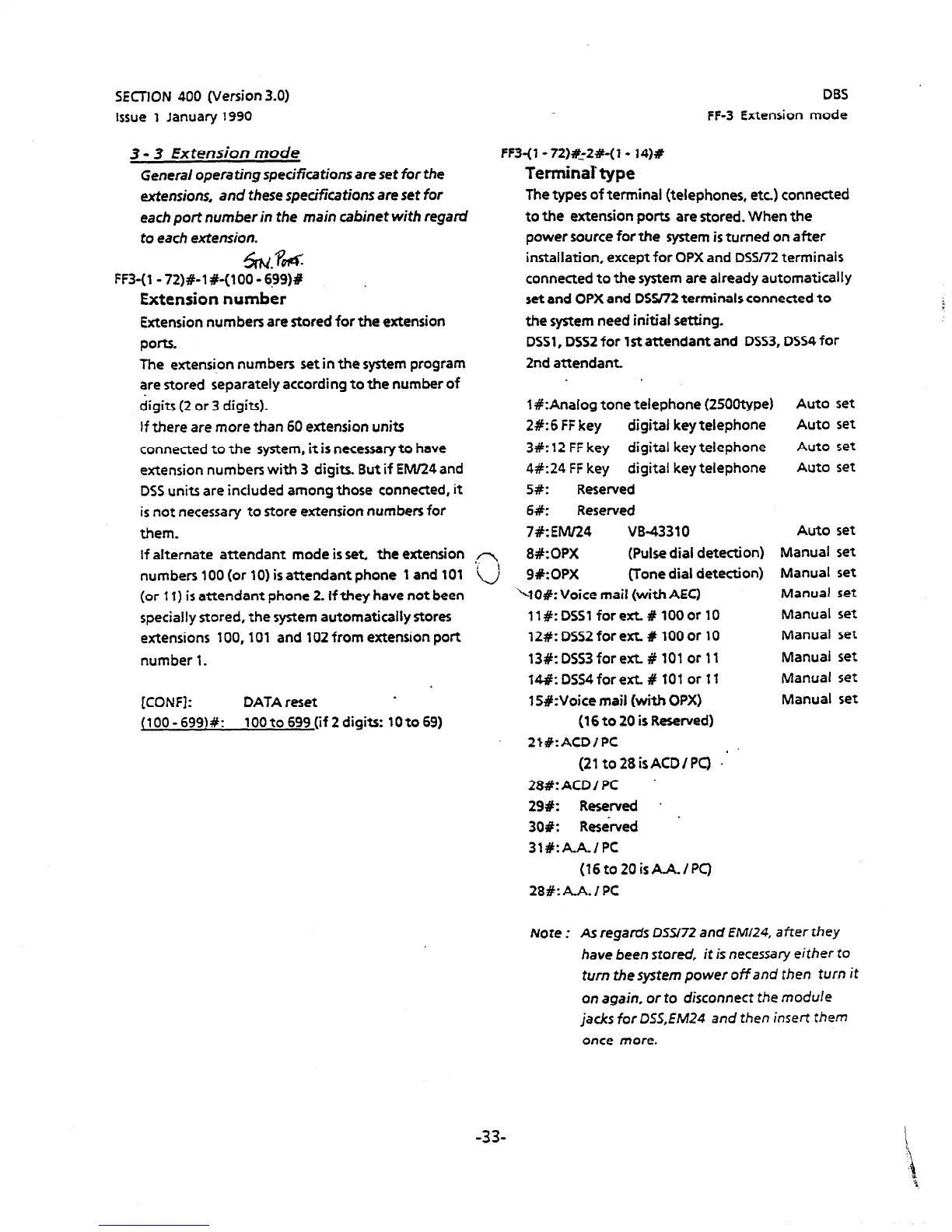

SECTION 400 (Version 3.0)
DBS
Issue 1 January 1990
FF-3 Extension mode
3 - 3 Extension mode
General operating
specifications are set for
the
extensions, and these specifications
are
set for
each port number in the main cabinet with regard
to each extension.
FF3-(l -72)#-l#-(loo-699)# .
Extension number
Extension numbers are stored for the extension
portJ.
The extensi-on numbers set in the system program
are stored separately according to the number of
digits (2 or 3 digits).
If there are
more
than 60 extension units
connected to the system, it is necessary to have
extension numbers with 3 digits. But if EM/24 and
DSS units are included among those connected, it
is not necessary to store extension numbers for
them.
If alternate attendant mode is set, the extension ,9
numbers 100 (or 10) is attendant phone 1 and 101 u
(or 11) is attendant phone 2. If they have not been
specially stored, the system automatically stores
extensions 100,101 and 102from extension port
number 1.
[CONF]: DATA reset
I1 00 - 699)#: 100 to 699 (if 2 digits: 10 to 69)
FF3-(1- 72)#:2#-(1-
141%
Terminal’ type
The types of terminal (telephones, etc.) connected
to the extension ports are stored. When the
power source for the system is turned
on
after
installation, except for OPX and DSS/72 terminals
connected to the system are already automatically
set and OPX and DSS/72 terminals connected to
the system need initial setting.
DSSl, DSW for 1 st attendant and DSS3, DSS4 for
2nd attendant
1 #:Analog tone telephone (2500type) Auto set
2#:6 FF key digital keytelephone Auto set
3#: 12 FF key digital key telephone Auto set
4#:24 FF key
digital key telephone
Auto set
5#:
Reserved
6#: Reserved
7#: EM/24 VB-43310
Auto set
8#:OPX (Pulse dial detection) Manual set
9R:OPX
(Tone dial detection)
Manual set
klO#: Voice mail (with AEC) Manual
set
11#:DSSlforexL#lO0or10
Manual set
12#:DSS2forexL#lOOorlO Manual set
13#: DSS3 for eti # 101 or 11
Manuai set
14#: D554for ext # 101 or 11
Manual set
1 S#:Voice mail (with
OPX)
Manual set
(16 to 20 is Reserved)
2l#:ACD/ PC
(21 to28isACD/PC) ,’
288:ACDIPC
29#: Reserved .
3OP: Reserved .
31#:kklPC
(16to2OisAA./PC)
28P: AA. I PC
Note : As regards DSSi72 and EMJ24, after
they
have been stored, it is necessary either to
turn the system power off and then turn it
on again, or
to
disconnect the module
jacks for DSS,EM24 and then insert them
once more.
-33-
