4. Input/output signal settings

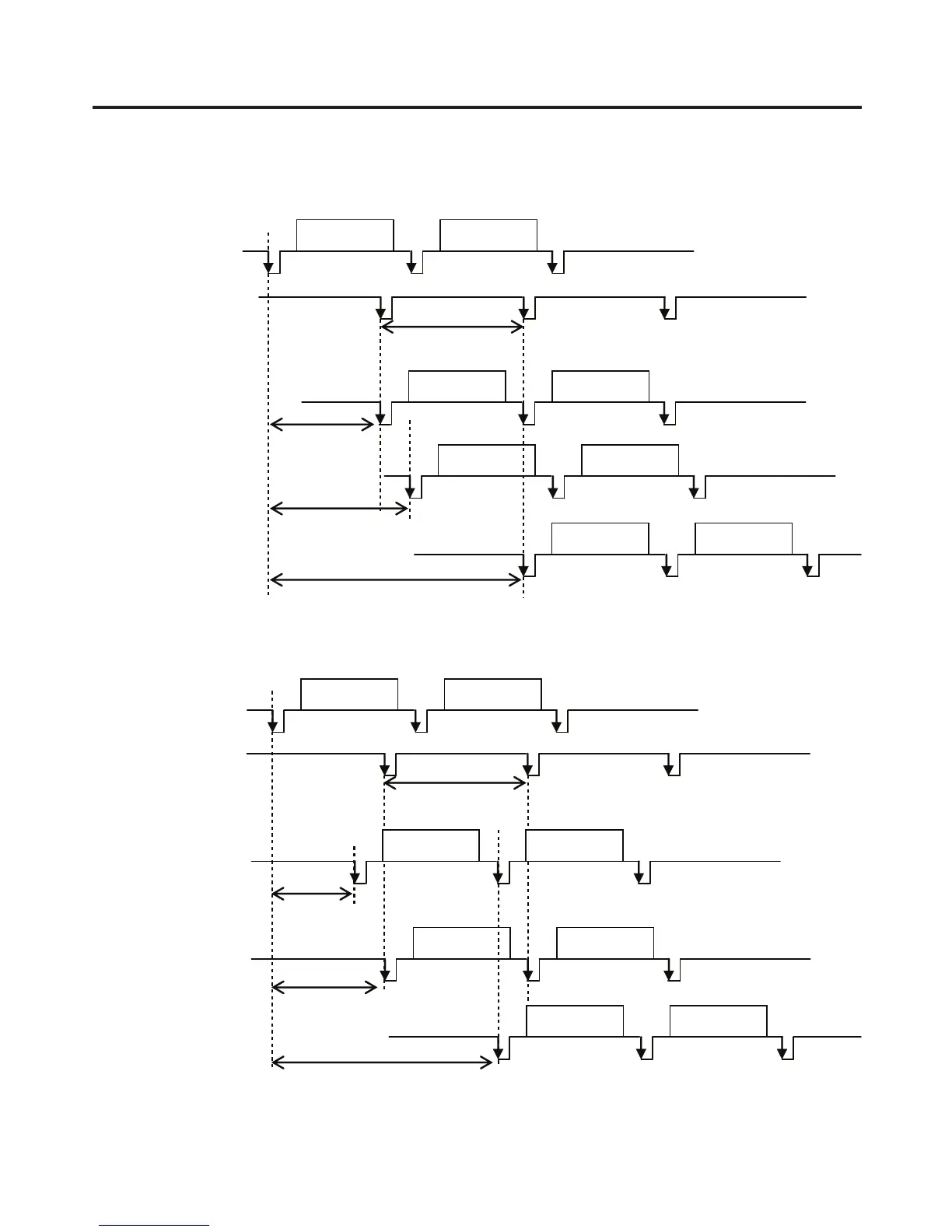

<Phase relationship between input signals and output signals>
(for 1080/59.94i format)
(Example 1)
F1 F2
F1 F2
F1 F2
F1 F2
Input signals
(non-synchronized)
1F (frame)
Sync signal (Ref)
Output signal 1
Output signal 2 (90H)
Output signal 2 (1F)
Max. 1F
Max. 2F
Max. 1F+90H
(Example 2)
F1 F2
F1 F2
F1 F2
F1 F2
Input signals
(non-synchronized)
1F (frame)
Sync signal (Ref)
Output signal 1
Output signal 2 (90H)
Output signal 2 (1F)
Max.
1F–90H
Max. 2F–90H
Max. 1F
