Panasonic CS-Z25VKEW Installation Instruction

56

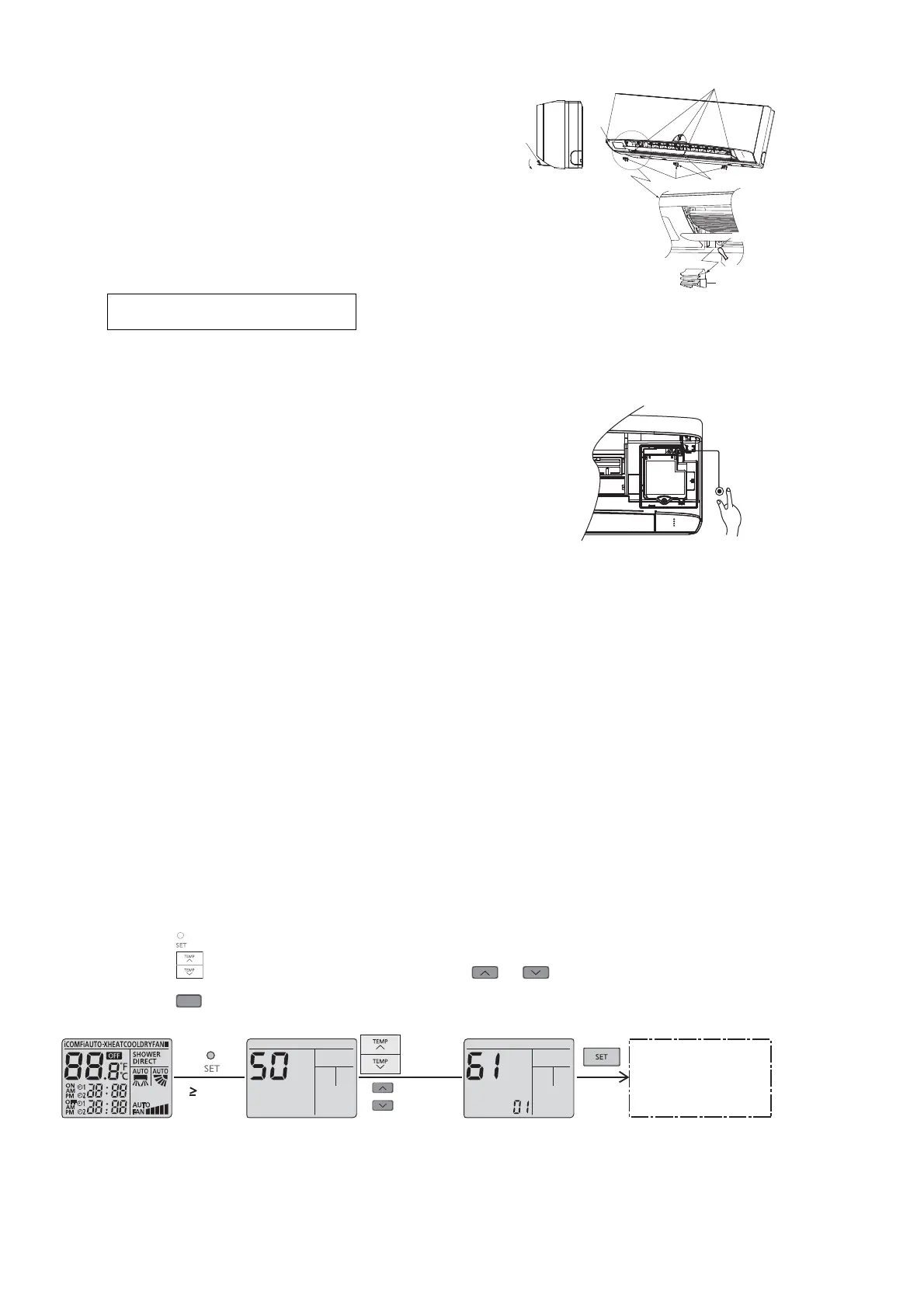

12.2.6 How to Take Out Front Grille
Please follow the steps below to take out front grille if
necessary such as when servicing.
1 Set the vertical airflow direction louvers to the
horizontal position.
2 Remove the 2 caps (1/2 ~ 1.75HP) or 3 caps
(2.0 ~ 2.5HP) on the front grille as shown in
the illustration at right.
3 And then remove the 3 (1/2 ~ 1.75HP) or
4 (2.0 ~ 2.5HP) mounting screws.
4 Pull the lower section of the front grille
towards you to remove the front grille.
When reinstalling the front grille, carry out
above step 2 - 3 in the reverse order.
• Use Test pen to
remove Cap
Screw
Test pen
Cap
Vane
(Move the
vane to
downward)
Front
grille
Screw
(only for 2.0HP ~ 2.5HP model)
Cap
12.2.7 Auto Switch Operation
The below operations will be performed by pressing the “AUTO” switch.
1 AUTO OPERATION MODE
The Auto operation will be activated immediately once the Auto
Switch is pressed and release within 5 sec..
2 TEST RUN OPERATION (FOR PUMP DOWN/SERVICING
PURPOSE)
The Test Run operation will be activated if the Auto Switch is
pressed continuously for more than 5 sec. to below 8 sec..
A “pep” sound will occur at the fifth sec., in order to identify the
starting of Test Run operation.
3 HEATING TRIAL OPERATION
Press the “AUTO” switch continuously for more than 8 sec. to below 11 sec. and release when a “pep pep”
sound is occured at eight sec. (However, a “pep” sound is occurred at fifth sec..) Then press Remote
controller “AC Reset” button once.
Remote controller signal will activate operation to force heating mode.
4 REMOTE CONTROLLER RECEIVING SOUND ON/OFF
The ON/OFF of Remote controller receiving sound can be change over by the following steps:
a) Press “AUTO” switch continuously for more than 16 sec. to below 21 sec..
A “pep”, “pep”, “pep”, “pep” sound will occur at the sixteenth sec..
b) Press the “AC Reset” button once, “pep” sound will occur indicates that Remote controller receiving
sound setting mode is activated.
c) Press “AUTO” switch again. Everytime “AUTO” switch is pressed (within 60 sec. interval), Remote
controller receiving sound status will be reversed between ON and OFF.
Long “peep” sound indicates that Remote controller receiving sound is ON.
Short “pep” sound indicates that Remote controller receiving sound is OFF.
12.2.8 Heating Only Operation
1 Use remote controller to set heating only operation. When the unit in standby mode, follow the steps below:
a) Press
continuously for more than 5 seconds to enter special setting mode.
b) Press
to choose function 61, and then press or to set “01”.
c) Press
SET
to activate “Heating only operation”.
T 5secs
Special setting mode
(Function
no.)
(Options)
Activate or deactivate
“Heating only
operation”

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
