Panasonic CS-Z25VKEW Installation Instruction

57

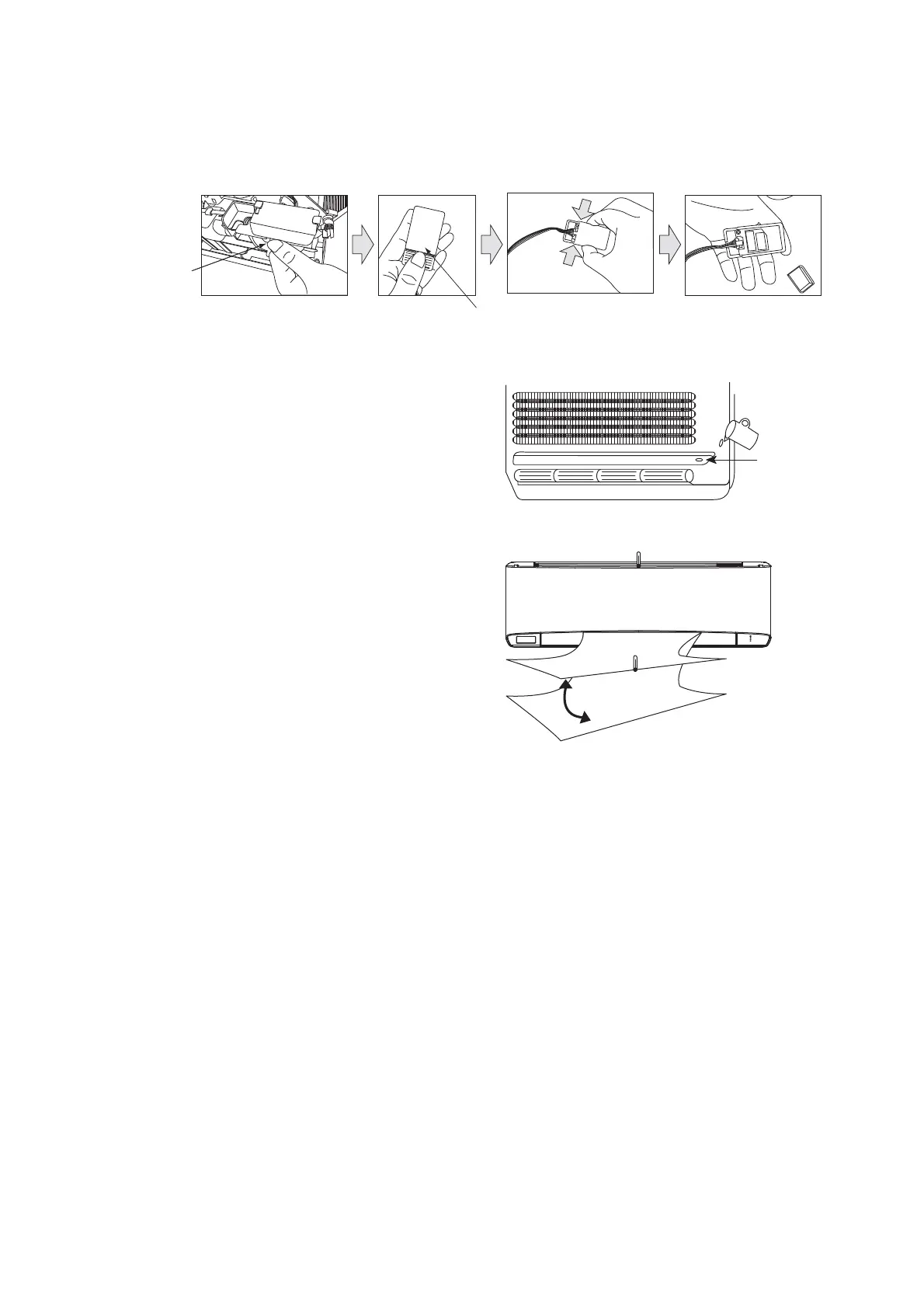

12.2.9 How to Replace Network Adapter
 Remove the front grille (refer how to take out front grille) from the unit.
 Remove the network adapter box by releasing the hook (Figure 1.0).
 Remove the cover by unclipping it and pulling it out (Figure 1.1).
 Remove the top casing by pressing the side of the network adapter box. (Figure 1.2)
 After that, network adapter can be easily replaced (Figure 1.3).
Hook
Unclip & pull down
Press
Press
Figure 1.0 Figure 1.1 Figure 1.2 Figure 1.3
12.2.10 Check the Drainage
 Open front panel and remove air filters.
(Drainage checking can be carried out without
removing the front grille.)
 Pour a glass of water into the drain tray-styrofoam.
 Ensure that water flows out from drain hose of the
indoor unit.
Drain tray-styrofoam
12.2.11 Evaluation of the Performance
 Operate the unit at cooling/heating operation
mode for fifteen minutes or more.
 Measure the temperature of the intake and
discharge air.
 Ensure the difference between the intake
temperature and the discharge is more than 8°C
during Cooling operation or more than 14°C
during Heating operation.
Discharge air

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
