4-26
4

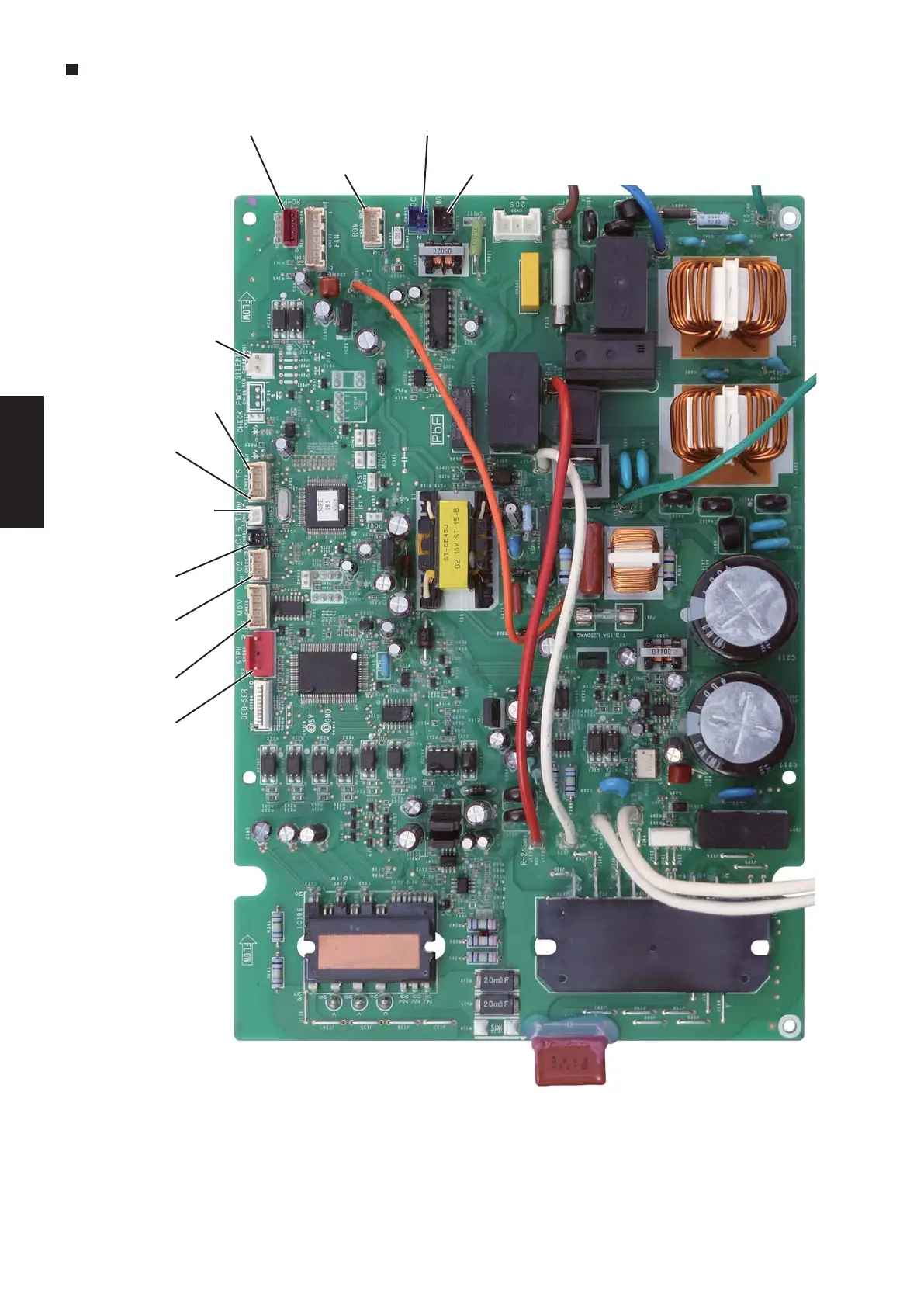

CR-PCB
CR-60PEY1E5:Bottom side (U-60PEY1E5)
EMG plug
(EMG)
ROM
(CN012)
SILENT
Outdoor air temp. (TO)
Comp discharge
temp. (TD)
(4P pin 1-2)
RC plug (RC-P)
Suction temp. (TS)
(4P pin 3-4)
High-pressure
switch plug (63PH)
OC plug (OC)
MOV plug (MOV)
Intermediate
temperature sensor
in heat exchanger
(C2)
Inlet temperature
sensor in heat
exchanger (C1)
SM830231-02ī™€Singleī™€ę¬§å·ž.indbī˜ī˜ī˜26SM830231-02ī™€Singleī™€ę¬§å·ž.indbī˜ī˜ī˜26 2014/09/09ī˜ī˜ī˜21:15:292014/09/09ī˜ī˜ī˜21:15:29
