8-30
8
8-20. CZ-RWST3

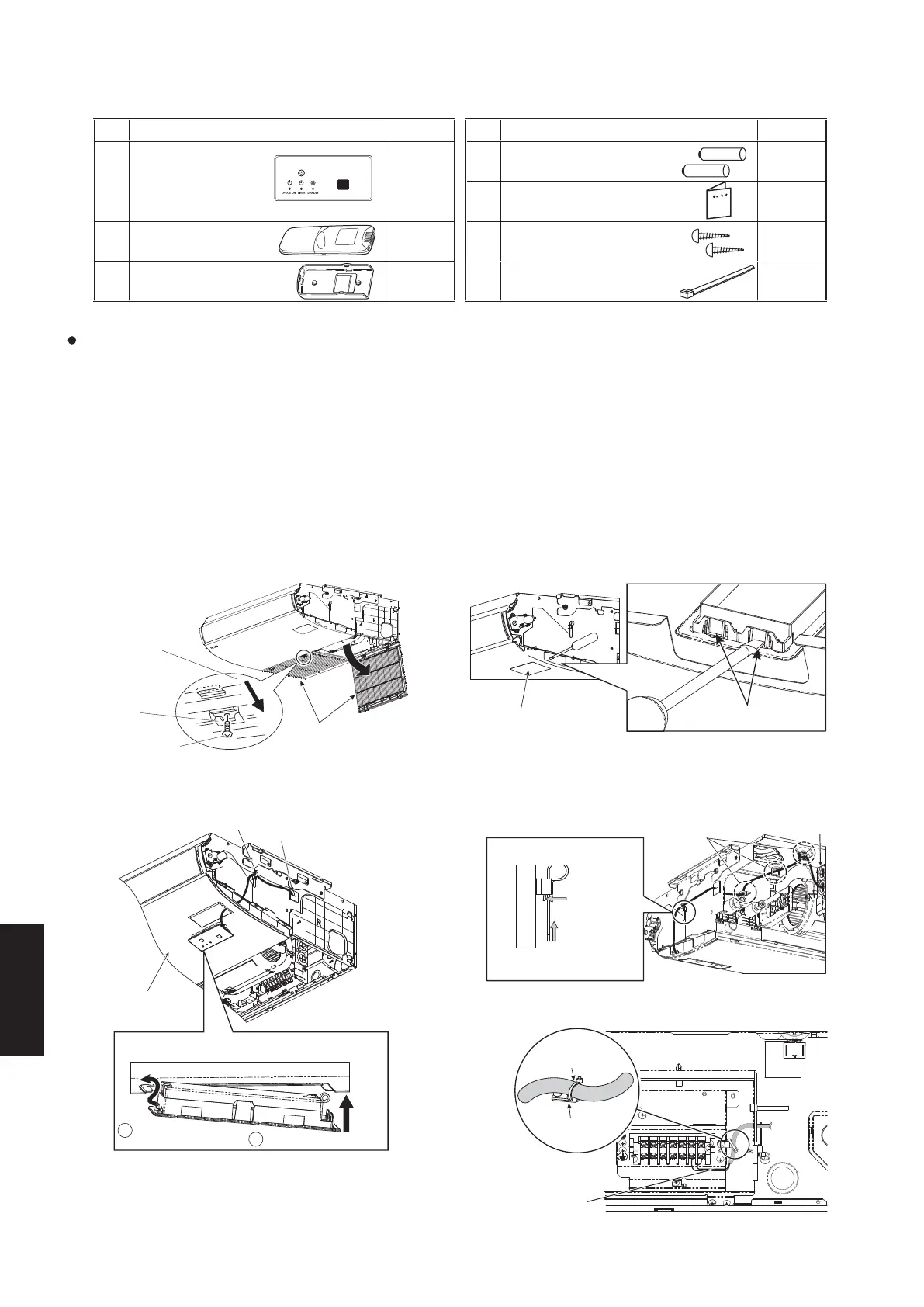

1. Accessories
2. Installing the Receiver
(1)
(2)
Remove the screw, and slide the latch to open the air-intake grille. (Fig. 8-36)
Insert a flat-head screwdriver from the side, and remove the cover while pressing down on the two cover tabs. (Fig. 8-37)
(3) Route the remote control wiring through the panel, and mount the receiver into the panel holes. (Fig. 8-38)
(4) Route the remote control wiring through the adjustable clamper, and draw in the wire from the remote control wiring inlet
to the inside of the indoor unit. (Fig. 8-38) (See Fig. 8-39 for how to loosen the adjustable clamper.)
(5) Route the remote control wiring through the three saddles, and draw the wire into the electrical box. (Fig. 8-39)
(6)
(7)
Connect the remote control wiring to the terminal board, route through the cable tie (accessory) to the holding clamp,
and secure the remote control wiring. (Fig. 8-40)
* Draw in the power wire and remote control wiring separately.
Mount the side cover, and close the air-intake grille.
Ceiling Suspended Model
Fig. 8-36
Fig. 8-38
Fig. 8-37
Fig. 8-39
Fig. 8-40
Receiver
Remote Control
Dry-cell Batteries
Users Manual
No. No.Accessories AccessoriesQuantity Quantity
1
1
1
2
31
Truss Self-Tapping Screws
4 Ć 16
4
5
6
7 Cable tie
Remote Control Holder
2
1
2
1
Remote control
wiring
2
Press in the receiver
Adjustable clamper
Panel
Remote control wiring inlet
Mounting the Receiver
1
Catch onto the tab
Electrical box
Saddle
Loosening the
adjustable clamper
Stopper
Loosen the clamper while
pressing the stopper.
Cable tie
(accessory)
Holding clamp
Screw
Latch
Slide
Cover
Air-intake grille
Cover tabs
SM830231-02īSingleī꬧å·.indbīīī30SM830231-02īSingleī꬧å·.indbīīī30 2014/09/09īīī21:22:242014/09/09īīī21:22:24
