Optional Controller (Remote Controller)
Wireless Remote Controller CZ-RWSU2 / CZ-RWST2 / CZ-RWSL2
/ CZ-RWSC2 / CZ-RWSY2 / CZ-RWSK2 / CZ-RWST3

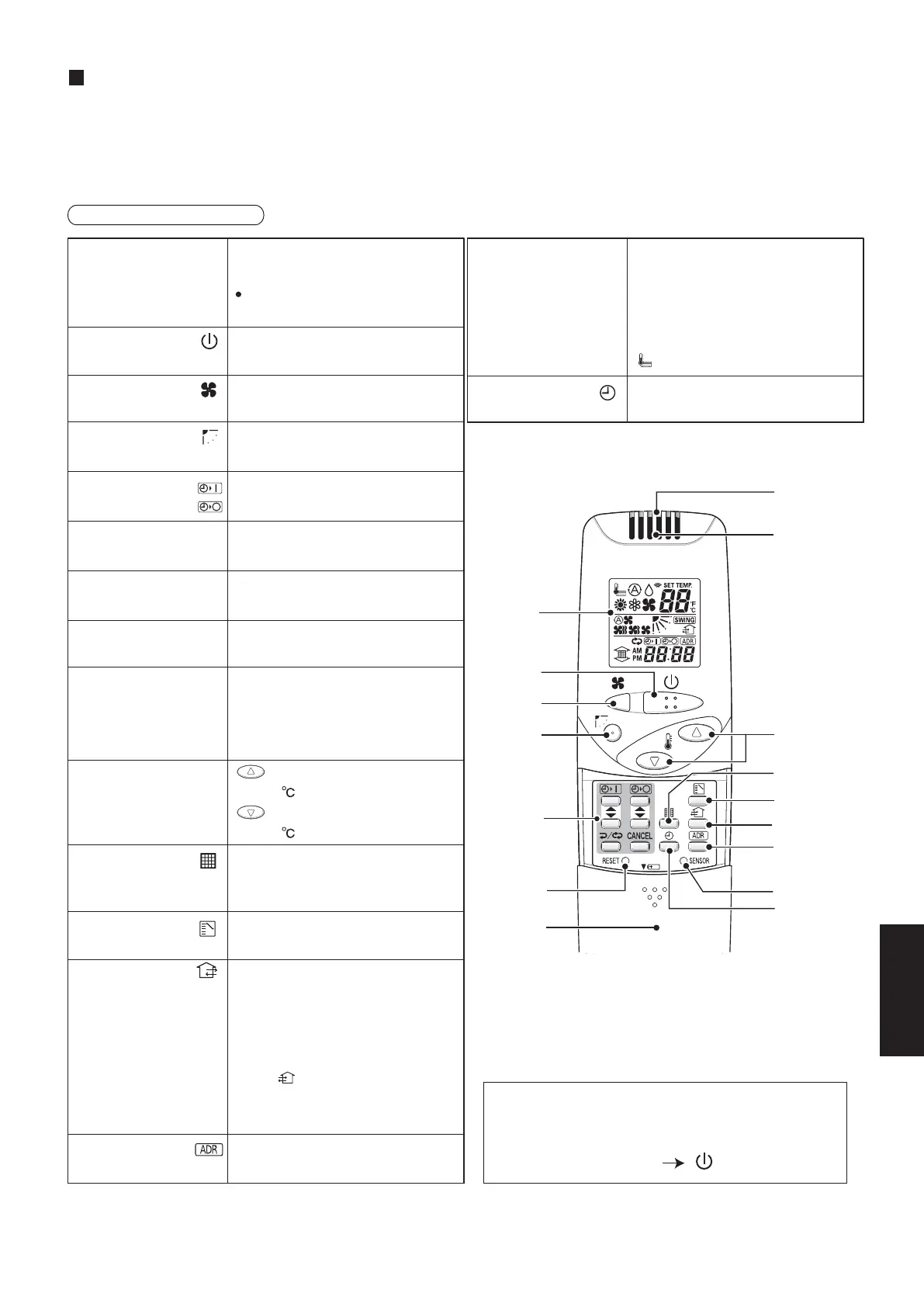

8-1. Names and Functions
1. Operation Display
Displays the operation status.
(The figure shows all the statuses.)
2. Start/Stop
button
Pressing this button once starts and
pressing again stops the operation.
The auto-flap display may be different,
depending on the installed unit.
3. Fan speed
button
4. Swing/Wind
Direction button
5. Timer setting
button
Use for operating with a timer.
6. Reset button
Use this button after changing the
batteries.
7. Cover
Press at the top center and then
slide down.
8. Transmitter
12. Mode Select
button
Press to switch the operation mode.
14. Address
button
16. Clock button
Use this when setting the clock.
13. Ventilation
button
Use this when connected to an
aftermarket fan. Pressing this button
starts and stops the fan. When the
air conditioner is started or stopped,
the fan starts or stops at the same
time. ( appears on the display of
the remote control when the fan is
operating.)
15. Sensor button
Use this when switching to detect
the temperature at the remote
control. At shipping the default
setting is set to detect the
temperature at the unit. At this time
is shown on the display.
9. Remote control
sensor
Detects the temperature at the
remote controller when detection
has been switched to the remote
control by the sensor button.
11. Filter button
CZ-RWSC2
Press to turn off the filter lamp on
the receiver.
10. Temperature
setting buttons
raises the temperature setting
1 at a time.
lowers the temperature setting
1 at a time.
REMOTE CONTROL
From this page on the names of remote control
buttons will be abbreviated as the illustration of
the ābuttonā.
E.g.: Start/Stop button
One remote control can control a group of up to eight indoor units.
