Panasonic CZ-KPY3A series Service Manual

7-3
7
<Procedure of CZ-RTC3>
CZ-RTC3
START
[]
20:30 (THU)

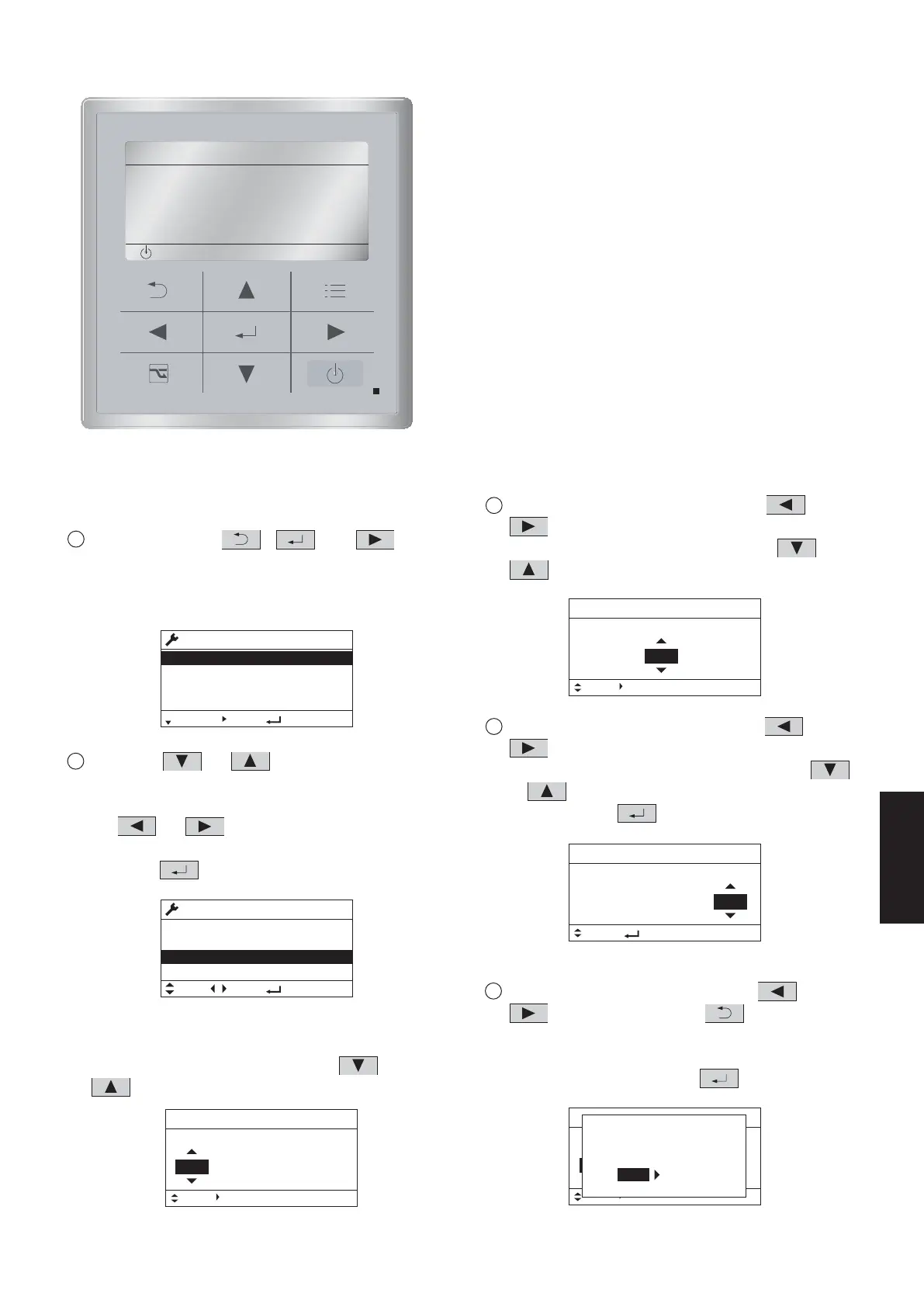

Fig. 7-2
1
Keep pressing the , and
buttons simultaneously for 4 or more seconds.
The “Maintenance func” screen appears on the
LCD display.
2
Press the or button to see each
menu.
If you wish to see the next screen instantly, press
the or button.
Select “7. Simple settings” on the LCD display and
press the button.
The “Simple settings” screen appears on the LCD
display.
Select the “Unit no.” by pressing the or
button for changes.
Maintenance func
1. Outdoor unit error data
2. Service contact
3. RC setting mode
4.Test run
Sel. Page [ ] Confirm
20:30 (THU)
Maintenance func
5. Sensor info.
6. Servicing check
8. Detailed settings
Sel. Page [ ] Confirm
20:30 (THU)
7. Simple settings
Simple settings
Unit no. Code no. Set data
013-1 0001
Sel. Next
20:30 (THU)
3
Select the “Code no.” by pressing the or
button.
Change the “Code no.” by pressing the or
button.
4
Select the “Set data” by pressing the or
button.
Select one of the “Set data” by pressing the
or button.
Then press the button.
5
Select the “Unit no.” by pressing the or
button and press the button.
The “Exit simple settings and restart?” (Simple
setting-end) screen appears on the LCD display.
Select “YES” and press the button.
Simple settings
Unit no. Code no. Set data
3-1 0001
Sel. Next
20:30 (THU)
01
[ ] Confirm
Simple settings
Unit no. Code no. Set data
3-1
Sel.
20:30 (THU)
01 0002
Simple settings
Unit no. Code no. Set data
ALL
Sel. Next
20:30 (THU)
01 0002
Exit simple settings
and restart?
NOYES
