10
RQT9272
Before connection, turn off the mains for all connected equipment and read the appropriate operating
instructions.
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 3 BEFORE CONNECTION.

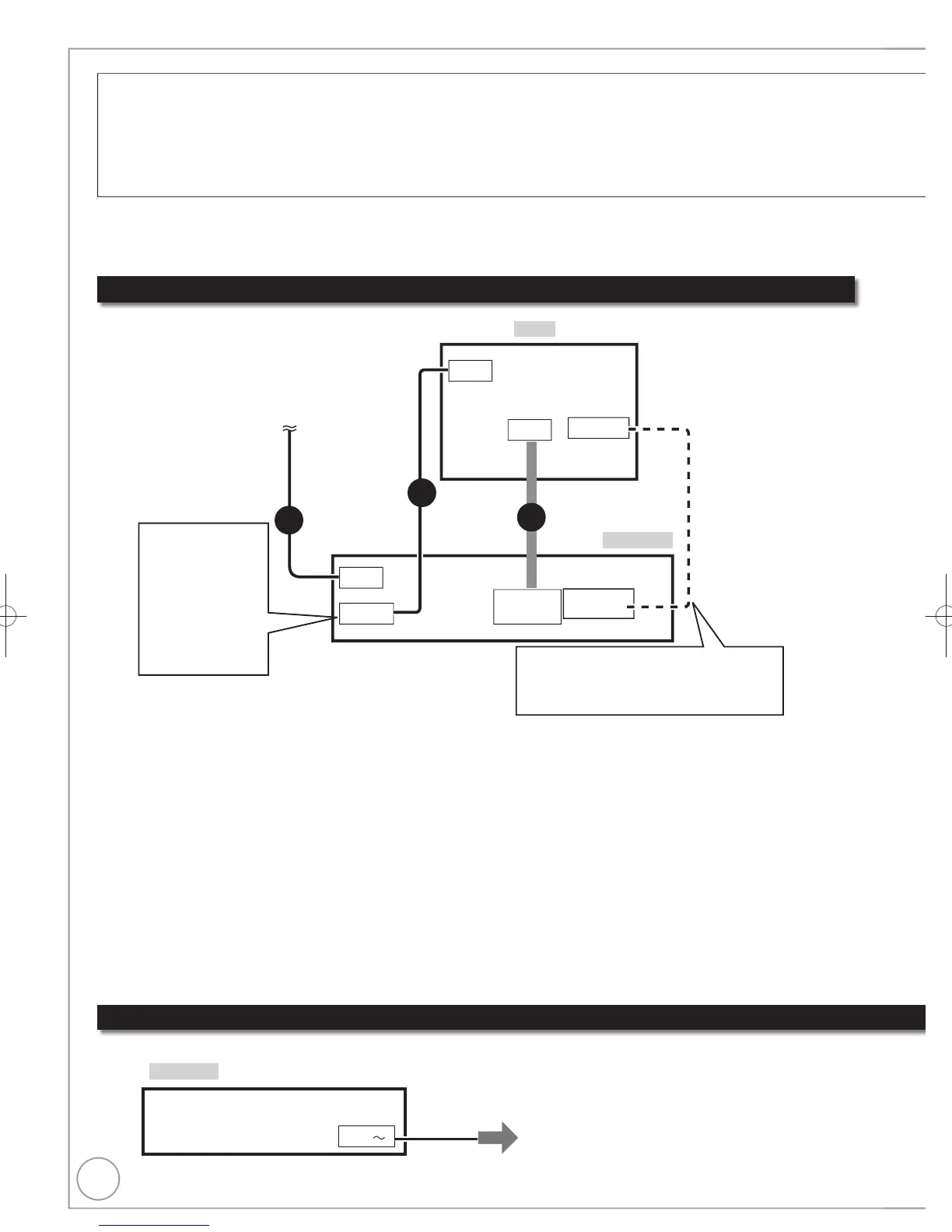

Connecting to a Television only
Aerial cable to the “RF IN” on the unit.
RF coaxial cable (included) from the “RF OUT” on the unit to the “RF IN” on the TV.
21-pin Scart cable from the “AV1 (TV)” on the unit to the “AV” on the TV.
Connecting AC mains lead (included)
Connect only after all other connections are complete.
Basic Connection
The RF coaxial cable
cannot be used for
showing pictures from
the unit. The unit must
be connected using
another method, e.g.
21-pin Scart cable to
show pictures from the
unit on the television
set.
To the aerial
To household
mains socket
Use of the RF coaxial cable
Keep the RF coaxial cables as far away as possible from other cables.
Do not roll up the RF coaxial cables.
To Next Page
