Adding a Digital Satellite Receiver: Connecting to a Television and a Digital Satellite
Receiver
Additional Connection
12, 74

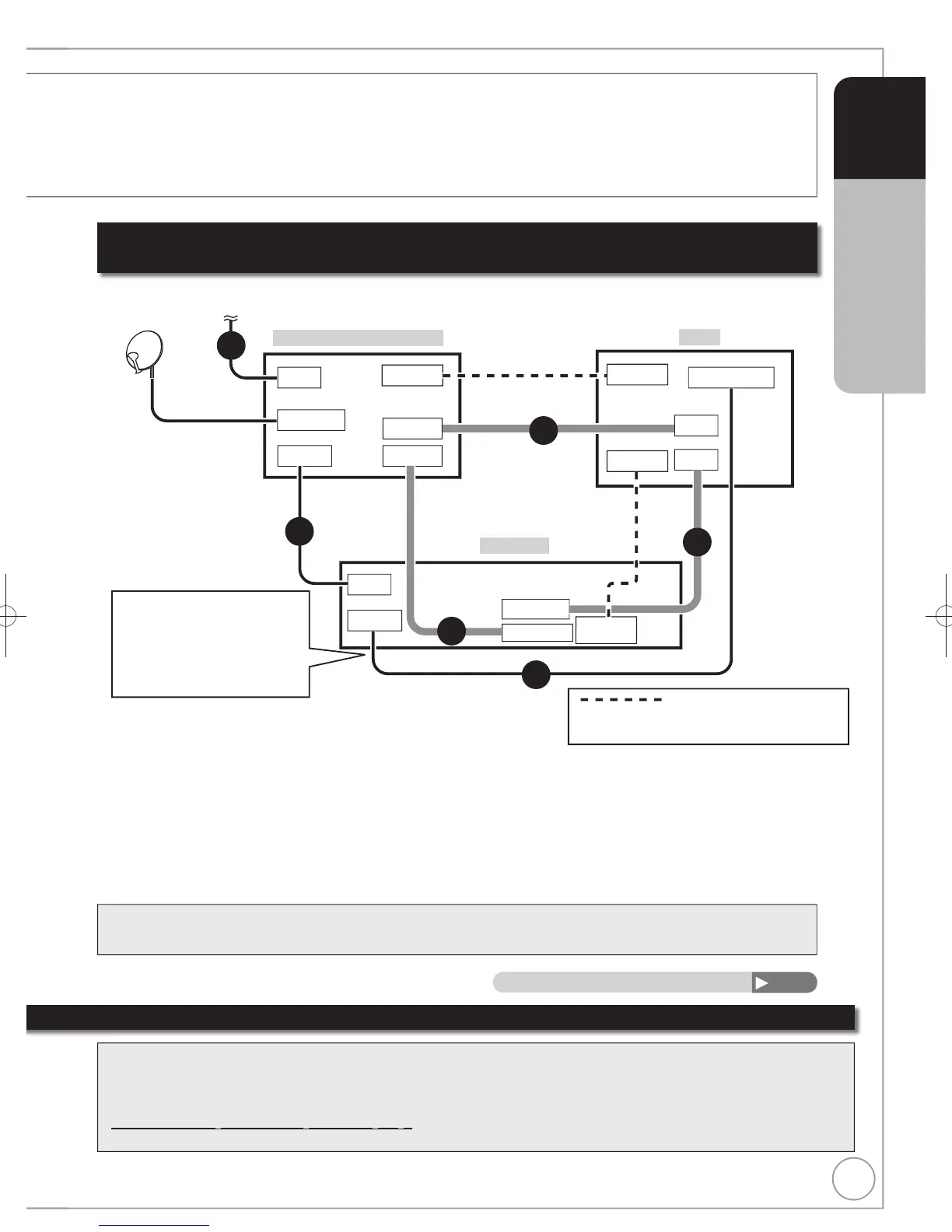

 Aerial cable to the “RF IN” on the digital satellite receiver.
 RF coaxial cable from the “RF OUT” on the digital satellite receiver to the “RF IN” on the unit.
 RF coaxial cable (included) from the “RF OUT” on the unit to the “RF IN/AERIAL” on the TV.
 21-pin Scart cable from the “AV/VCR” on the digital satellite receiver to the “AV2 (EXT)” on the
unit.
 21-pin Scart cable from the “AV1 (TV)” on the unit to the “AV” on the TV.
 21-pin Scart cable from the “AV/TV” on the digital satellite receiver to the “AV” on the TV.
After completing the above connections, proceed to the TV Tuning ( 13).
To record digital satellite programmes
Refer to “Recording from a Digital Satellite Receiver” ( 29)
Digital satellite receiver
AV1(TV)
This unit
TV
RF IN/AERIAL
RF IN
AV2 (EXT)
RF OUT
RF IN
DISH INPUT
RF OUT
AV
AV/TV
AV/VCR
AV
HDMI IN
HDMI IN
HDMI OUT
HDMI
AV OUT
HDMI cable
1
2
3
4
5
6
You can enjoy high-quality picture
by adding the HDMI cable connection12
The RF coaxial cable cannot be
used for showing pictures from the
unit. The unit must be connected
using another method, e.g. 21-pin
Scart cable to show pictures from
the unit on the television set.
To the aerial
Digital satellite antenna
Quick Start Guide STEP 2
Using a fully wired 21-pin Scart cable
– You can use a variety of Q Link functions by connecting the unit to a Q Link compatible television ( 42).
– You can enjoy high-quality viewing by connecting the unit to an RGB compatible television.
“AV1 Output” in the Setup menu is set to “RGB 1 (without component)” or “RGB 2 (without component)” ( 71)
– “AV2 Input” settings in the Setup menu ( 71)
When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This unit consumes a small amount of power, even
when it is turned off.
[approx. 0.9 W (“Power Save” is set to “On” )]
